Yamaha F60A - Checking the Shift;Throttle Cables; Checking the Steering System

GEN
INFO
General information
15
69W3D1X
NOTE:
The optimum mounting height is affected by
the combination of the boat and the outboard
motor. To determine the optimum mounting
height, test run the outboard motor at differ-
ent heights.
2. Check that the clamp brackets are
secured with the clamp bolts.

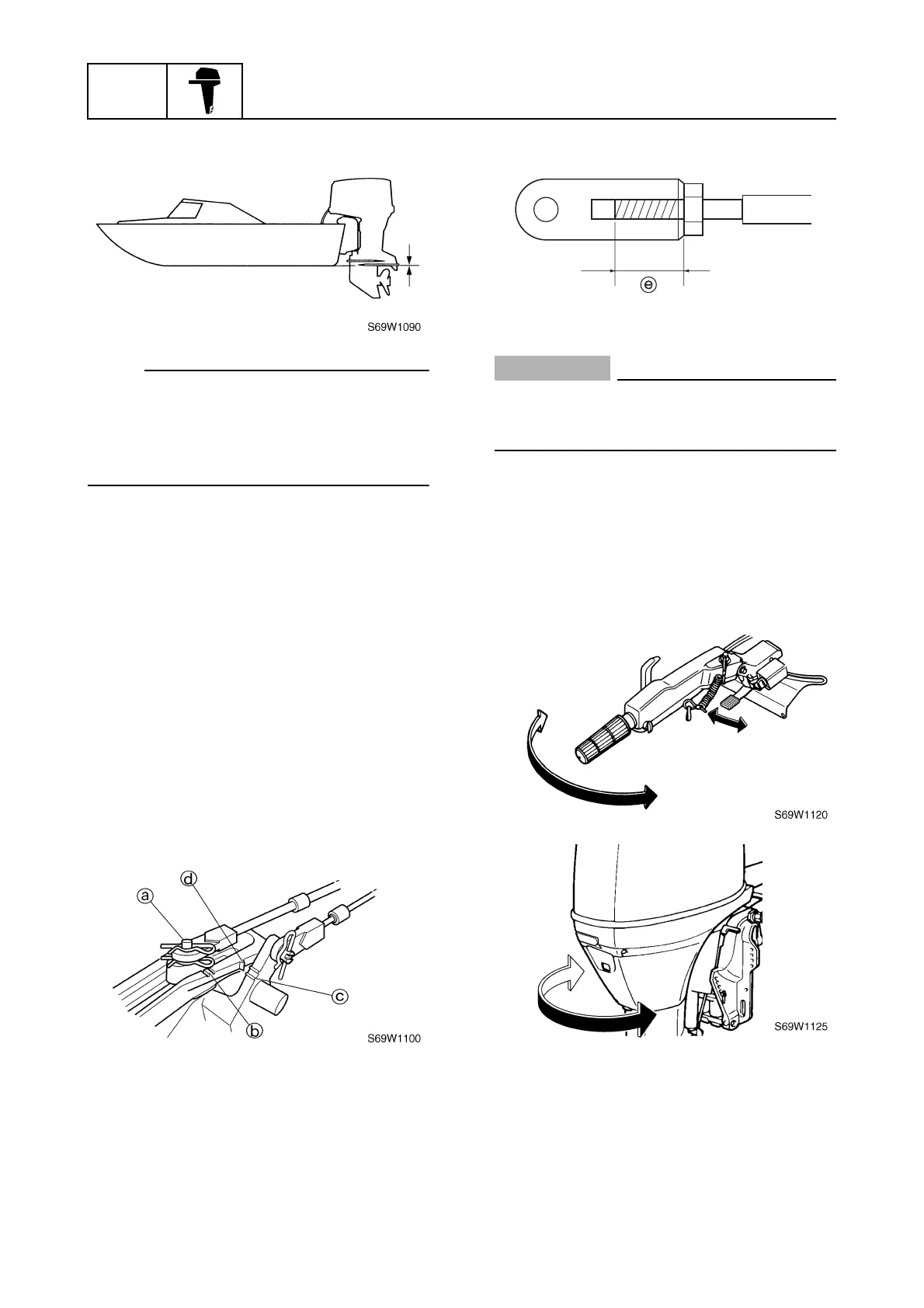

Checking the shift/throttle cables
1. Set the remote control lever or shift lever
to the neutral position and fully close the
throttle lever or throttle grip.
2. Check that the set pin
a
is aligned with
the alignment mark
b
. Adjust if neces-
sary.
3. Check that the alignment mark
c
is
aligned with the mark
d
. Adjust if neces-
sary.
CAUTION:
The shift/throttle cable joint must be
screwed in a minimum of 8.0 mm (0.31 in)
e
.
Checking the steering system
1. Check the steering friction for proper
adjustment.
2. Check that the steering operates
smoothly.
È
Tiller handle model
É
Remote control model
3. Check that there is no interference with
wires or hoses when the outboard motor
is steered.
S69W1110
È
É
