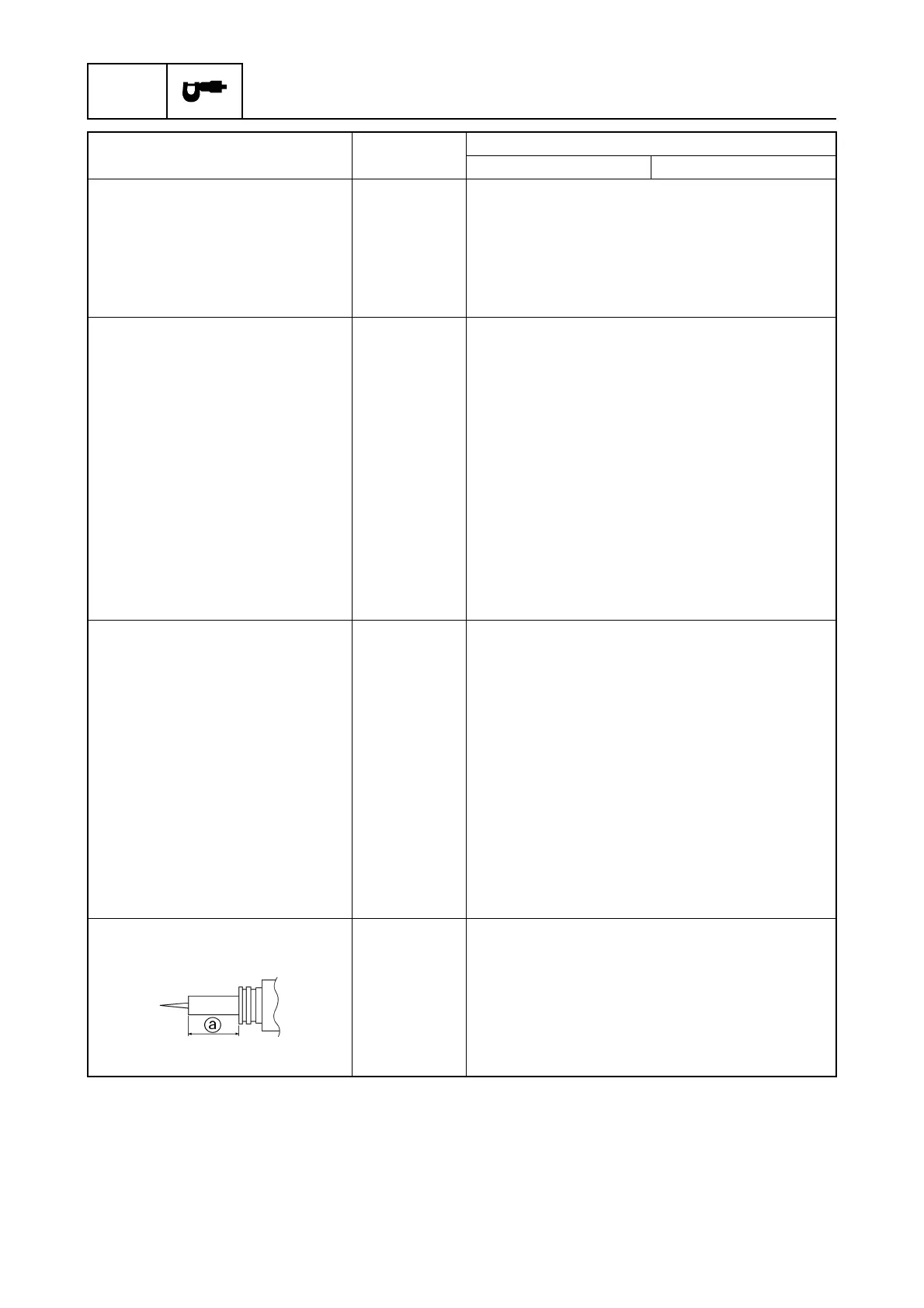

Specifications
25
69W3D1X
Ignition control system
Oil pressure switch
ON
↔
OFF
kPa
(kgf/cm
2
, psi)
29.4–58.8 (0.294–0.588, 4.181–8.361)
Thermoswitch (Gy/B – B)
OFF
→
ON °C (°F) 76–84 (169–183)
ON
→
OFF °C (°F) 63–77 (145–170)
Starter motor
Type Bendix
Output kW 1.1
Cranking time limit Second 30
Brushes
Standard length mm (in) 17.0 (0.67)
Wear limit mm (in) 10.0 (0.39)
Commutator
Standard diameter mm (in) 33.0 (1.30)
Wear limit mm (in) 32.0 (1.26)
Mica
Standard undercut mm (in) 0.5–0.8 (0.02–0.03)
Wear limit mm (in) 0.2 (0.01)
Charging system
Fuse A 20
Lighting coil output peak
voltage (G – G)
at cranking (unloaded) V 14.0
at 1,500 r/min (unloaded) V 38
at 3,500 r/min (unloaded) V 86
Lighting coil resistance
(*1)
(G – G)
Ω
1.2–1.8
Rectifier Regulator output
peak voltage (R – B)
at 1,500 r/min (unloaded) V 22
at 3,500 r/min (unloaded) V 27
Enrichment control system
Prime Start
Plunger extended length
a
mm (in) 24.6 (0.97)
(*1)
The figures are for reference only.
Item Unit
Model
F60AEHT F60AET
