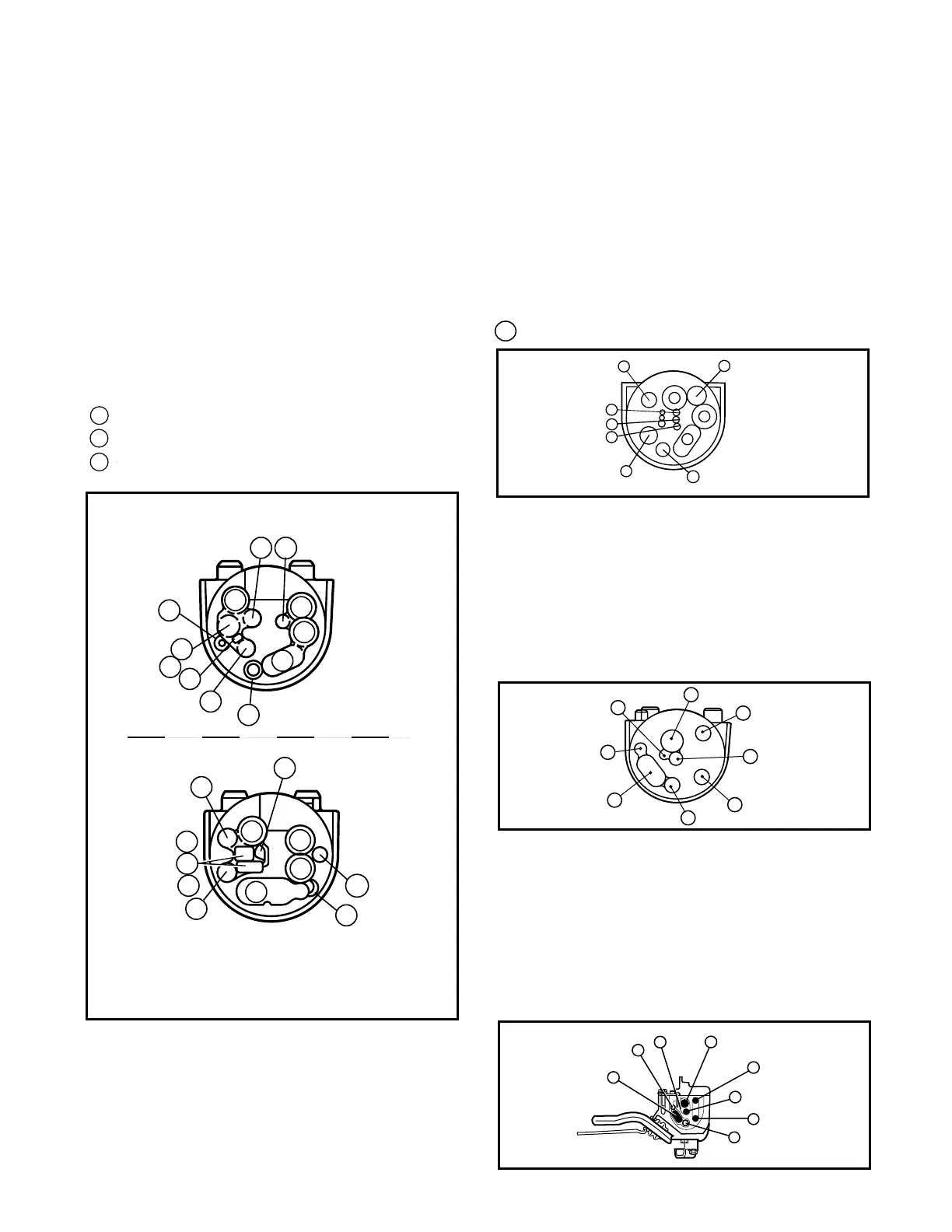

Outboard Rigging Guide - 2001 V4 & V6 Rigging Tube Grommet
150~250, 3.1L, 2.6L, HPDI, OX66
Rigging Tube Grommet
1 Shift Cable
2 Throttle Cable
3 10 Pin Main Harness
4 & 5 Oil Warning and Trim Gauge Harness
(combined for '96)
6 Remote Oil Tank Lead
7 Battery Cable Harness
8 Oil Hose
9 Fuel Hose
Speedometer Hose
Water Pressure
Misc. Water Temperature
V4 Rigging Tube Grommet
1 Throttle Cable
2 Shift Cable
3 Main Harness
4 Oil Warning Lead
5 Remote Oil Tank Lead
6 Trim Gauge Lead
7 Battery Leads w/Isolator Lead
8 Oil Hose
9 Fuel Hose
10 Speedometer Hose
F80/F100 Tube Grommet
1 Throttle Cable
2 Shift Cable
3 Main Harness
4 Trim Gauge & Oil Warning Lead
5 Battery Leads
6 Fuel Hose
7 Speedometer Hose
8 Water Temperature & Water Pressure Sensor
F115 Tube Grommet
1 Throttle Cable
2 Shift Cable
3 Main Harness
4 Trim Gauge & Oil Warning Lead
5 Battery Leads
6 Fuel Hose
7 Speedometer Hose
8 Water Temperature & Water Pressure Sensor
