RIGGING

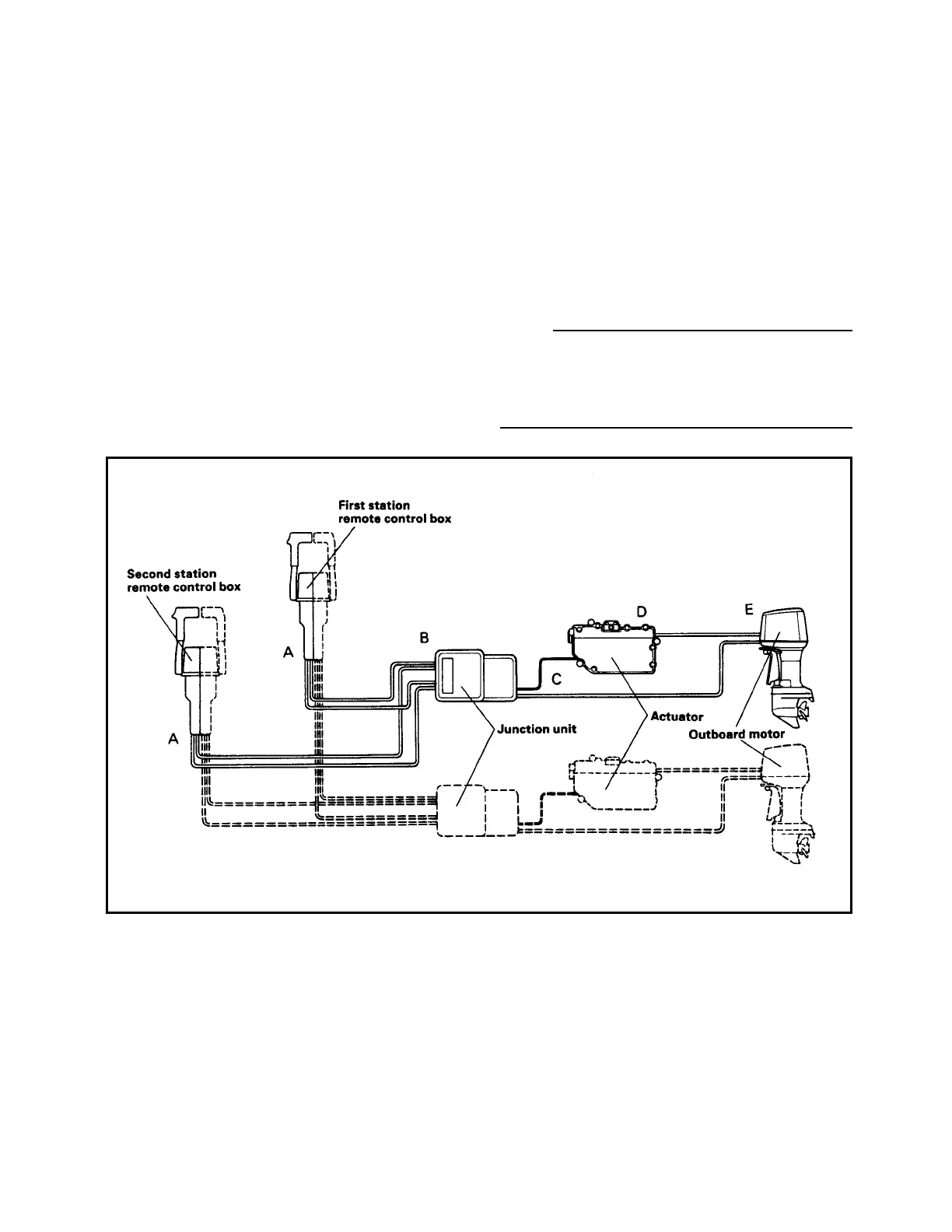

CONNECTING THE CABLES-SUMMARY
Connecting the cables in the following order:
A: 704 remote control boxes
B: Remote control box cables to junction unit
C. Throttle cable to junction unit
D. Shift cable to actuator
E. Outboard motor cable ends
NOTE:
Before connecting the cables, set the remote
control box and the outboard to the neutral
position for the shift cable and to the “fully
closed” position for the throttle cable.
10A-16
