10B-20
Outboard Rigging Guide - 2001

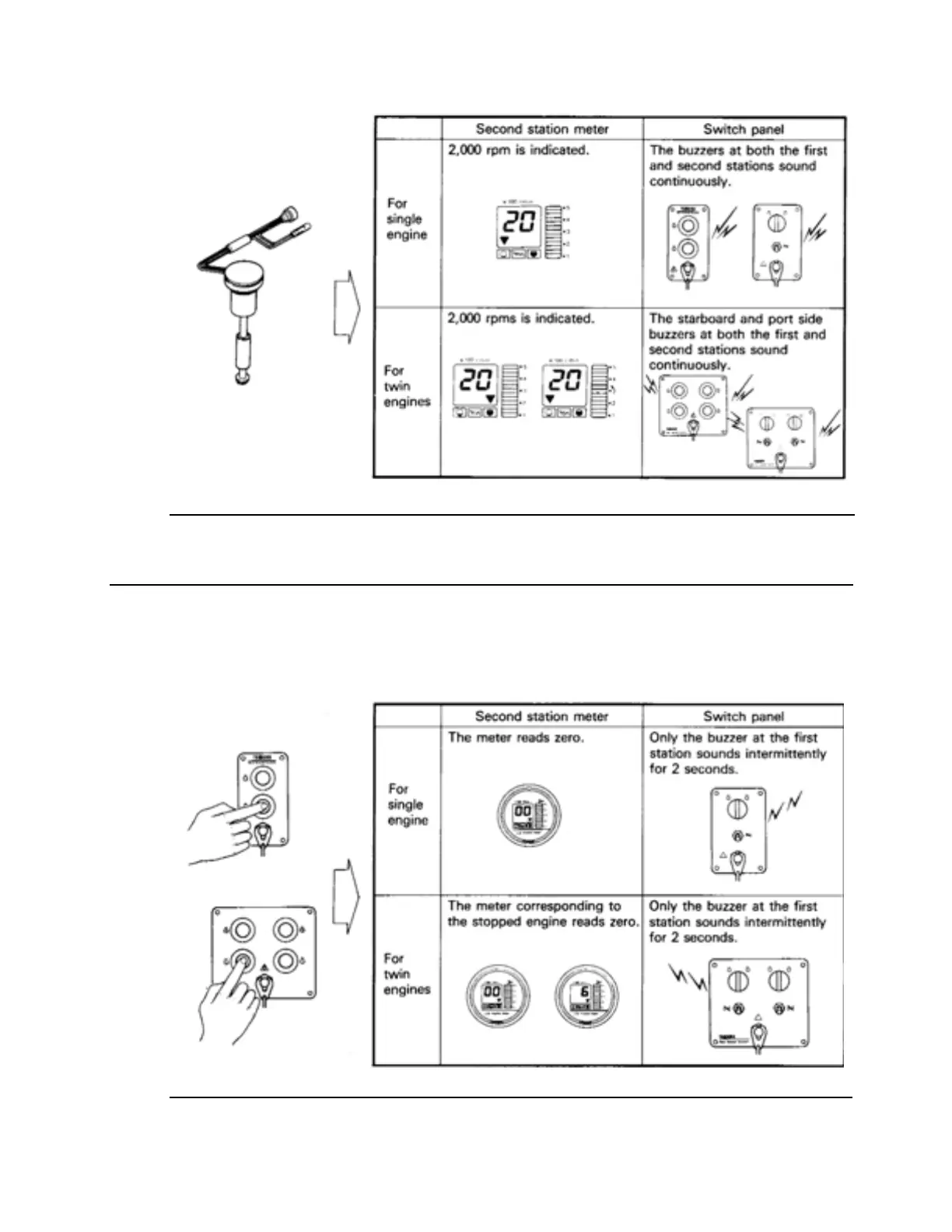

NOTE:
In the case of a twin engine system, the buzzers for both the starboard and port side engines
sound when the shift lever is in either forward or reverse. When the shift lever is placed in neutral,
the only buzzer that sounds is for the engine whose oil level is low.
• The warning ends when engine oil is replenished. (Always turn off the main switch when
replenishing engine oil.)
6. Stopping the engine at the second station
(Stop switch ON)
NOTE:
When stopping the engine from the second station, press the stop switch for at least 1 second to
completely stop the rotation of the engine. If the stop switch is pressed only momentarily, the
stalled engine warning described above will activate.
5. Oil level warning
(Oil level sensor ON
To Next Page
