Yamaha F80 - F25 Remote Control Attachment Kit

7-14
Outboard Rigging Guide - 2001 F15/F25 Remote Control Attach. Kit
F25 REMOTE CONTROL ATTACHMENT KIT (65W-48501-00-00)
REF
NO PART NUMBER DESCRIPTION QTY.
1 91690-30320-00 Pin, Spring 1
2 65W-44142-00-00 Seal 1
3 91690-30320-00 Pin, Spring 1
4 90387-06M29-00 Collar 1
5 90201-06M31-00 Washer, Plate 1
6 97595-06525-00 Bolt, With Washer 1
7 65W-44192-00-00 Joint, Rod 1 1
8 90201-05M06-00 Washer, Plate 2
9 90468-10005-00 Clip 1
10 90468-18008-00 Clip 1
11 663-48344-00-00 Cable End, Remote Control 2
12 90468-18008-00 Clip 2
13 6H3-48538-00-00 Clamp, Cable 1 1
14 65W-42725-10-00 Grommet 1
15 65W-26326-00-00 Grommet 1
16 6H1-42726-10-00 Grommet 1
17 6G1-42725-00-00 Grommet 1
18 65W-42726-00-00 Grommet 1
19 65W-82590-00-00 Wire Harness Assembly 1
Installation

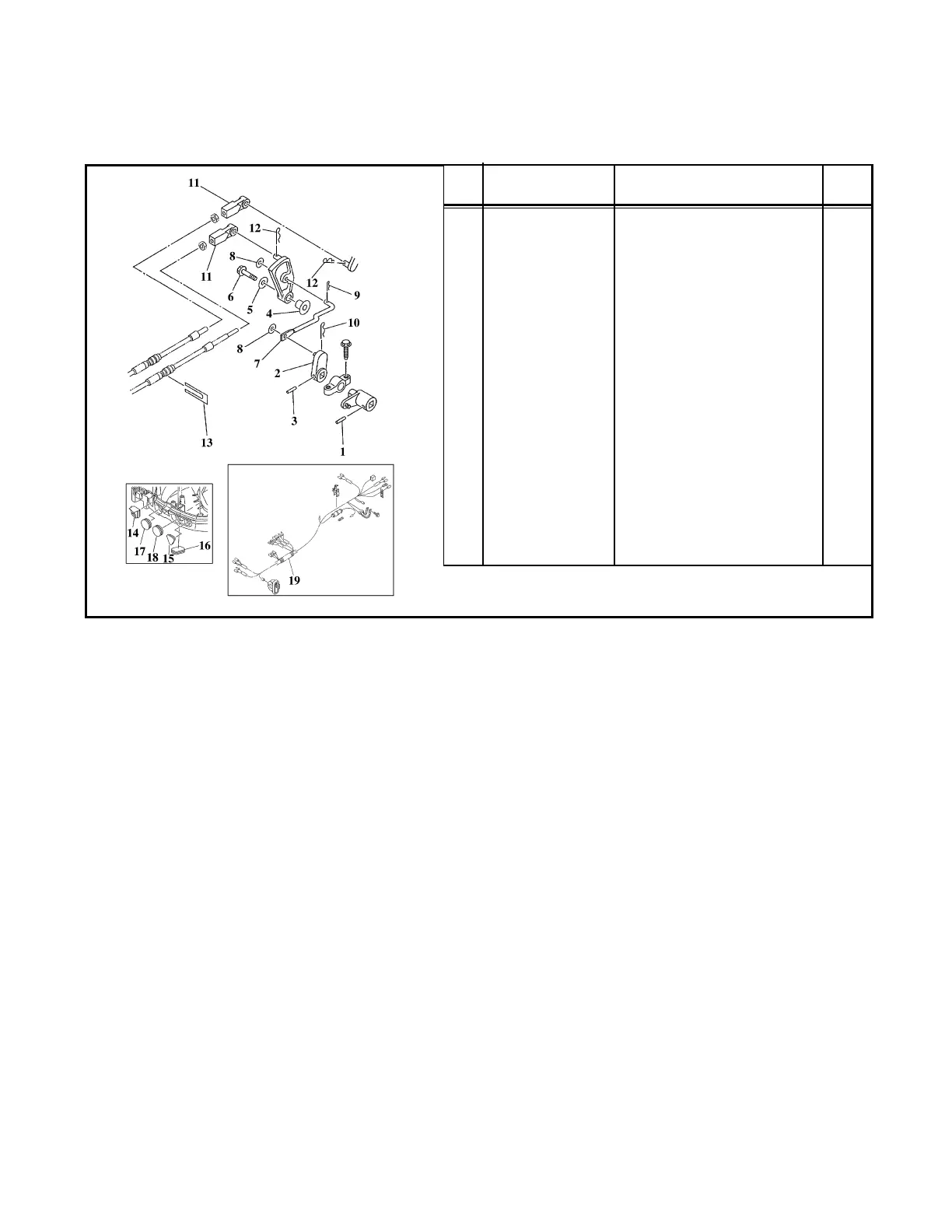

(Refer to illustration on page 7-10)
A. Install the remote control as shown in the
next page illustration.
B. Make sure the remote control cable end is
screwed in more than 8mm (0.31in).
C. Connect the throttle (1) when the throttle is
fully closed and connect the shift cable (2)
when the outboard is in neutral.
*Reusable Parts
• Component parts
