Yamaha F80 - Second Station Switch Panel

10B-11
Outboard Rigging Guide - 2001
The switch panel of the second station has one
start button (two start buttons on the twin
engine model), one stop button (two stop but-
tons on the twin engine model) for engine con-
trol and one emergency stop switch. An alarm
buzzer on the rear of the switch panel sounds
if the warning system is activated.

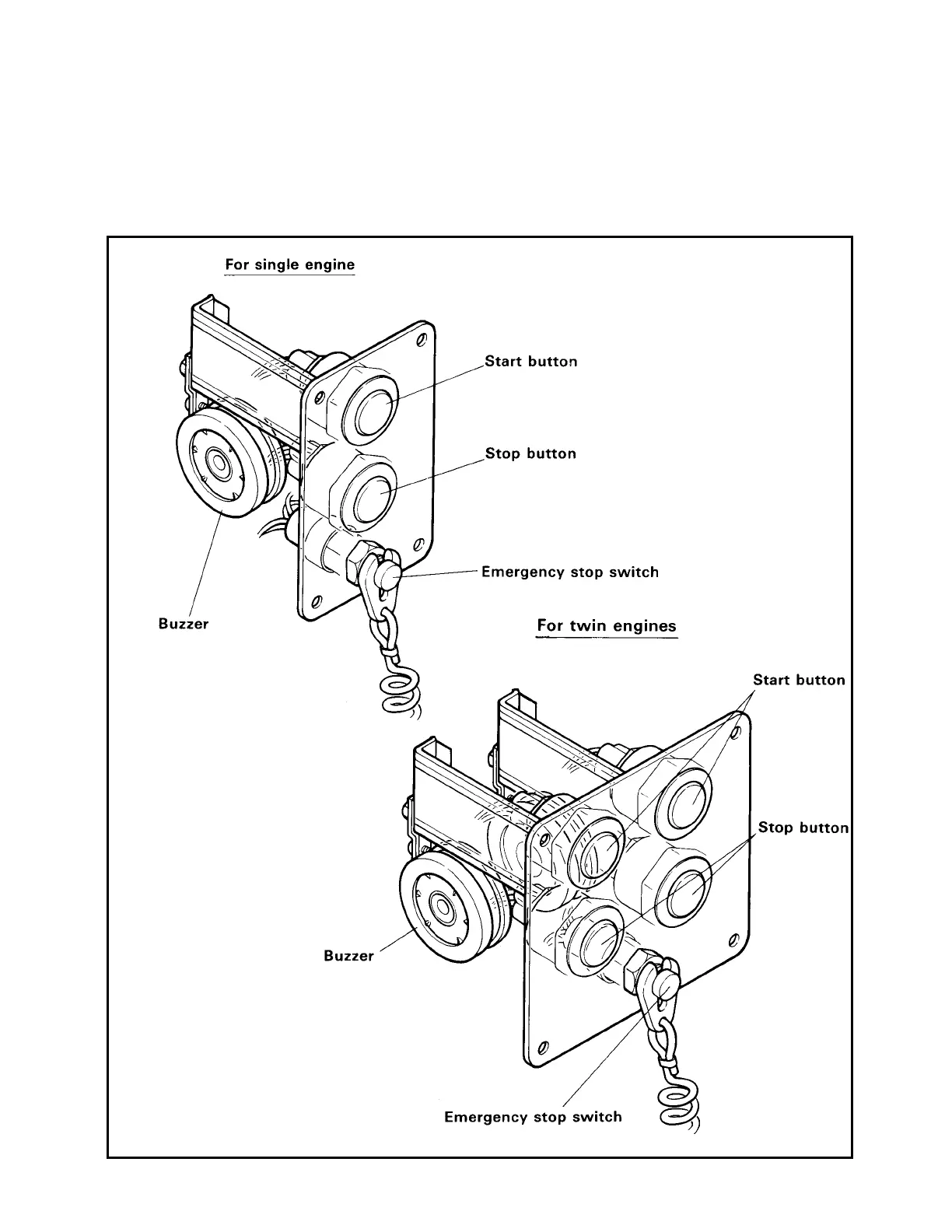

SECOND STATION SWITCH PANEL
