REF

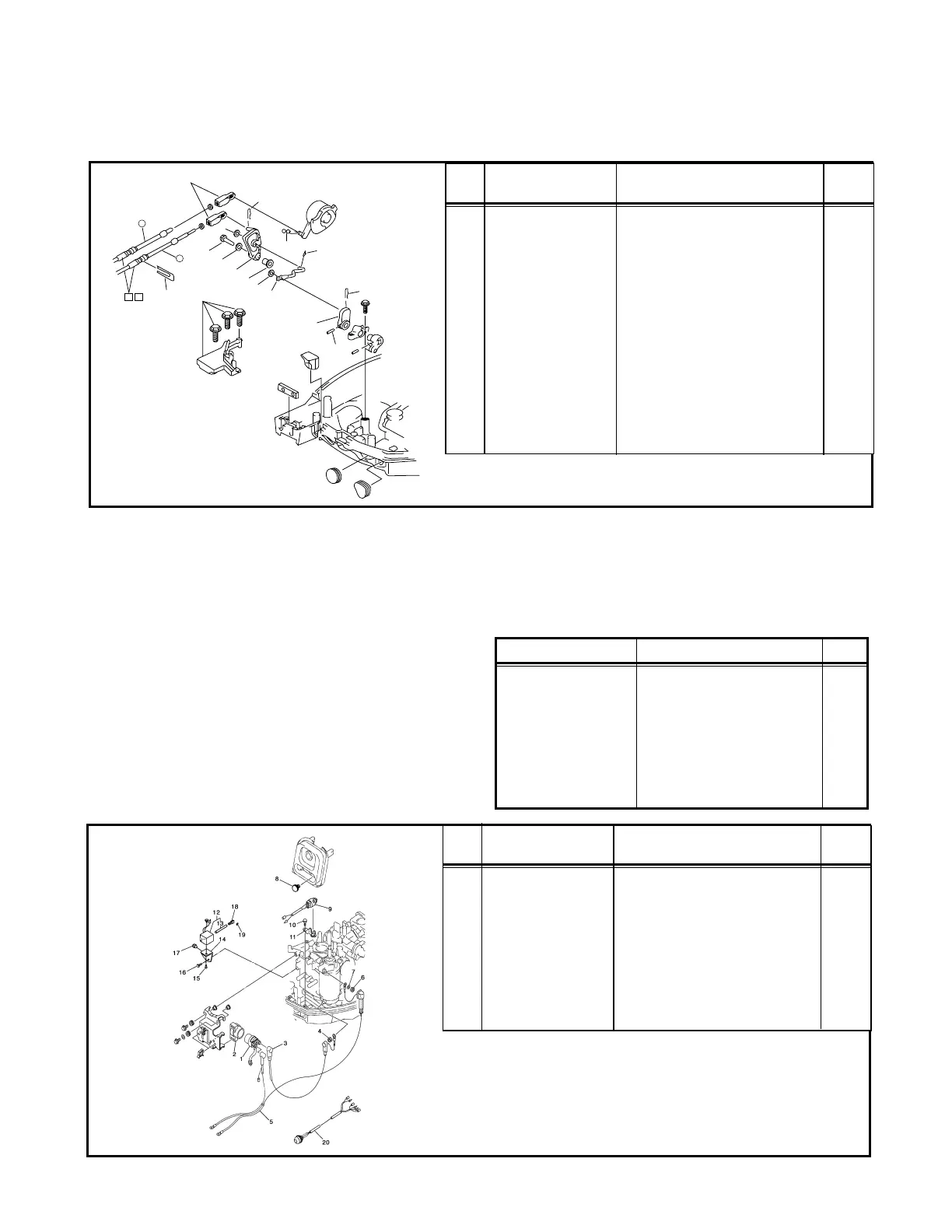

NO PART NUMBER DESCRIPTION QTY.
1 65W-44142-00-00 Seal Joint 1
2 91690-30320-00 Pin, Spring 1
3 65W-44125-00-00 Lever, Shift Rod 1
4 90387-06M29-00 Collar 1
5 90201-06M31-00 Washer, Plate 1
6 97595-06525-00 Bolt, with Washer 1
7 66M-44192-00-00 Joint, Rod 1 1
8 90201-05M06-00 Washer, Plate 1
9 90468-18008-00 Clip 1
10 90468-10005-00 Clip 1
11 663-48344-00-00 Cable End, Remote Control 1
12 90468-18008-00 Clip 2
13 6H3-48538-00-00 Clamp, Cable 1 1
Installation
(Refer to illustration on page 7-10)
A. Install the remote control as shown in the
next page illustration.
B. Make sure the remote control cable end is
screwed in more than 8mm (0.31in).
C. Connect the throttle (1) when the throttle is
fully closed and connect the shift cable (2)
when the outboard is in neutral.
*Reusable Parts
F15 Additional Parts Required
The following information would allow the
engine to be started and stopped from a 703 con-
trol box.
• Component parts
PART NUMBER DESCRIPTION QTY
66M-82590-00-00 Wire Harness Ass’y1
66M-42725-20-00 Grommet
(for a wire harness ass’y) 1
6G1-42725-00-00 Grommet
(instead of a starting
switch ass’y)
65W-81870-00) 1
REF
NO PART NUMBER DESCRIPTION QTY.
12
66M-86111-00-00 Coil, Solenoid 1
13 66M-86116-00-00
Wire Pull 1
14 66M-86112-00-00 Stay, Solenoid 1
15 97980-05208-00 Screw with Washer 2
16 97595-06516-00 Bolt 2
17 90480-10M13-00 Grommet 1
18 66M-86117-00-00 Hook 1
19 93210-03261-00 O-ring 1
• Component parts
