Yamaha F80 - F15 Tiller Handle Kit

6-6
Outboard Rigging Guide - 2001 F15 Tiller Handle Kit

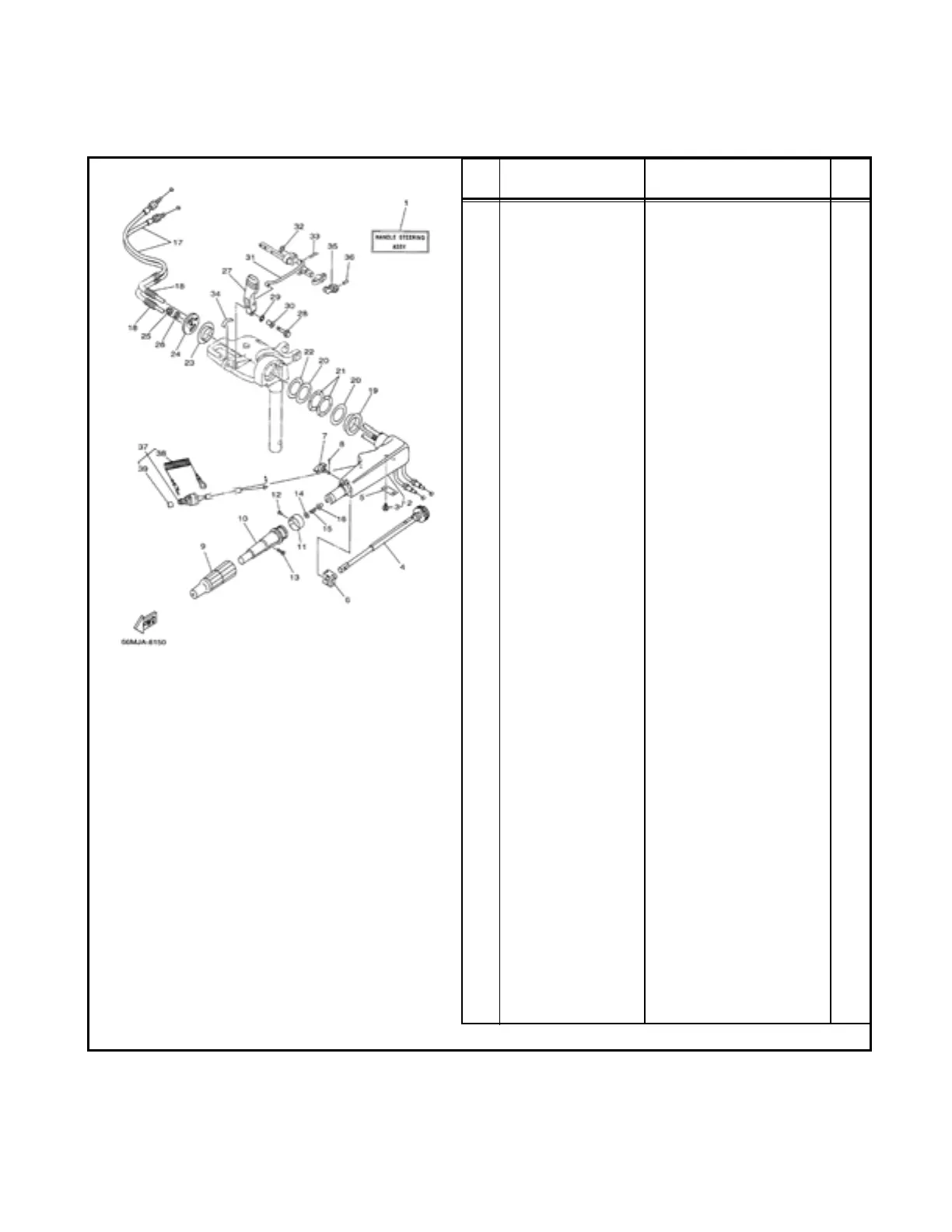

F15 TILLER HANDLE KIT (66M-W0084-00-4D)
REF
NO PART NUMBER DESCRIPTION QTY.
1 66M-W0084-00-4D Handle Steering Ass’y1
2 65W-42101-00-4D Handle, Steering 1
65W-42101-01-4D Handle, Steering 1
3 90109-06M86-00 • Bolt 2
4 65W-42138-00-00 Lever, Throttle 1
5 65W-42159-00-00 Stay 1
6 6G1-42126-00-00 Friction, Steering Handle
Grip 1
7 65W-42125-00-00 Bolt, Friction Adjusting 1
8 91490-16010-00 Pin, Cotter 1
9 66M-42177-00-00 Rubber, Handle 1
10 66M-42119-00-00 Grip, Steering Handle 1
11 689-42137-20-00 Indicator, Throttle 1
12 90269-02M09-00 Rivet 1
13 90149-05M13-00 Screw 1
14 92903-10600-00 Washer, Plate 1
15 90501-23215-00 Spring, Compression 1
16 90386-08032-00 Bush 1
17 66M-26311-00-00 Cable, Throttle 1 2
18 90446-10M87-00 Hose 2
19 90386-40MA0-00 Bush 1
20 90201-43M00-00 Washer, Plate 2
21 90206-43M22-00 Washer, Wave 2
22 90202-43M57-00 Washer, Plate 1
23 90386-40M99-00 Bush 1
24 66M-42131-00-00 Cover, Handle Steering 1
66M-42131-01-00 Cover, Handle Steering 1
25 90185-08057-00 Nut, Self-locking 1
95780-10300-00 Nut, Flange 1
26 95380-08600-00 Nut 1
95380-10700-00 Nut 1
27 66M-44111-00-00 Handle, Gear Shift 1
28 97595-06530-00 Bolt, With Washer 1
29 90206-10M04-00 Washer, Wave 1
30 90387-06M78-00 Collar 1
31 66M-44124-00-00 Link, Shift Rod 1
32 92990-06200-00 Washer 1
33 90468-18008-00 Clip 1
34 6E0-44191-11-00 Indicator, Shift 1
35 65W-44173-00-00 Lever, Shift Control 1
36 9169030320-00 Pin, Spring 1
37 65W-82575-00-00 Engine Stop Switch Ass’y. 1
38 682-82556-00-00 • Stopper 1
39 689-8257Y-00-00 • Cap 1
• Component parts
