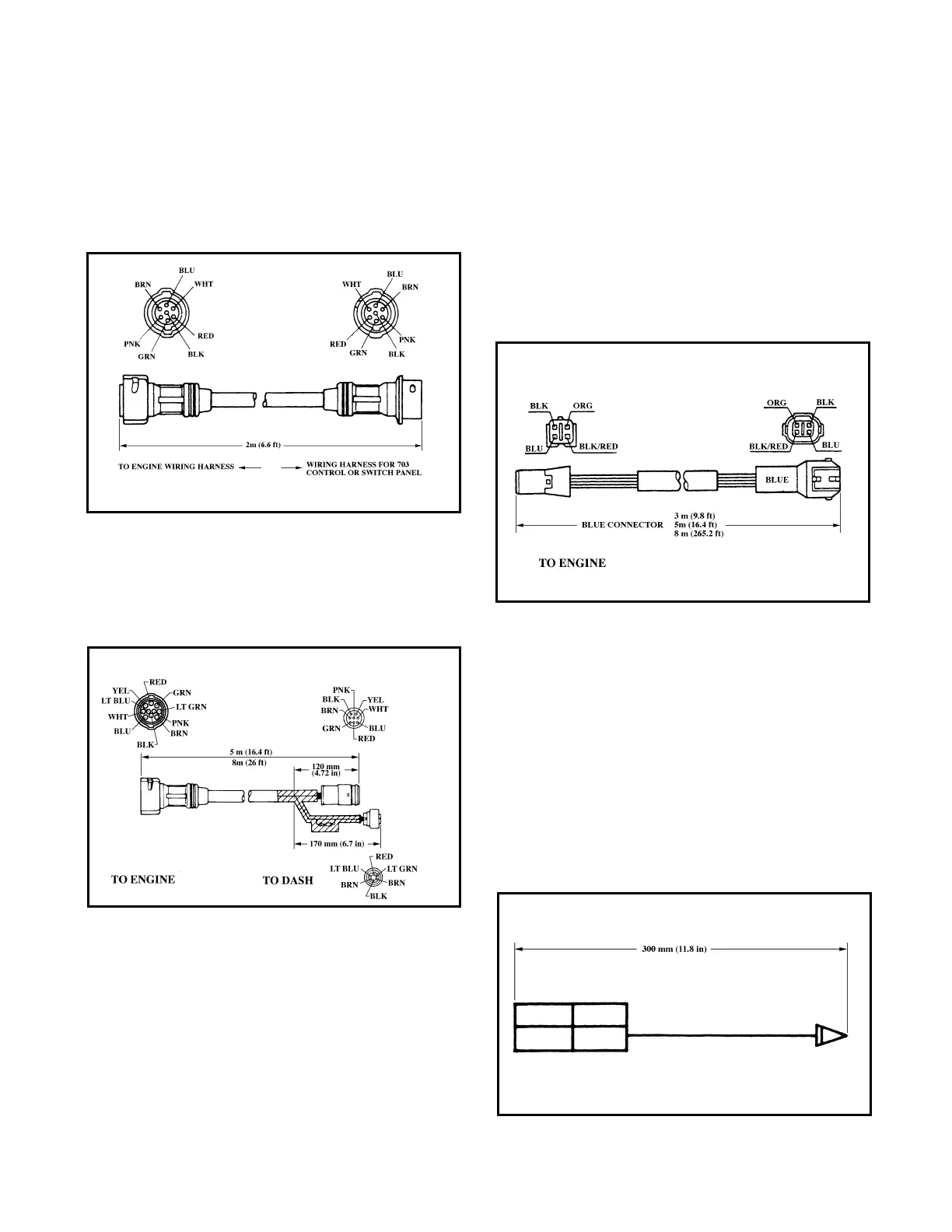

Outboard Rigging Guide - 2001 Wire Harnesses
Primary
Engine Harness Extensions
6. 7-Pin, 2M Extension (main harness)
688-82586-11-00 (2M, 6.6ft)
7-1.10-Pin 2M Extension (main harness)
688-8258A-10-00 (2M, 6.6ft)
7-2.10-Pin 3M Extension (main harness)
688-8258A-30-00 (3M, 9.8ft)
TANK HARNESSES
8-1.Oil Tank Lead, 3M
6R3-85721-30-00 (3M, 9.8ft)
8-2.Oil Tank Lead, 5M
6R3-85721-50-00 (5M, 16.4ft)
8-3.Oil Tank Lead, 8M
6R3-85721-80-00 (8M, 26.2ft)
Instrument Panel Harnesses
9-1.Accessory Blue Lead
6Y5-82149-00-00 (12V-lights)
9-2.Accessory Black Lead
6Y5-82117-00-00 (Ground)
9-3.Accessory Yellow Lead
6Y5-82521-00-00 (12v-key ON)
To Next Page
