3-35
Outboard Rigging Guide - 2001 Rectifier 6HP~25HP
Wiring

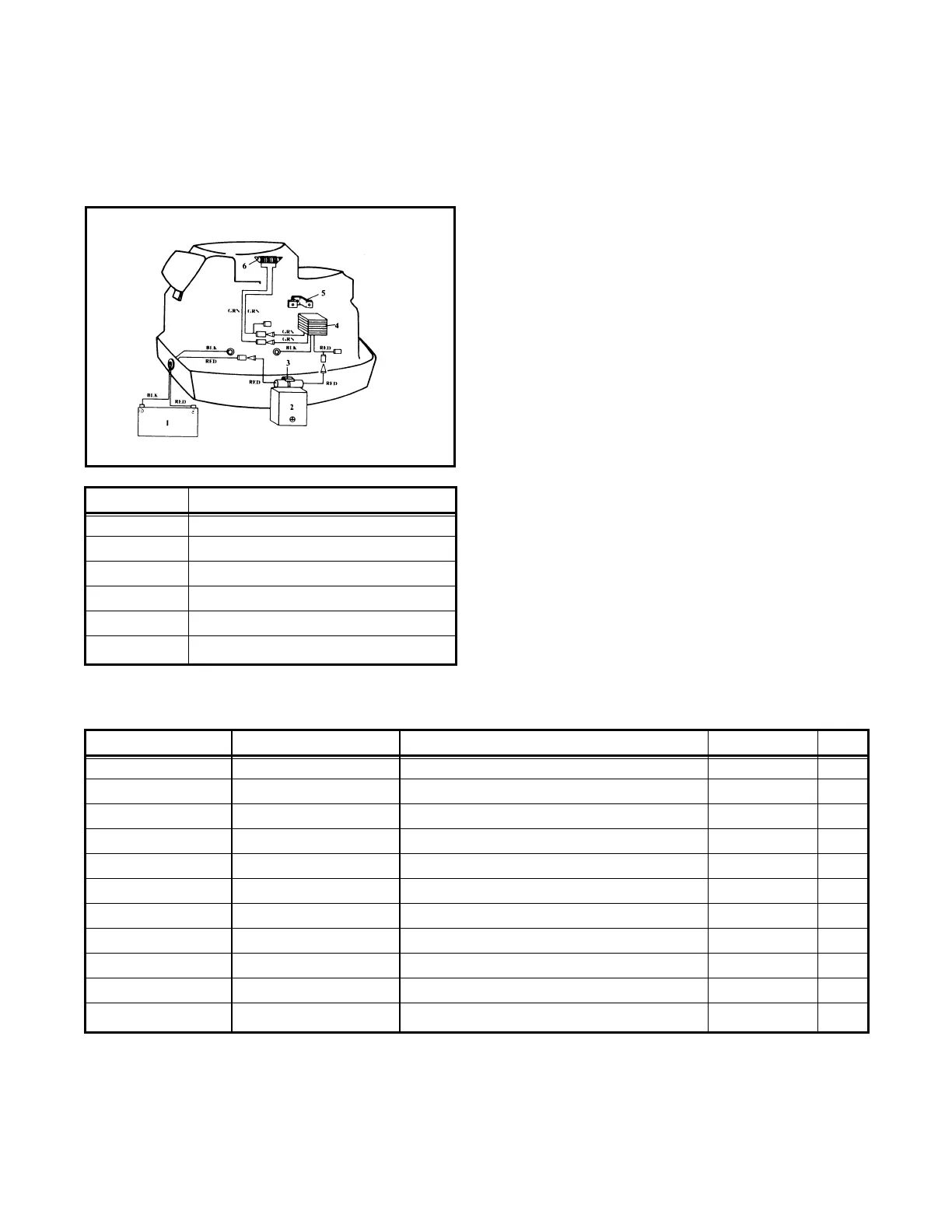

Connect the wiring as shown in the diagrams.
Additional Parts Required
Ref. No.. Description
1 Battery
2 Wire Connection Cover
3 Fuse Holder Assembly
4 Rectifier/Regulator
5 Bracket
6 Lighting Coil
Part Number Description Remarks Model Qty.
6G8-81949-00-00 Lead Wire Connects fuse holder assembly to battery All 1
6G8-82150-00-00 Fuse Holder Ass’y Connects rectifier and lead wire All 1
6G8-81948-00-00 Bracket Mounts rectifier and regulator assembly F9.9 1
97095-06016-00 Bolt For mounting bracket F9.9 3
92990-06600-00 Washer For mounting bracket F9.9 3
6G1-81975-00-00 Plate, Rectifier Fitting Mounts rectifier 6 & 8 1
98580-05525-00 Screw, Panhead Mounts rectifier 6,8,9.9,15,25 1
92990-05600-00 Washer Use with above screw 6,8,9.9,15,25 1
90105-06M23-00 Bolt Mounts plate 6,8,25 2
6E7-15771-80-94 Stay Mounts rectifier 9.9,15 1
6G1-42724-10-00 Grommet For wire lead 6,8,25 1
