3-39
Outboard Rigging Guide - 20010 5HP Lighting Coil
14. Reinstall the recoil starter onto the magneto
base and tighten the bolts.
Wiring

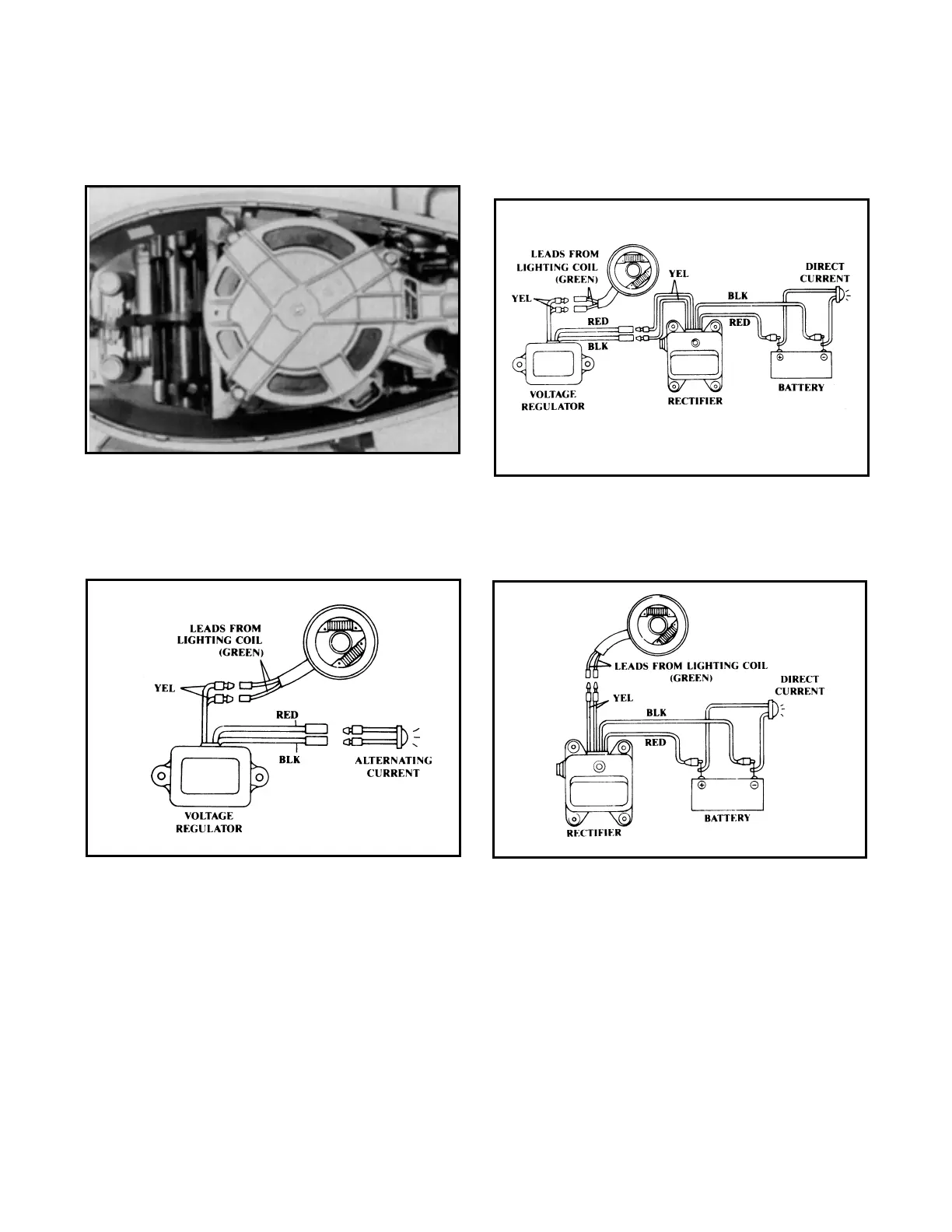

1. Connect the wire leads as shown in the dia-
grams.
NOTE: The voltage regulator can also be used
with the Yamaha rectifier to assure proper voltage
input from the rectifier to the battery.
NOTE: The rectifier can also be used with the
Yamaha Voltage Regulator (663-81910-10-00) to
ensure proper voltage input from the rectifier to
the battery.
