REMOTE CONTROL CABLES
Yamaha remote control cables are available in
lengths from 6 feet to 36 feet. The cables utilize
10-32 threaded ends. Measure from the location
of the remote control box to the outboard motor
along an unobstructed path that will allow the
cables to be routed as straight as possible. Avoid
sharp bends, and be sure to allow for an addition-
al loop of approximately three feet, if necessary.
Additional Parts Required
NOTE: A switch panel is required for manual models if
used on a 9.9 to 25hp electric model.

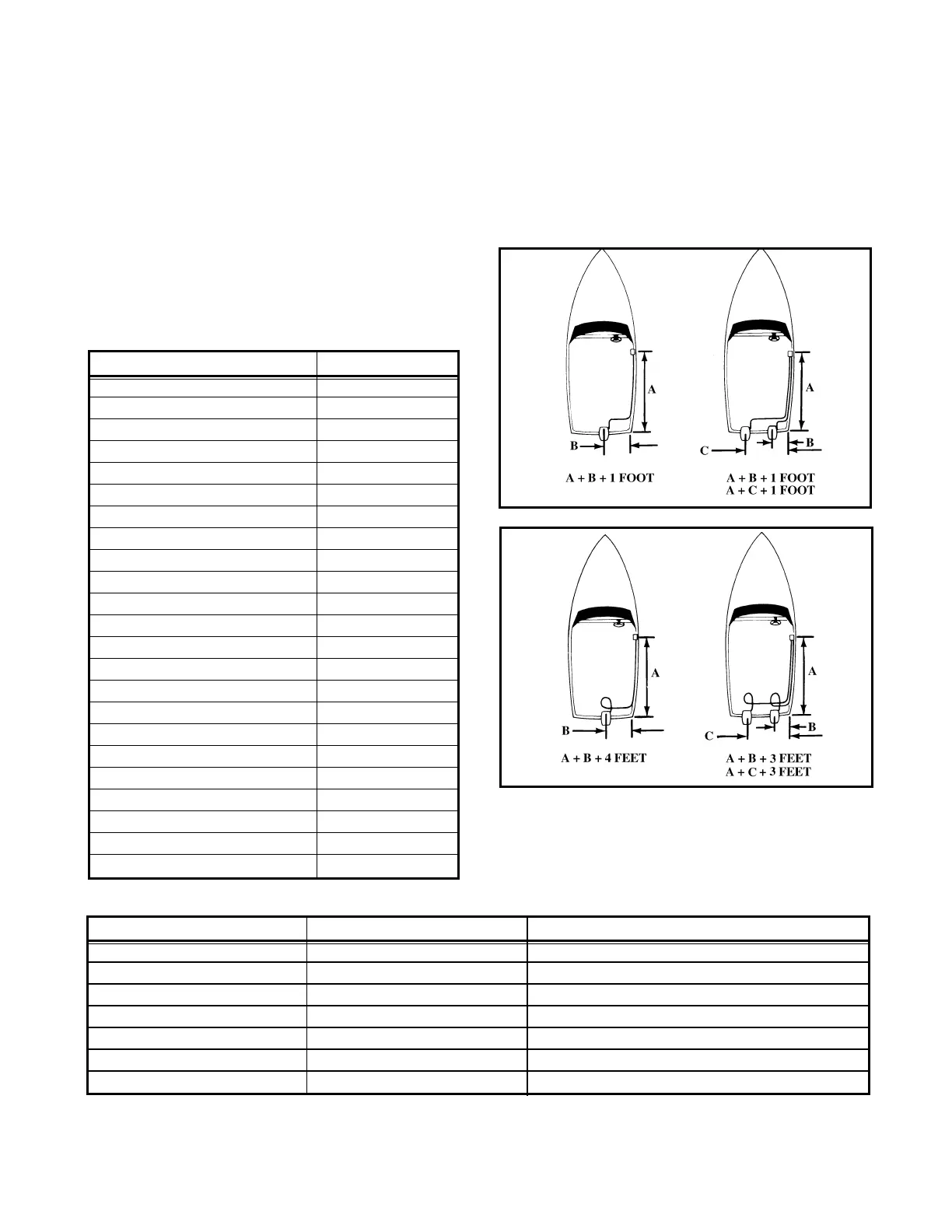

Cable Measuring
Use the following examples as a guide for mea-
surement. Obviously, different boats will required
different routing and therefore different lengths.
Part Number Length
ABA-CABLE-06-GY 6 FEET
ABA-CABLE-07-GY 7 FEET
ABA-CABLE-08-GY 8 FEET
ABA-CABLE-09-GY 9 FEET
ABA-CABLE-10-GY 10 FEET
ABA-CABLE-11-GY 11 FEET
ABA-CABLE-12-GY 12 FEET
ABA-CABLE-13-GY 13 FEET
ABA-CABLE-14-GY 14 FEET
ABA-CABLE-15-GY 15 FEET
ABA-CABLE-16-GY 16 FEET
ABA-CABLE-17-GY 17 FEET
ABA-CABLE-18-GY 18 FEET
ABA-CABLE-19-GY 19 FEET
ABA-CABLE-20-GY 20 FEET
ABA-CABLE-22-GY 22 FEET
ABA-CABLE-24-GY 24 FEET
ABA-CABLE-26-GY 26 FEET
ABA-CABLE-28-GY 28 FEET
ABA-CABLE-30-GY 30 FEET
ABA-CABLE-32-GY 32 FEET
ABA-CABLE-34-GY 34 FEET
ABA-CABLE-36-GY 36 FEET
Control Part Number Description
All Controls ABA-CABLE-XX-GY Control Cable of XX ft length - Need 2
701 Control See Note 6G1-48501-50-00 6-8HP Remote conversion kit
6G8-48501-03-00 FT/F9.9hp Remote conversion kit
63V-48501-00-00 9.9-15hp Remote conversion kit
6L2-48501-10-00 25HP Remote conversion kit
6H4-48501-80-00 40HP Manual Remote conversion kit
703 Control 6L2-48501-10-00 25HP Remote conversion kit
TRANSOM
WELL
THRU
TRANSOM
