Outboard Rigging Guide - 2001

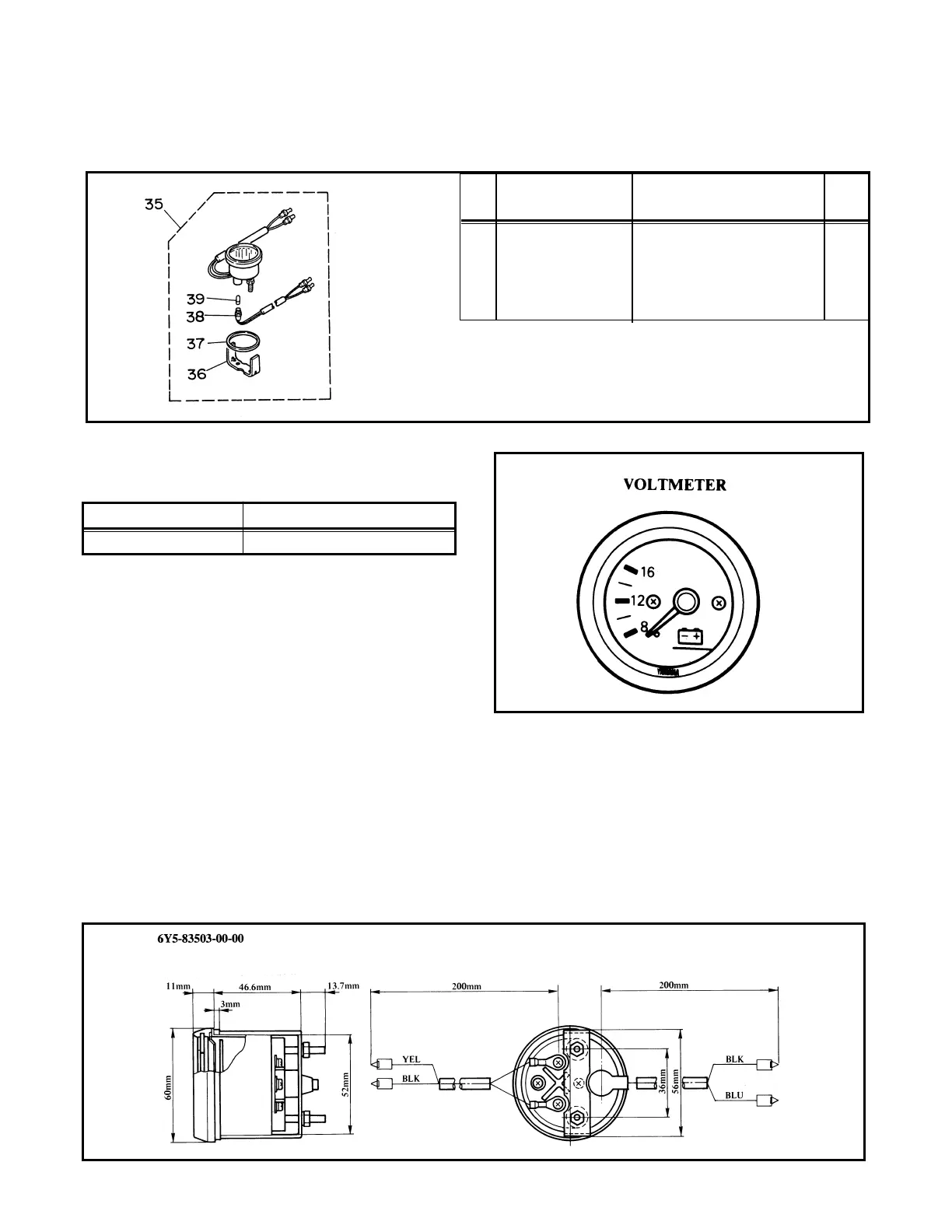

VOLTMETER - (6Y5-83503-00-00)
The voltmeter provides information about the
charging condition of the battery.
NOTE: The voltmeter can be used with any
engine converted to full remote operation.
NOTES ABOUT VOLTAGE READINGS:
Models smaller than 75hp have no voltage regu-
lator. Extended operation or operating with a bad
battery can produce voltage readings higher than
16 volts.
The voltage regulator on 75hp~225(L)hp is set
for fast battery charging with repeated engine
starting. Extended continuous engine opera-
tion may show voltage readings around 16
volts. This is not a problem with properly
maintained marine batteries.
Installation
REF
NO PART NUMBER DESCRIPTION QTY.
35 Voltmeter Ass’y1
36 6Y5-83544-00-00 • Plate 1
37 688-83664-00-00 • Damper 1
38 6Y5-83536-00-00 • Socket, Meter 1
39 6Y5-83518-00-00 • Bulb, Meter 1
• Component parts
Parts Number Applicable Models
6Y5-83503-00-00 All electric remote models
To Next Page
