5-28
Outboard Rigging Guide - 2001

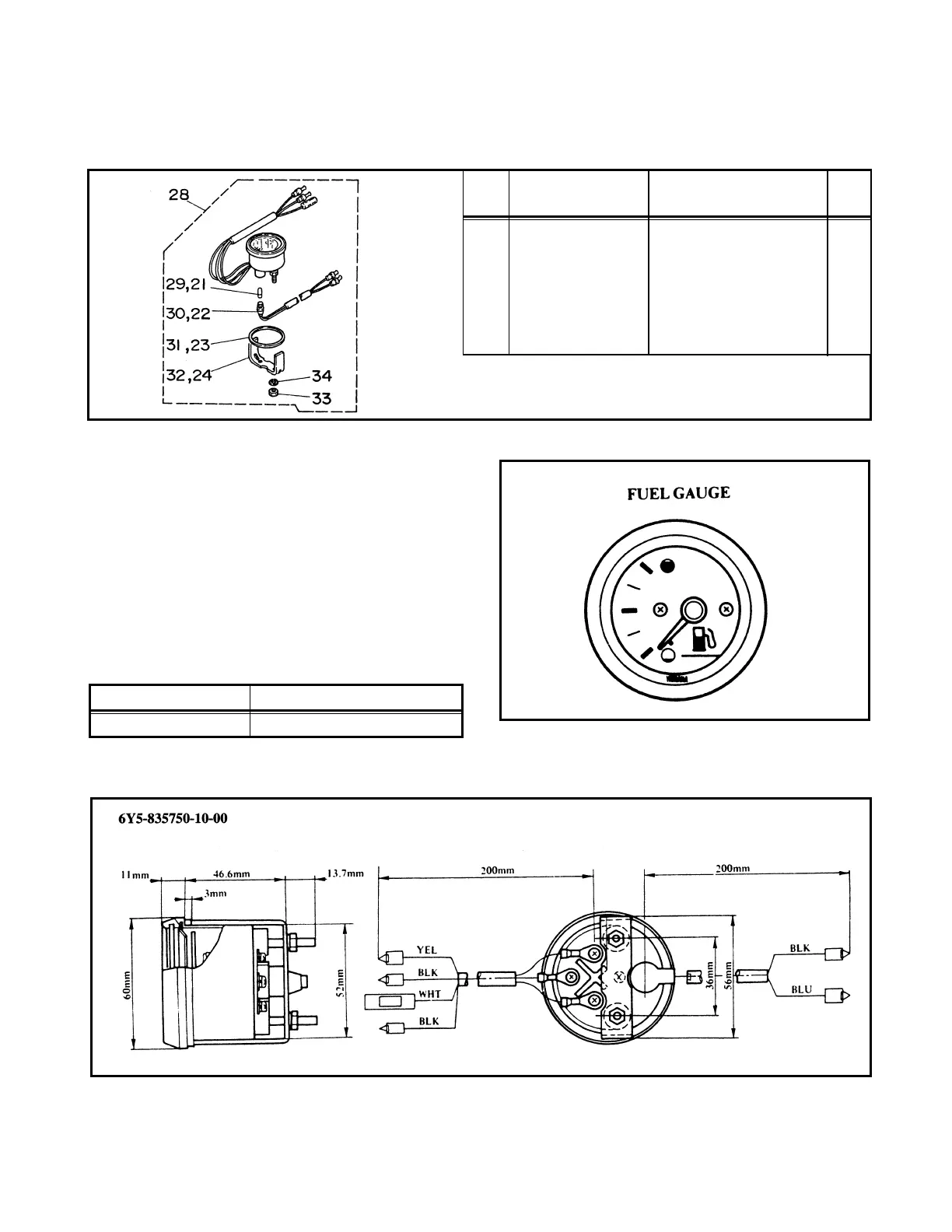

FUEL GAUGE (Pro-Type) - (6Y5-85750-10-00)
REF
NO PART NUMBER DESCRIPTION QTY.
28 Fuel Meter Ass’y1
29 6Y5l-83518-00-00 • Bulb, Meter 1
30 6Y5-83536-00-00 • Socket, Meter 1
31 688-83664-00-00 • Damper 1
32 6Y5-83544-00-00 • Plate, Fitting 1
33 95303-04600-00 • Nut 2
34 92990-04100-0 • Washer, Spring 2
• Component parts
The fuel gauge indicates the amount of fuel
remaining in the fuel tank. This information will
help the boater estimate the amount of cruising
time available before refueling.
The Yamaha Fuel Gauge can be used from the
helm by installing an aftermarket fuel tank sensor
and making connection to the battery, or by using
the existing A.B.Y.C. sender (with a resistance of
30~240) found in most permanently installed
tanks.
Installation
Parts Number Applicable Models
6Y5-85750-10-00 All boats w/built-in tank
