Outboard Rigging Guide - 2001 Fuel Management Gauge
Fuel Management Gauge V4-V6 Only

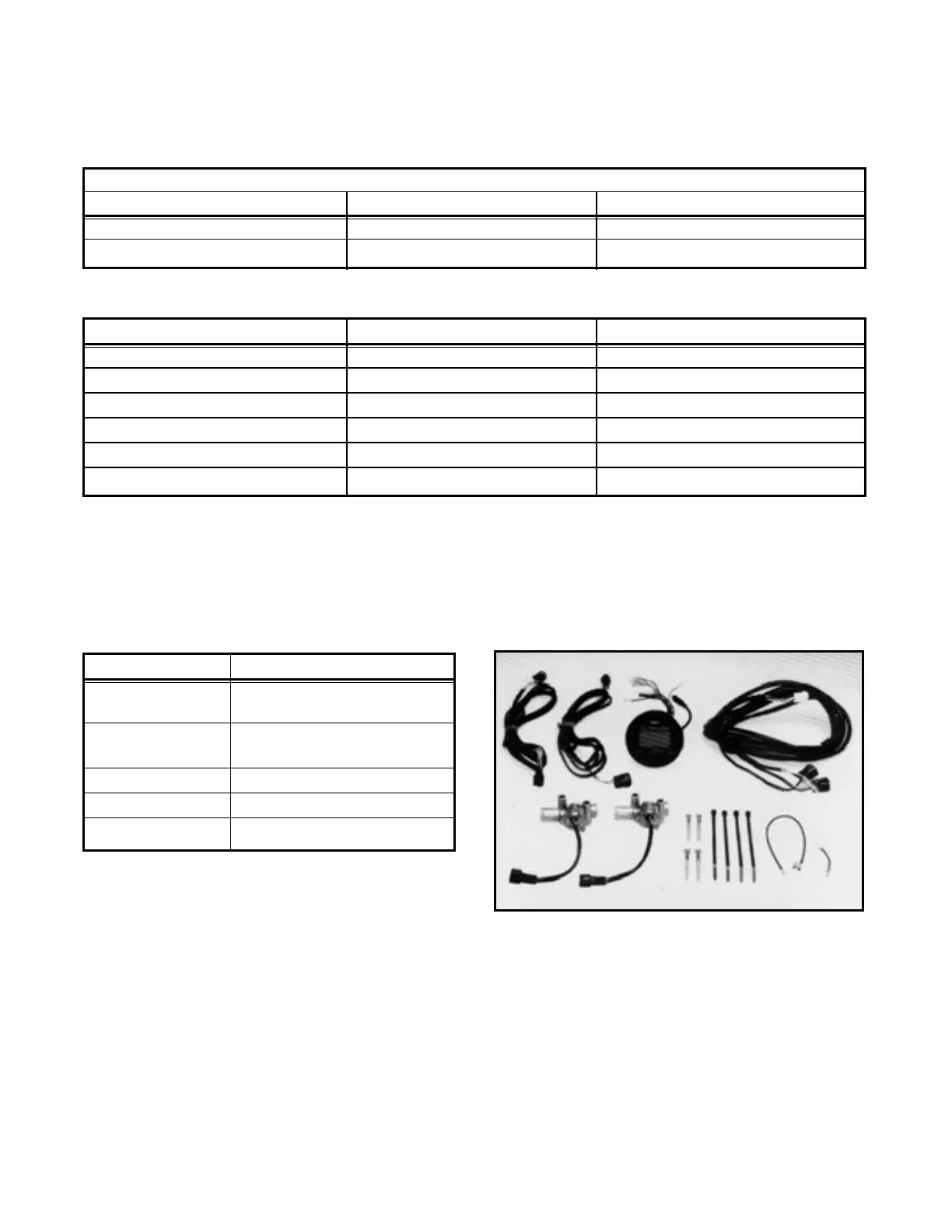

Parts Identification
Kit Contents:
* F.M. Meter to Sender Harness included with fuel management kits is -F1 8m long. For replacement -
F0 5m must be used with extensions. (F0 and F1 are in Parts stock.)
Optional Parts
FUEL MANAGEMENT GAUGE ASSEMBLY SYSTEM
Part Number Description Remarks
6Y5-W0088-53-00 Single F/M Kit Single Engine
6Y5-W0088-64-00 Dual F/M Kit Dual Engine
Part Number Description Remarks
6Y5-83500-F2-00* Meter Assembly 1
6Y5-83553-F1-00 Extension, Wire Lead 1
6Y5-85752-01-00 Fuel Sender 2 (1 in Single Kit)
703-82531-00-00 Extension, Wire Lead 1
90465-13H39-00 Clamp 4 (2 in Single Kit)
95480-06363-00 Screw 4 (2 in Single Kit)
Part Number Description
6X1-82531-00-00 Extension, Wire Lead (fuel
flow sensor, 9.8 ft. [3M])
MAR-24560-00-00 Fuel/Water Separator, complete
assembly w/sensor
MAR-24564-00-00 Filter w/bowl and sensor
MAR-24563-00-00 Filter Only
MAR-10171-30-00 Sensor Only
Dual Engine Kit:
