6-9
Outboard Rigging Guide - 2001 F15 Tiller Handle Kit

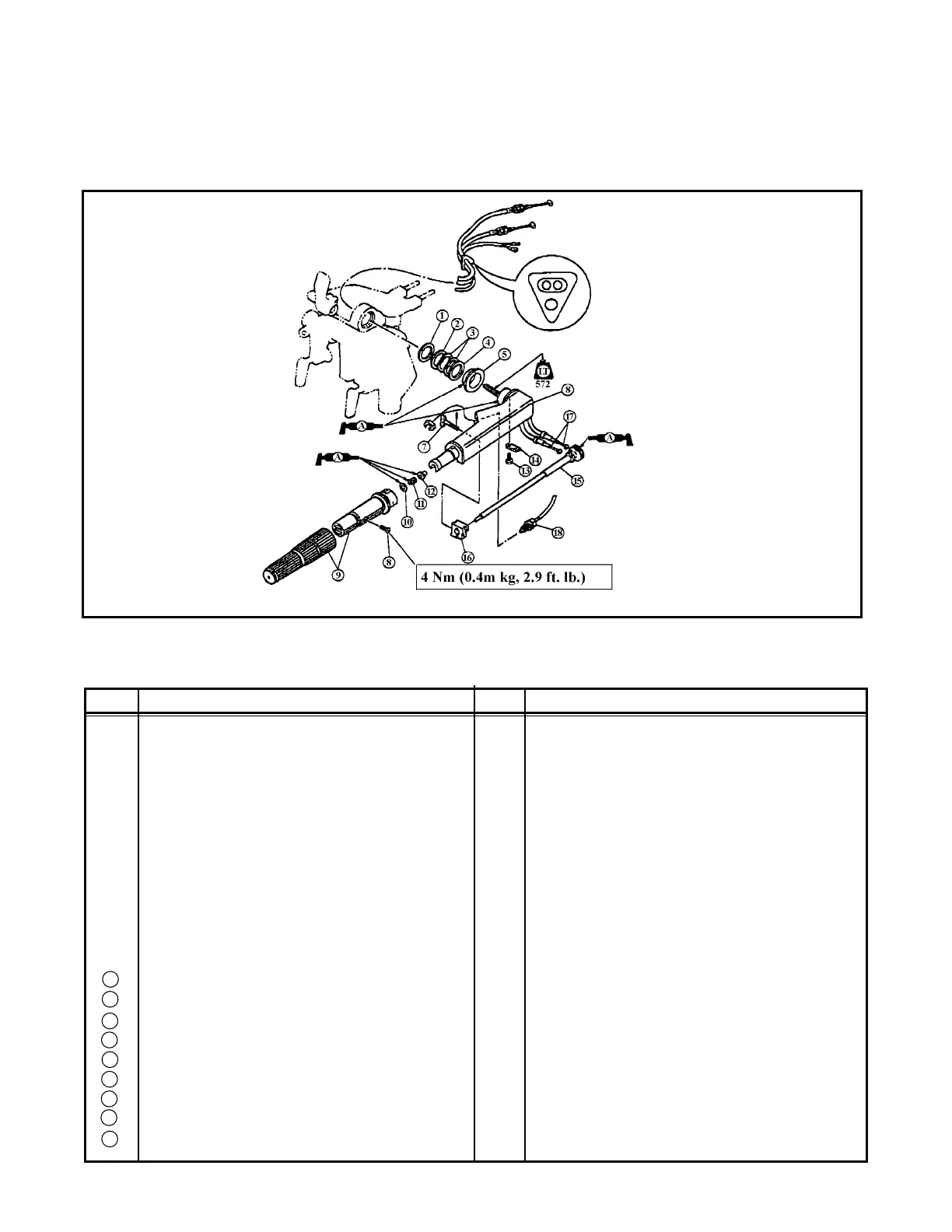

STEERING HANDLE ASS’Y (F15)
EXPLODED DIAGRAM
STEP PROCEDURE/PART NAME QTY. SERVICE POINTS
STEERING HANDLE ASS’Y DISASSEMBLY
Follow the “Step” order for disassembly.
Steering Handle Ass’y.
Manual starter (for MH models)
1 Plastic Washer 1
2 Metal Washer 1
3 Wave Washer 2
4 Metal Washer 2
5 Bushing 1
6 Steering Handle Bracket 1
7 Friction Adjusting Screw 1
8 Screw 1
9 Steering Grip 1
Washer 1
Spring 1
Bushing 1
Bolt 2 Self tapping bolt: M8
Plate 1
Throttle Shaft 1
Friction Piece 1
Throttle Cable 2
Engine Stop Switch 1 Reverse the disassembly steps for assembly
10
11
12
13
14
15
16
17
18
