6-35
Outboard Rigging Guide - 2001 F40 4-Cyl., F/T50 Tiller Handle Kit

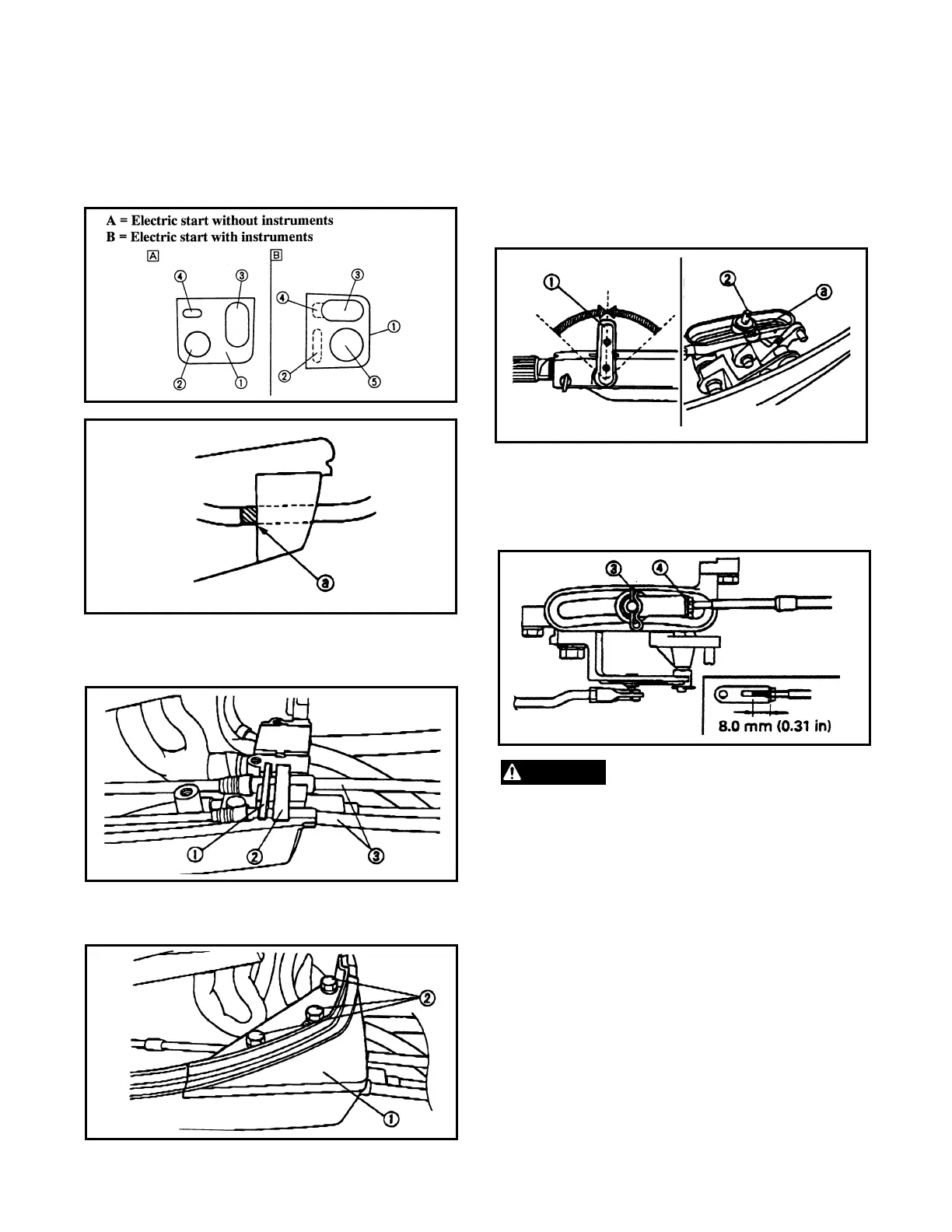

NOTE:Align the taped end a (see illustration 2
below) of the battery cable and the extension wire
lead with the end of the grommet.
3. Install the cable stopper 1, rubber seal 2,
and remote control cables 3.
4. Install the fitting plate 1 and bolt 2.
T orque: B olt - 8N m ( 0.8m-kg, 5.8 ft-lb.)
5. Adjust the shift cable joint position.
a. Turn the shift handle 1 to the neutral
position.
b. Align the center of the set pin 2 with the
mark
a on the bracket.
c. Adjust the position of the cable joint until
its hole aligns with the set pin.
d. Install the clip 2 and tighten the lock nut
4.
M ake sure the cable joint is screwed in more
than 8mm ( 0.31 in) .
6. Check the shift control for smooth operation.
7. Adjust the throttle cable joint position.
a. Turn the throttle grip fully closed.
b. Align the mark
a on the throttle lever
with the mark
b on the shift bracket.
c. Adjust the position of the cable joint until
its hole aligns with the set pin.
d. Install the clip 1 and tighten the lock nut
2.
To Next Page
