DIGITAL TACHOMETER
NOTE:
Before installing the tachometer, make sure
the terminal plate is set to the 12-pole position.
If it is set on the other side, the tachometer will
not show correct measurement.

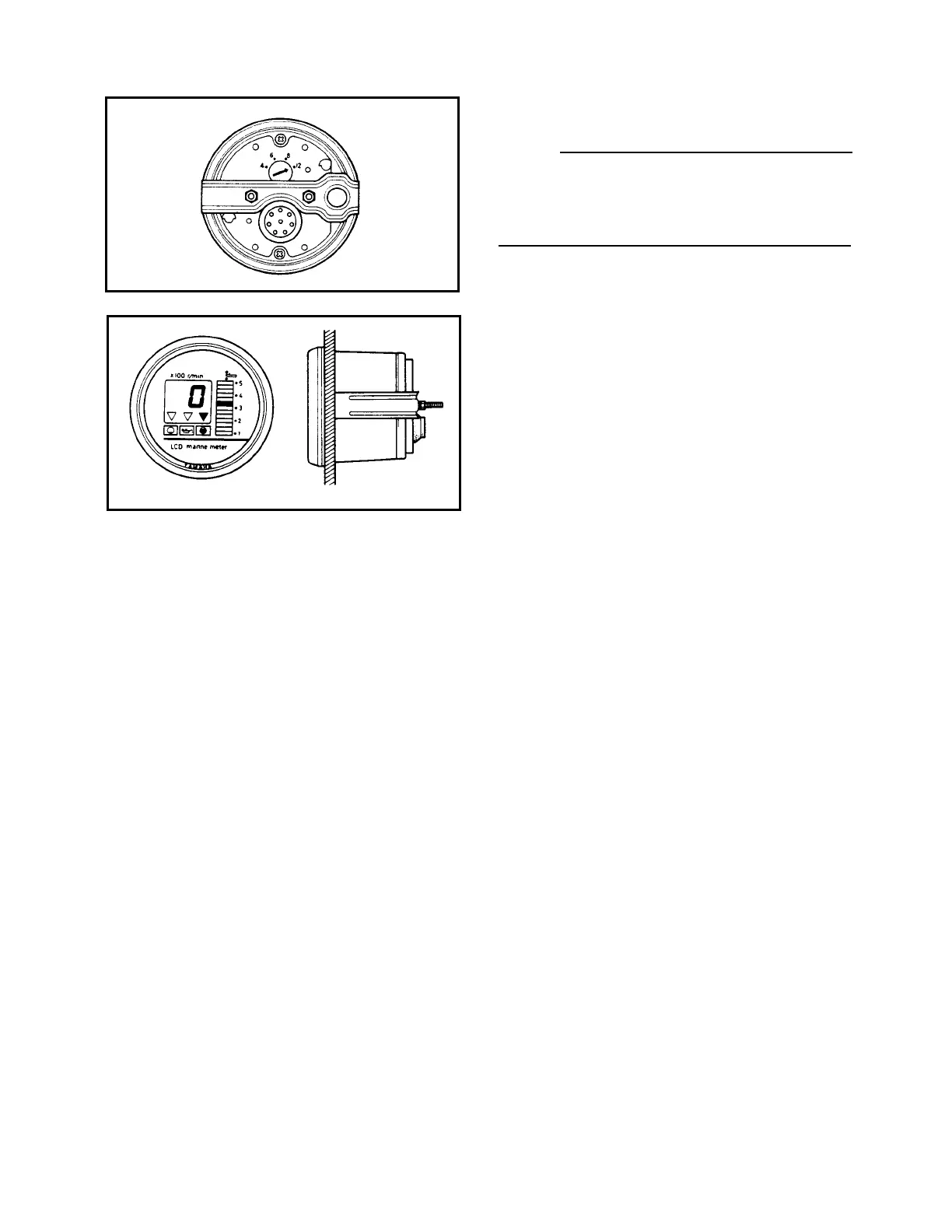

1) Install the digital meter onto the dash-
board. If no dashboard is available, use a
wooden board having a thickness of
2~11mm in place of the dashboard.
2) Select a place for installation which is free
from splashes.
3) Evenly tighten the mounting nuts on both
right and left sides.
4) For wiring, refer to the “WIRING” section.
10A-11
