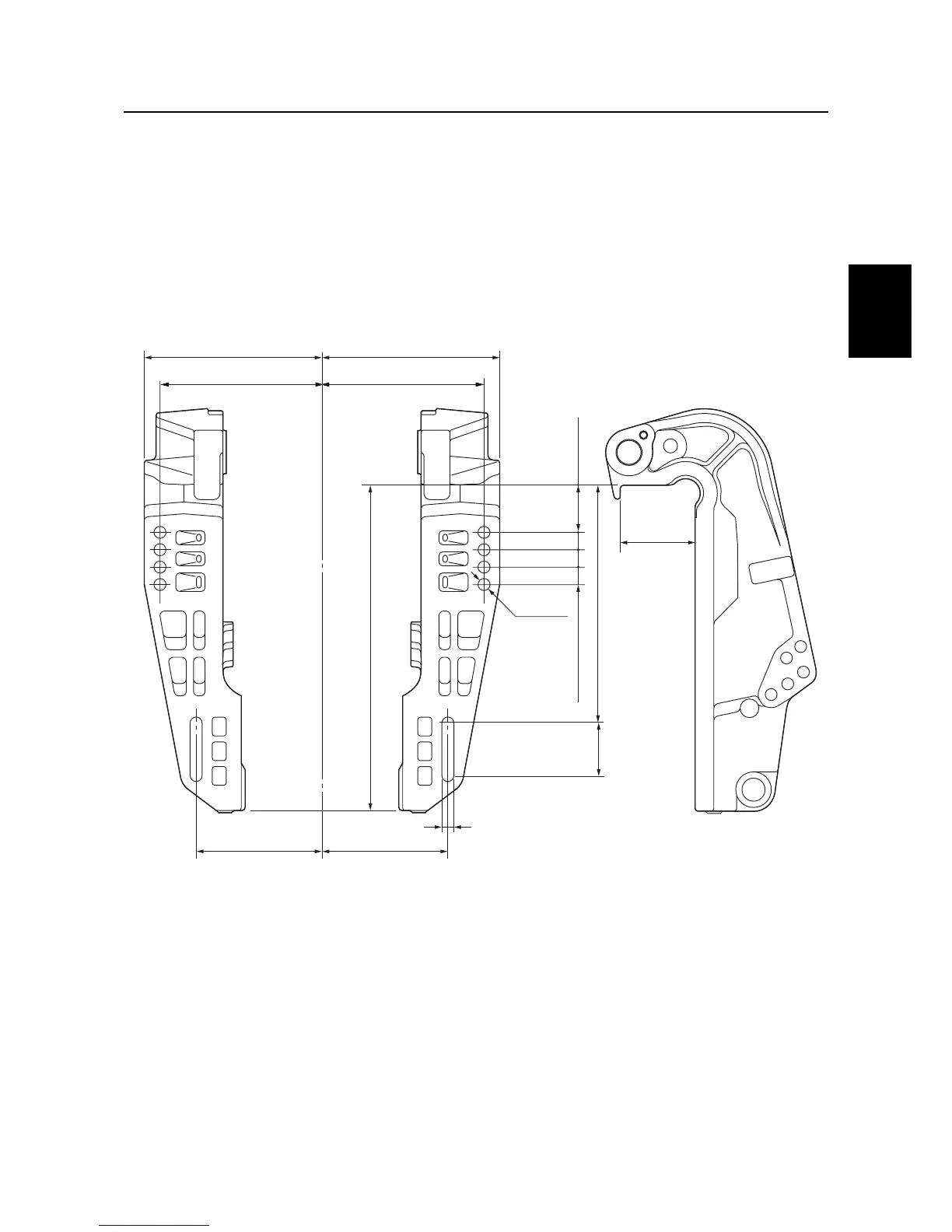

Clamp bracket
348.5 (13.7)
180 (7.1)
163.5 (6.4)163.5 (6.4)
180 (7.1)
18.5 (0.7)
254 (10.0)
13 (0.5)
80 (3.1)
50.8 (2.0)
55.5 (2.2)
13 (0.5)
125.4 (4.9)125.4 (4.9)
mm (in)
S6D82020
Maintenance specification
