Yamaha F80B - Hose Routing; Fuel and Blowby Hoses

6D93G11
4-2
1
2
3
4
5
6
7
8
9
Hose routing
4

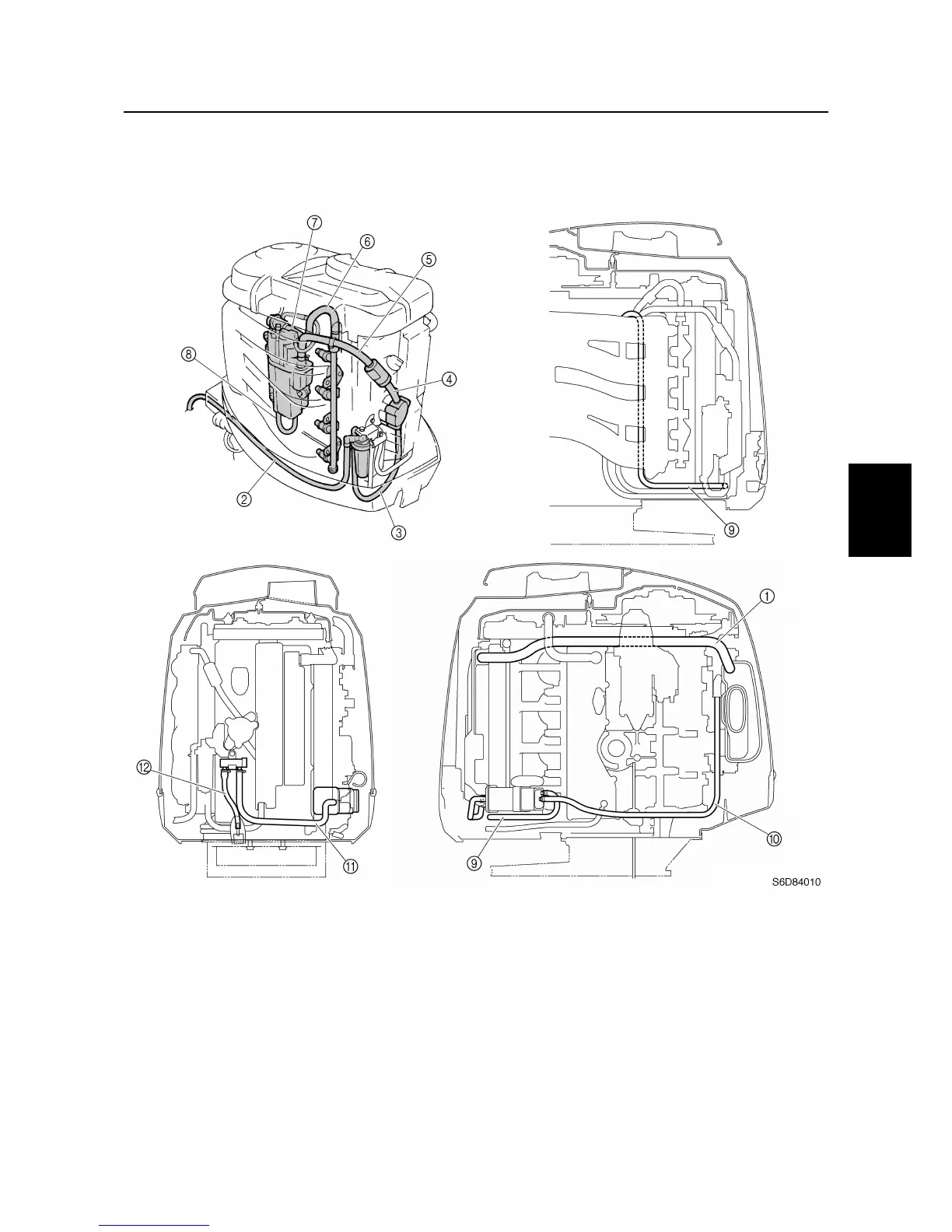

Fuel and blowby hoses
1
Blowby hose
2
Fuel hose (primary pump-to-fuel filter)
3
Fuel hose (fuel filter-to-fuel pump)
4
Fuel hose (fuel pump-to-strainer)
5
Fuel hose (strainer-to-vapor separator)
6
High-pressure fuel hose (vapor separator-to-fuel rail)
7
Fuel hose (pressure regulator-to-fuel cooler)
8
Fuel hose (fuel cooler-to-vapor separator)
9
Canister hose (vapor separator-to-canister)
0
Canister hose (canister-to-idle speed control)
A
Canister hose (canister-to-filter)
B
Canister hose (filter-to-bottom cowling)
