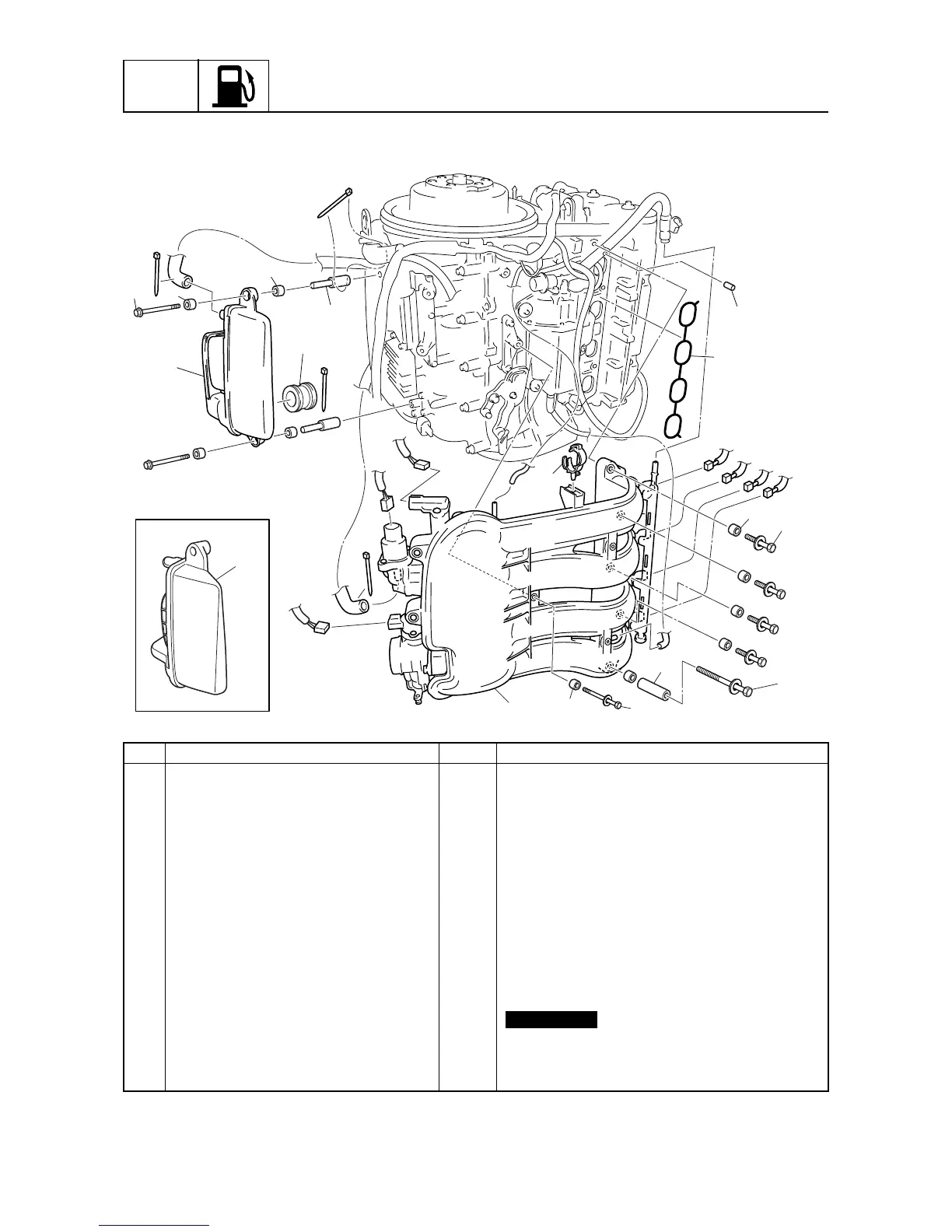

Yamaha F80B - Intake Manifold

FUEL
Fuel system
4-7
6D93G11
Intake manifold
4
No. Part name Q’ty Remarks
1 Intake silencer 1 F80BET
2Bolt 2 M6
×
80 mm
3 Bushing 4
4 Collar 2
5 Intake manifold assembly 1
6Bolt 4 M8
×
30 mm
7 Collar 5
8Bolt 1 M8
×
100 mm
9Spacer 1
10 Bolt 3 M6
×
45 mm
11 Collar 3
12 Holder 1
13 Gasket 1
Not reusable
14 Pin 2
15 Joint 1
16 Intake silencer 1 F100DET
S6D94010
2
1
16
3
3
15
4
14
13
12
7
11
5
10
8
9
6
