Yamaha F80B - Junction Box

6D93G11
5-22
1
2
3
4
5
6
7
8
9

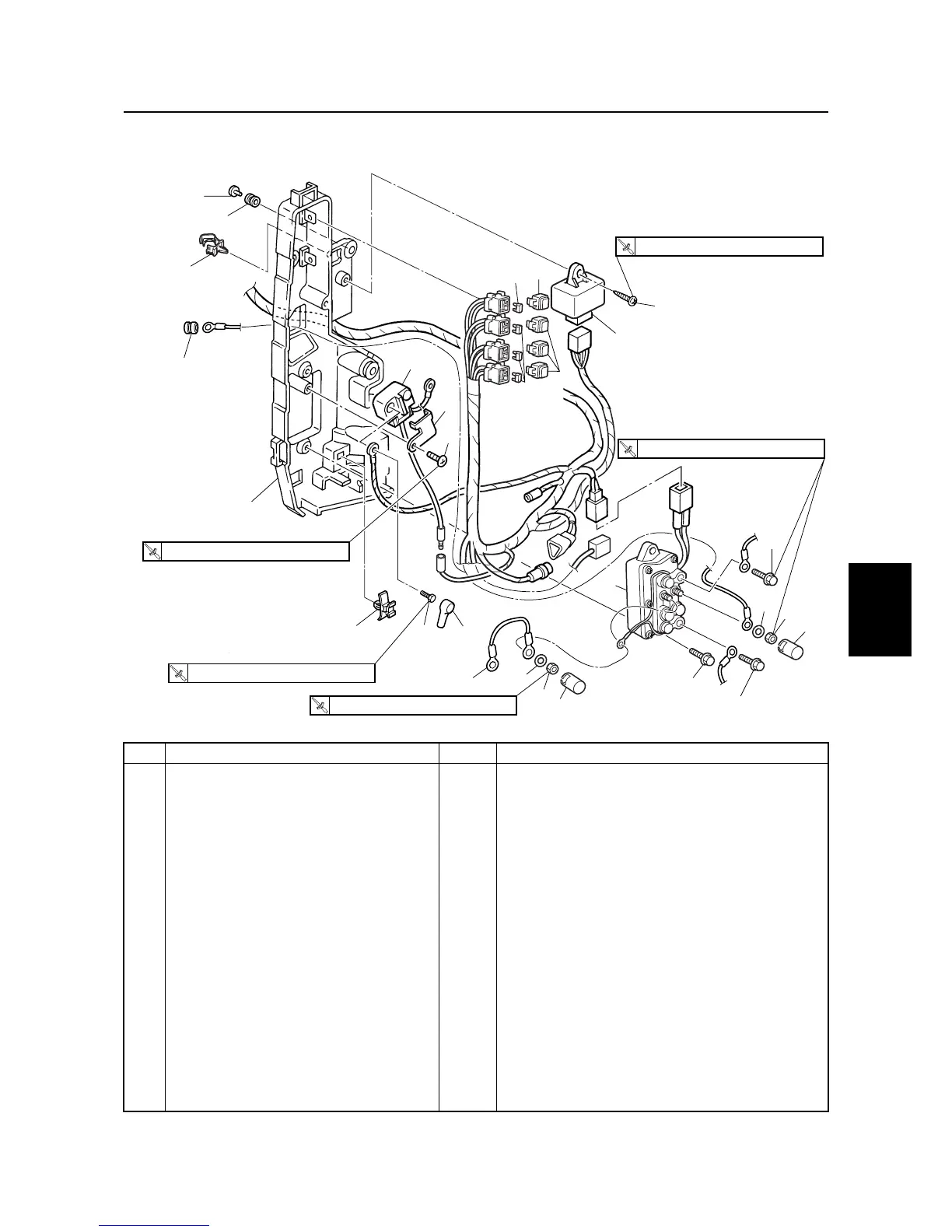

Junction box
5
No. Part name Q’ty Remarks
1Screw 1 ø6
×
25 mm
2 Main and fuel pump relay 1
3 Power trim and tilt relay 1
4 Washer 2
5Nut 2
6Cap 2
7Bolt 2 M6
×
20 mm
8 Ground lead 1
9Fuse 1 30 A
10 Fuse 3 20 A
11 Cap 1
12 Cap 3
13 Starter relay 1
14 Holder 1
15 Screw 1 ø6
×
20 mm
16 Bolt 1 M6
×
10 mm
17 Cap 1
S6D95020
1
2
9
13
11
10
12
4
3
7
5
6
14
15
16
18
19
21
20
17
8
4
5
6
22
22
24
23
T
R
.
.
3 N
·
m (0.3 kgf
·
m, 2.2 ft
·
Ib)
T
R
.
.
4 N
·
m (0.4 kgf
·
m, 3.0 ft
·
Ib)
T
R
.
.
4 N
·
m (0.4 kgf
·
m, 3.0 ft
·
Ib)
T
R
.
.
4 N
·
m (0.4 kgf
·
m, 3.0 ft
·
Ib)
T
R
.
.
3 N
·
m (0.3 kgf
·
m, 2.2 ft
·
Ib)
ECM / Junction box
