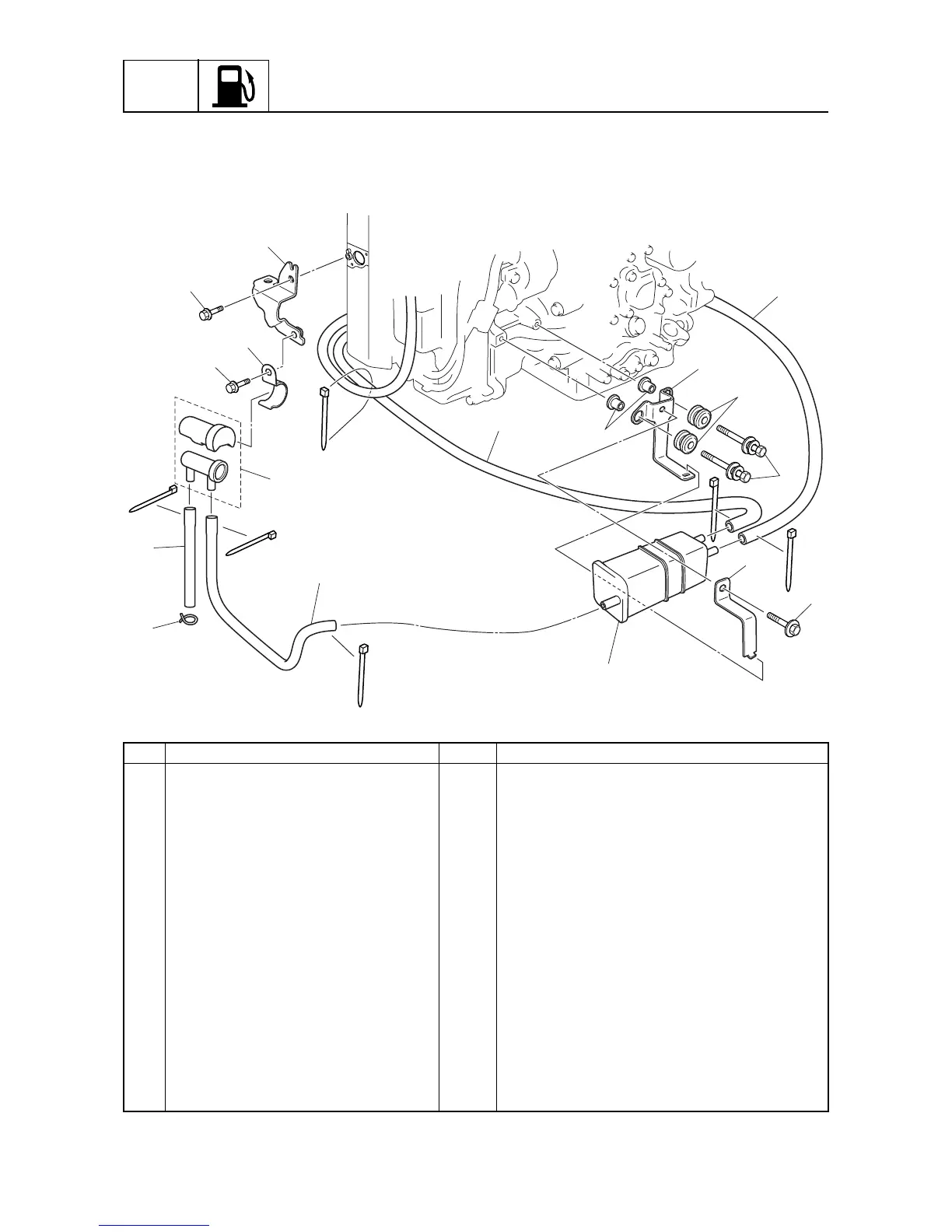

Yamaha F80B - Canister

FUEL
Fuel system
4-19
6D93G11
Canister
4
No. Part name Q’ty Remarks
1Bolt 1 M6
×
16 mm
2Bracket 1
3 Canister 1
4Bolt 2 M6
×
28 mm
5Grommet 2
6Bracket 1
7 Collar 2
8Hose 1
9Hose 1
10 Hose 1
11 Filter 1
12 Hose 1
13 Clamp 1
14 Bolt 1 M6
×
10 mm
15 Holder 1
16 Bolt 1 M6
×
16 mm
17 Bracket 1
S6D84150
8
9
7
6
5
4
2
3
11
13
12
10
1
14
15
16
17
