CHECKING THE COOLING SYSTEM
EAS00104
CHECKING THE COOLING SYSTEM
1. Remove:
• rider seat
• fuel tank
Refer to “SEATS AND FUEL TANK”.
• side cowlings
• front cowling assembly
Refer to “COWLINGS AND COVERS”.

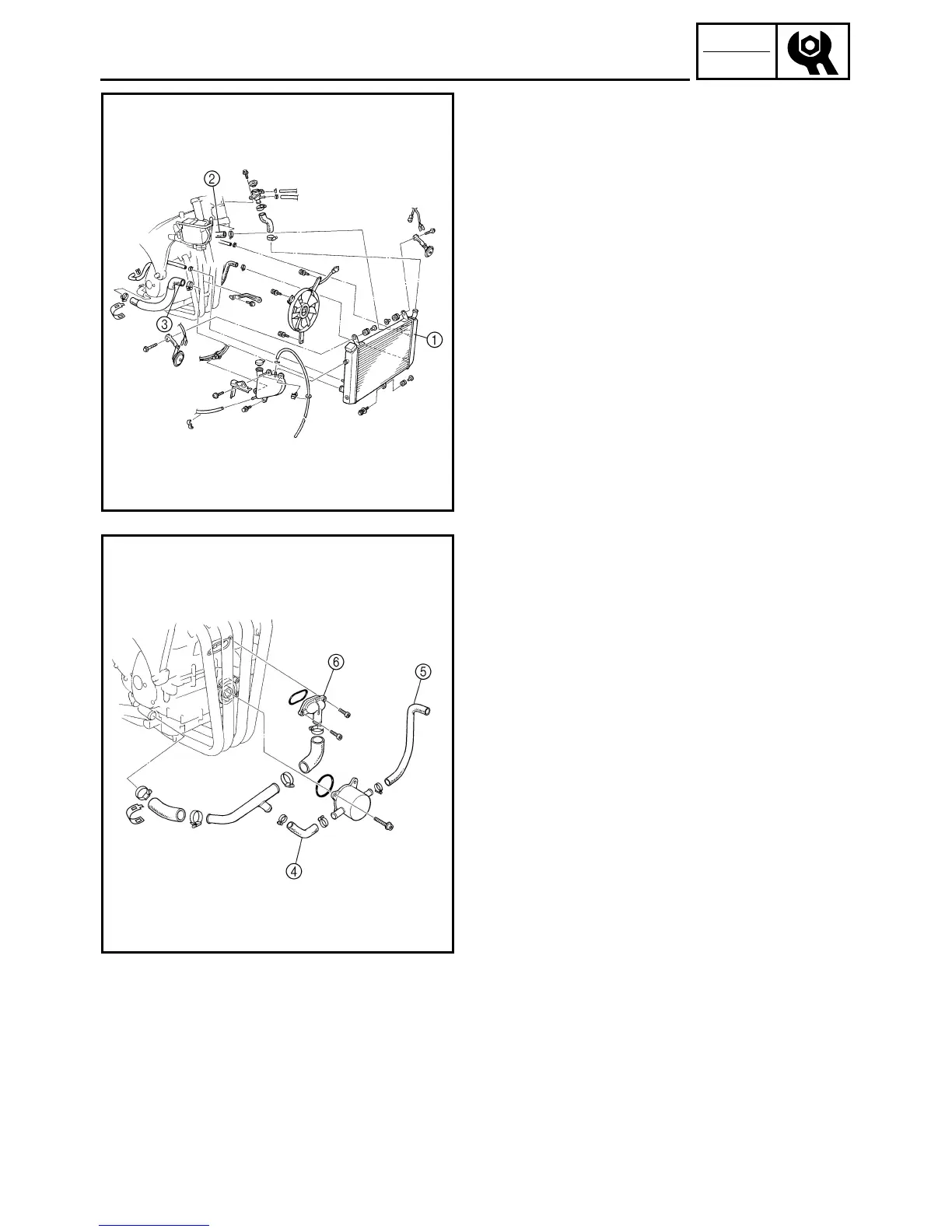

2. Check:
• radiator
1
• radiator inlet hose
2
• radiator outlet hose
3
• oil cooler inlet hose
4
• oil cooler outlet hose
5
• water jacket joint
6
Cracks/damage
→
Replace.
Refer to “COOLING SYSTEM” in chapter 6.
3. Install:
• front cowling assembly
• side cowlings
Refer to “COWLINGS AND COVERS”.
• fuel tank
• rider seat
Refer to “SEATS AND FUEL TANK”.
