5 - 99

ENG

EAS00271

EAS00404

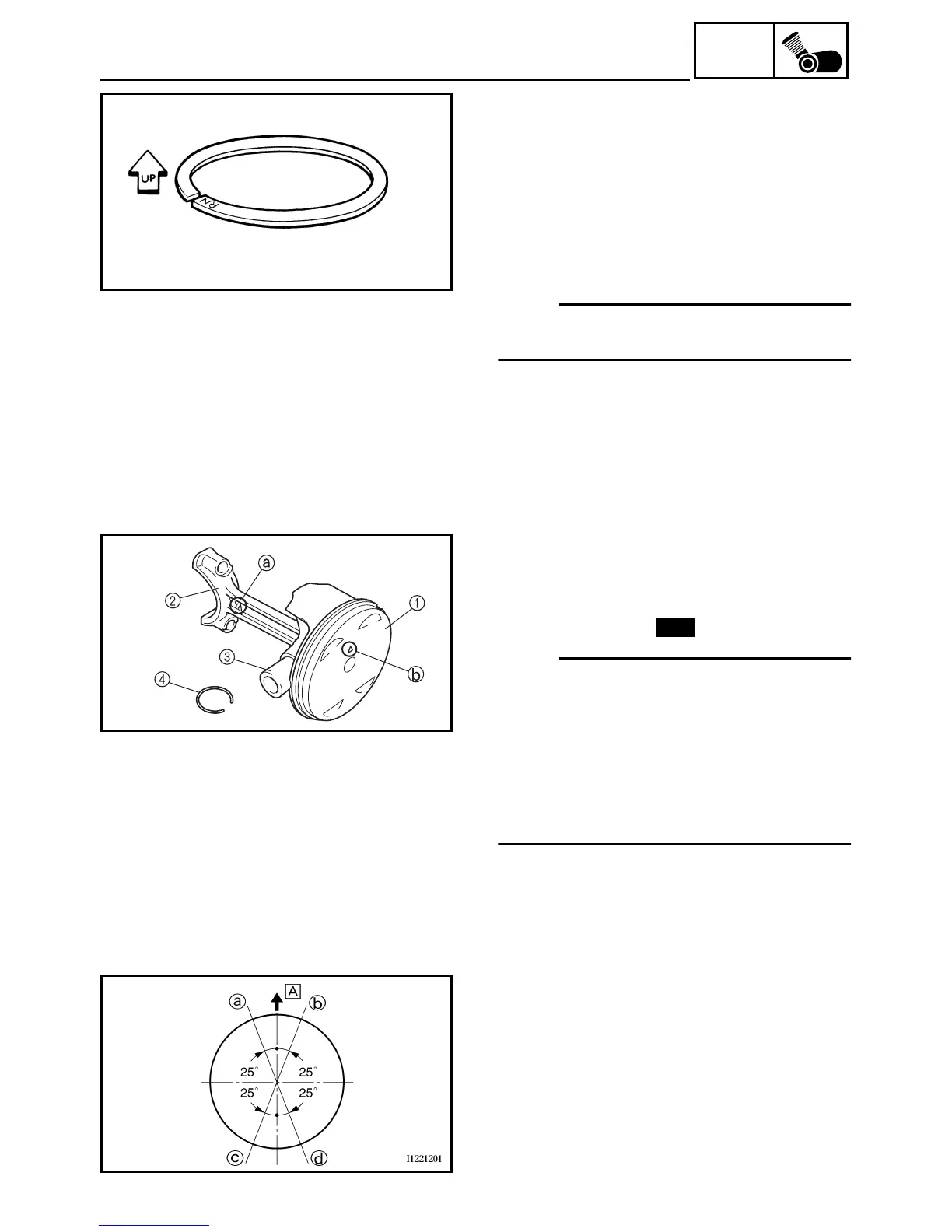

INSTALLING THE CONNECTING RODS

AND PISTONS

The following procedure applies to all of the

pistons and connecting rods.

1. Install:

• top ring

• 2nd ring

• oil ring

NOTE:

Be sure to install the piston rings so that the

manufacturer’s marks or numbers face up.

2. Install:

• piston

• connecting rod

• piston pin

• piston pin clip

NOTE:

• Apply engine oil onto the piston pin.

• Make sure that the “Y” mark

on the con-

necting rod left when the arrow mark

the piston is pointing up. Refer to the illustra-

tion.

• Reinstall each piston into its original cylinder

(numbering order starting from the left: #1 to

#4).

New

3. Offset:

• piston ring end gaps

Top ring

Lower oil ring rail

Upper oil ring rail

2nd ring

Intake side

CONNECTING RODS AND PISTONS
