5 - 20
ENG
CYLINDER HEAD
EAS00222
REMOVING THE CYLINDER HEAD
1. Remove:
• cylinder head bolts
NOTE:
@
Loosen each bolt 1/2 of a turn at a time. After
all of the bolt are fully loosened, remove them.
EAS00229
CHECKING THE CYLINDER HEAD
1. Eliminate:
• combustion chamber carbon deposits
(with a rounded scraper)
NOTE:
@
Do not use a sharp instrument to avoid damag-
ing or scratching:
• spark plug bore threads
• valve seats
2. Check:
• cylinder head
Damage/scratches
→
Replace.
• cylinder head water jacket
Mineral deposits/rust
→
Eliminate.

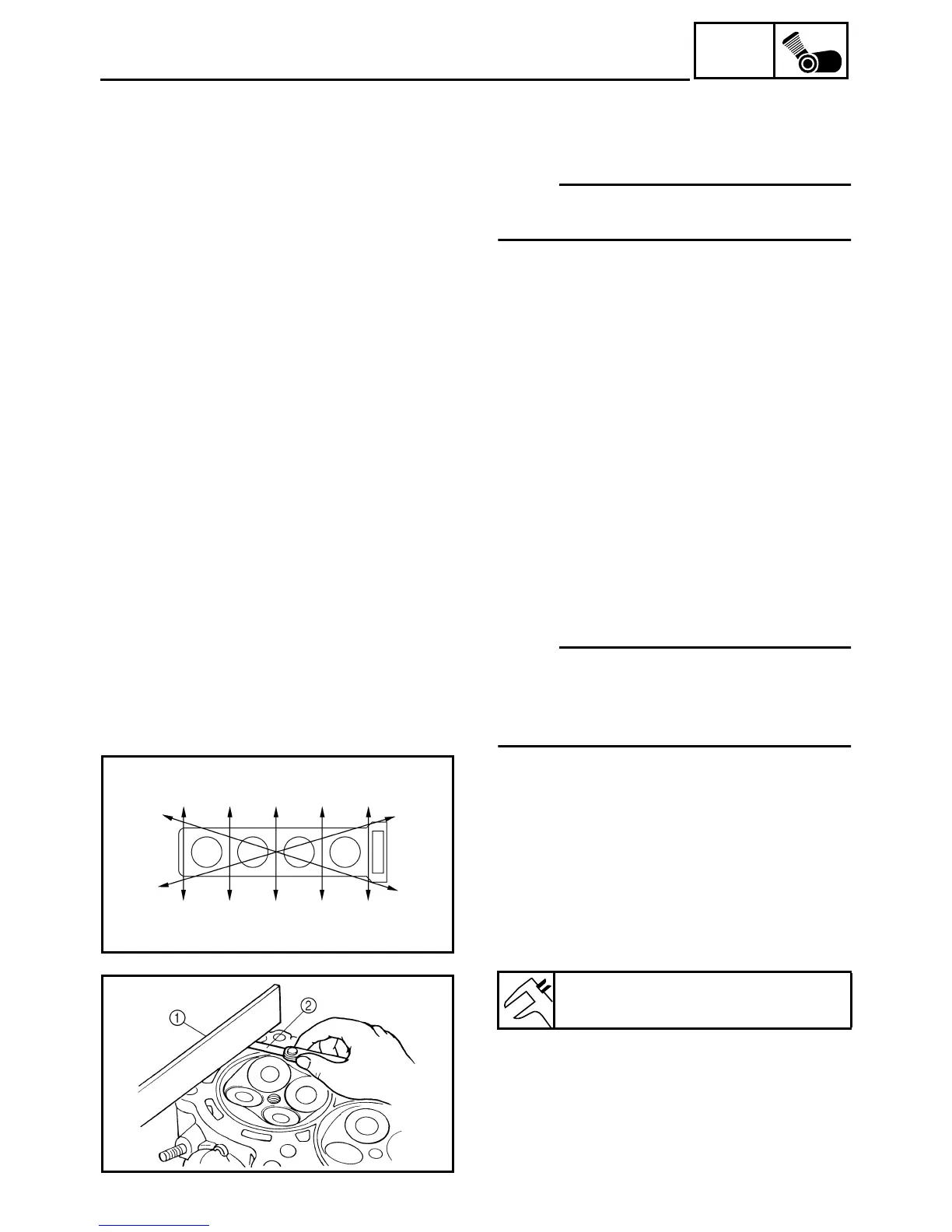

3. Measure:
• cylinder head warpage
Out of specification
→
Resurface the cylin-
der head.
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Place a straightedge
1
and a thickness
gauge
2
across the cylinder head.
b. Measure the warpage.
c. If the limit is exceeded, resurface the cylin-
der head as follows.
Maximum cylinder head warpage
0.1 mm (0.004 in)
