4 - 28
CHAS
FRONT AND REAR BRAKES
5. Check:
brake hoses
Cracks/damage/wear Replace.
EAS00606

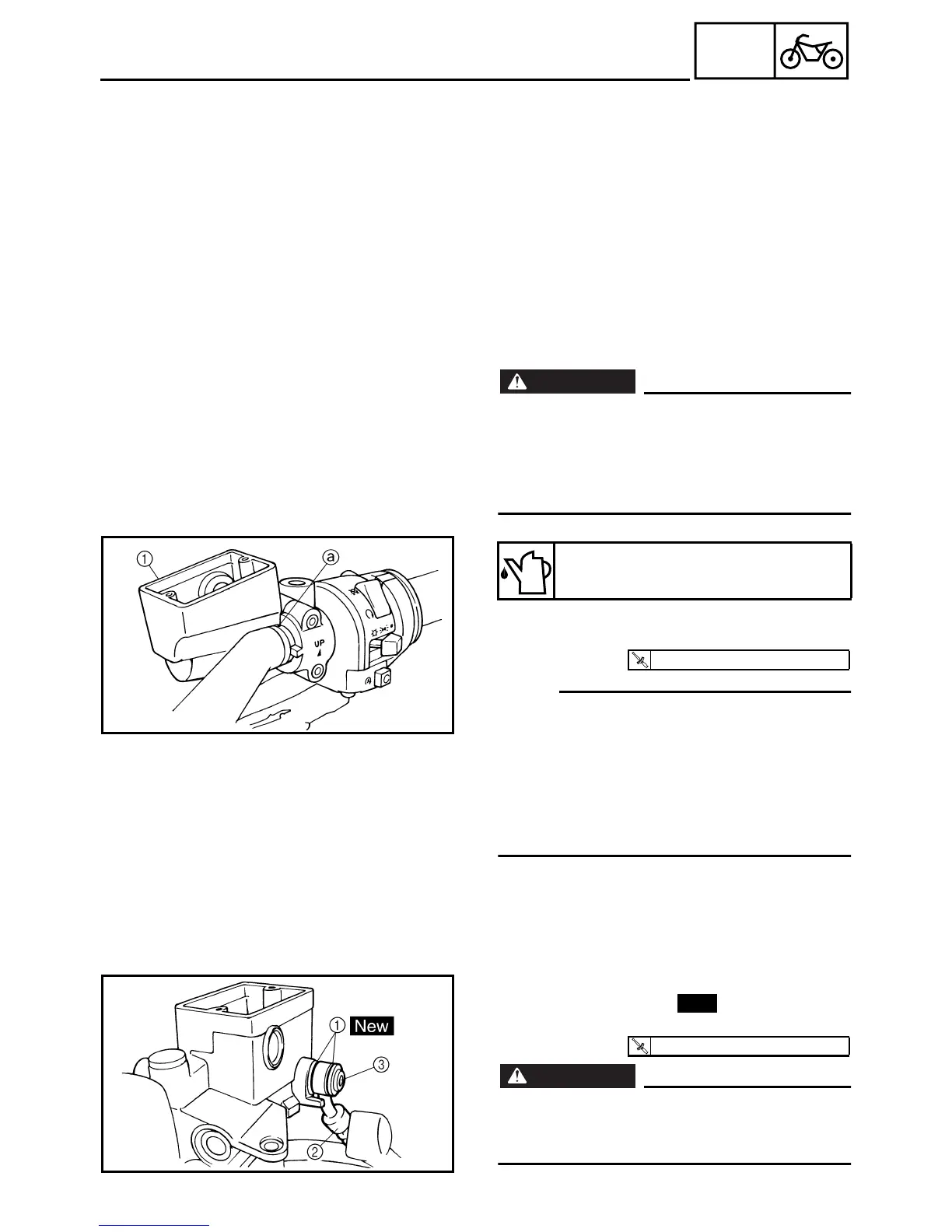

ASSEMBLING AND INSTALLING THE
FRONT BRAKE MASTER CYLINDER
WARNING
@
Before installation, all internal brake com-
ponents should be cleaned and lubricated
with clean or new brake fluid.
Never use solvents on internal brake
components.
1. Install:
brake master cylinder 1
NOTE:
@
Install the brake master cylinder holder with
the UP mark facing up.
Align the end of the brake master cylinder
holder with the punch mark a in the right
handlebar.
First, tighten the upper bolt, then the lower
bolt.
Recommended brake fluid
DOT 4
T
R
.
.
10 Nm (1.0 m · kg, 7.2 ft · lb)
2. Install:
copper washers 1
brake hose 2
union bolt 3
WARNING
@
Proper brake hose routing is essential to
insure safe motorcycle operation. Refer to
CABLE ROUTING.
New
T
R
.
.
30 Nm (3.0 m · kg, 22 ft · lb)
