5 - 11
ENG
CAMSHAFTS
EAS00198
REMOVING THE CAMSHAFTS

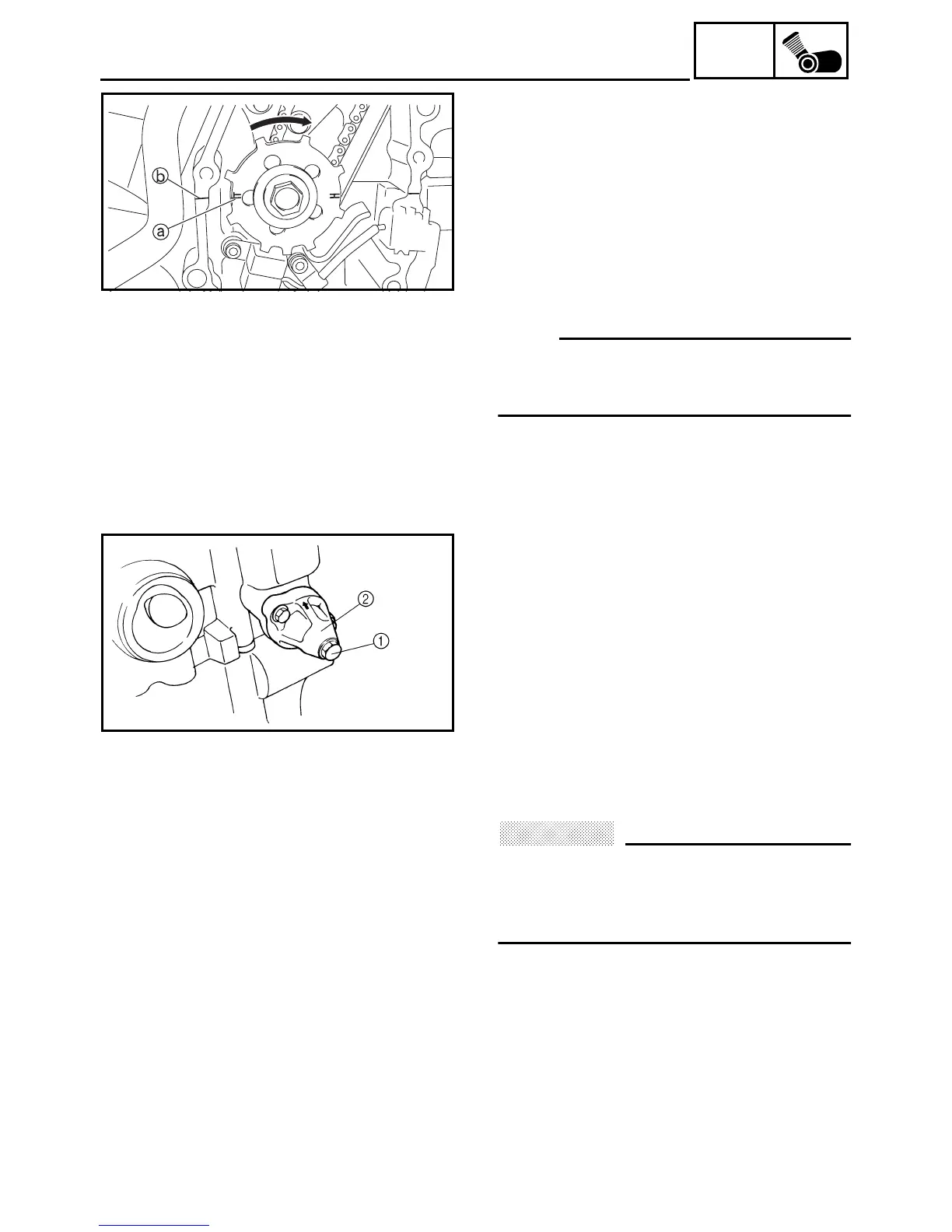

1. Align:
•“T mark on the pickup coil rotor
(with the crankcase mating surface)
▼▼▼ ▼▼▼▼▼ ▼▼▼ ▼▼▼ ▼▼▼ ▼▼▼
a. Turn the crankshaft clockwise.
b. When piston #1 is at TDC on the compres-
sion stroke, align the T mark
a
on the
pickup coil rotor with the crankcase mating
surface
b
.
NOTE:
@
TDC on the compression stroke can be found
when the camshaft lobes are turned away from
each other.
▲▲▲ ▲▲▲▲▲ ▲▲▲ ▲▲▲ ▲▲▲ ▲▲▲
2. Loosen:
cap bolt
1
3. Remove:
timing chain tensioner
2
gasket
4. Remove:
camshaft caps
dowel pins
CAUTION:
@
To prevent damage to the cylinder head,
camshafts or camshaft caps, loosen the
camshaft cap bolts in stages and in a criss-
cross pattern, working from the outside in.
