REAR SHOCK ABSORBER ASSEMBLY AND RELAY
ARM
EAS00685

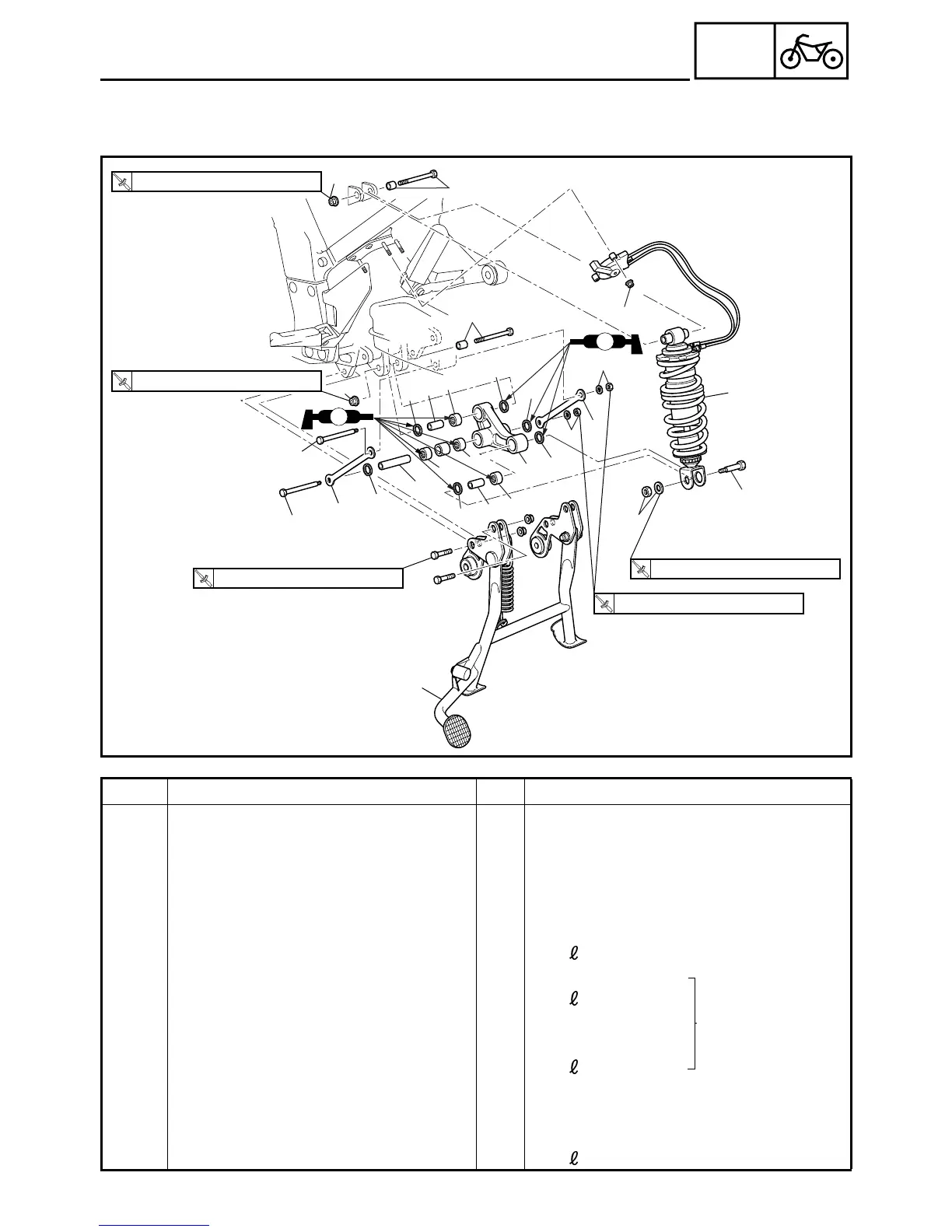

REAR SHOCK ABSORBER ASSEMBLY AND RELAY ARM
5
5
8
2
2
3
3
4
13
11
13
10
14
13
13
13
3
3
4
15
15
13
12
14
1
(3)
7
8
LS
9
6
LS
T
R
.
.
64 Nm (6.4 m
•
kg, 46 ft
•
Ib)
T
R
.
.
40 Nm (4.0 m
•
kg, 29 ft
•
Ib)
T
R
.
.
40 Nm (4.0 m
•
kg, 29 ft
•
Ib)
T
R
.
.
48 Nm (4.8 m
•
kg, 35 ft
•
Ib)
T
R
.
.
55 Nm (5.5 m
•
kg, 40 ft
•
Ib)
Order Job/Part Q’ty Remarks
Removing the rear shock absorber
assembly and relay arm
Remove the parts in the order listed.
Rear wheel Refer to “REAR WHEEL AND BRAKE
DISC”.
Mufflers/exhaust pipe Refer to “ENGINE” in chapter 5.
1Nut 3
2 Nut/washer/bolt 1/1/1 Bolt = 54 mm
(2.13 in)
Refer to
“REMOVING/
INSTALLING THE
REAR SHOCK
ABSORBER
ASSEMBLY”.
3 Nut/washer/bolt 2/2/2 Bolt = 117 mm
(4.61 in)
4 Connecting arm 2
5 Nut/bolt/spacer 1/1/1 Bolt = 105 mm
(4.13 in)
6 Rear shock absorber assembly 1
7 Centerstand 1
8 Nut/bolt/spacer 1/1/1 Bolt = 76 mm (2.99 in)
To Next Page
