4 - 87
CHAS
REAR SHOCK ABSORBER ASSEMBLY AND RELAY
ARM
2. Check:
• bearings
• oil seals
Damage/pitting → Replace.
3. Check:
• spacers
Damage/scratches → Replace.
INSTALLING THE RELAY ARM
1. Lubricate:
• spacers
• bearings

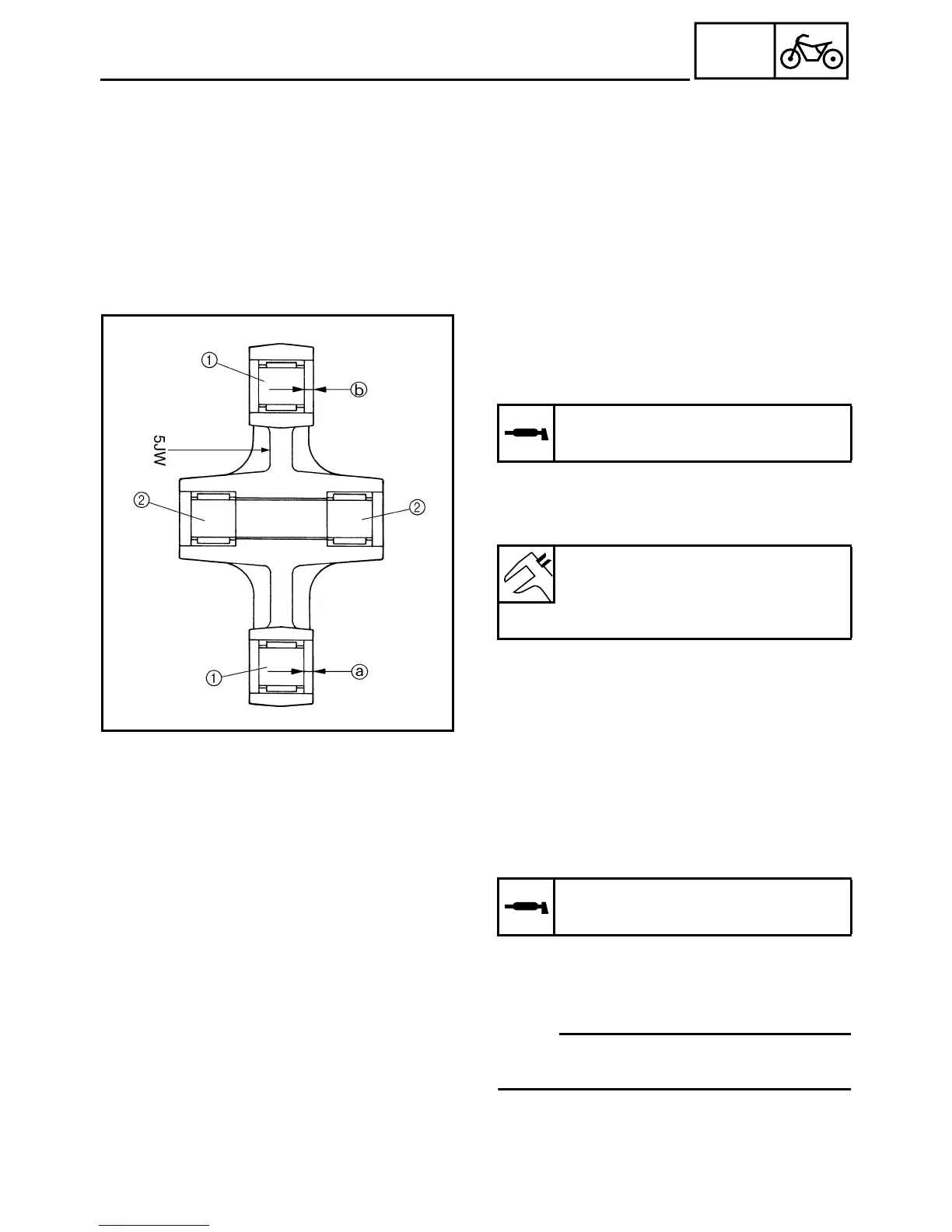

2. Install:
• bearing 1, 2
(to the relay arm)
Recommended lubricant
Lithium soap base grease
Installed depth
a
4.0 mm (0.16 in)
Installed depth
b
4.5 mm (0.18 in)
EAS00698
INSTALLING THE REAR SHOCK
ABSORBER ASSEMBLY
1. Lubricate:
• spacers
• bearings
Recommended lubricant
Lithium soap base grease
2. Install:
• rear shock absorber assembly
NOTE:
@
When installing the rear shock absorber
assembly, lift up the swingarm.
