6 - 5
COOL
OIL COOLER
EAS00457
OIL COOLER

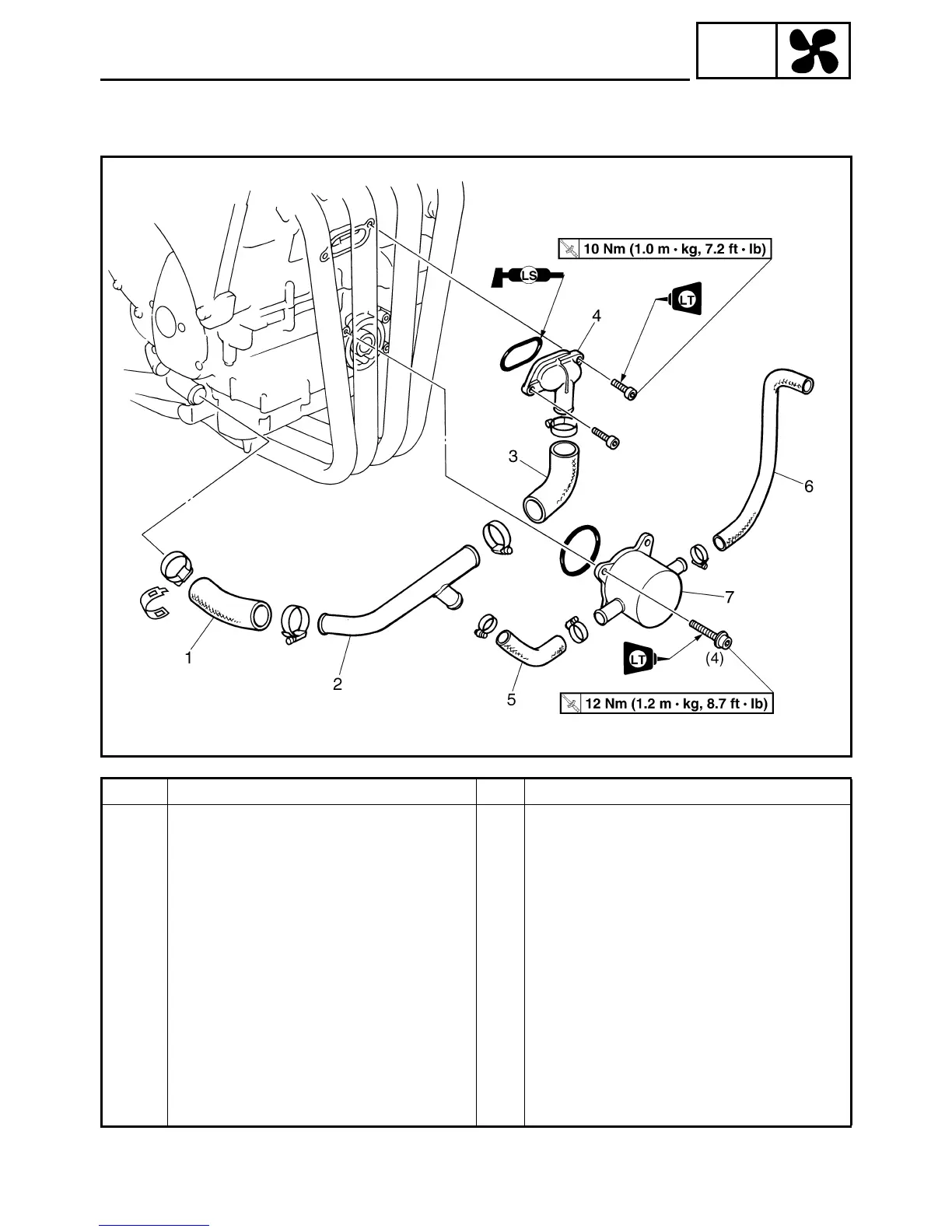

Order Job/Part Q’ty Remarks
Removing the oil cooler
Remove the parts in the order listed.
Engine oil Drain.
Refer to “CHANGING THE ENGINE OIL”
in chapter 3.
Radiator assembly Refer to “RADIATOR”.
1 Water pump outlet hose 1
2 Water pump outlet pipe 1
3 Water jacket joint inlet hose 1
4 Water jacket joint 1
5 Oil cooler inlet hose 1
6 Oil cooler outlet hose 1
7 Oil cooler 1
For installation, reverse the removal
procedure.
