4 - 9
CHAS

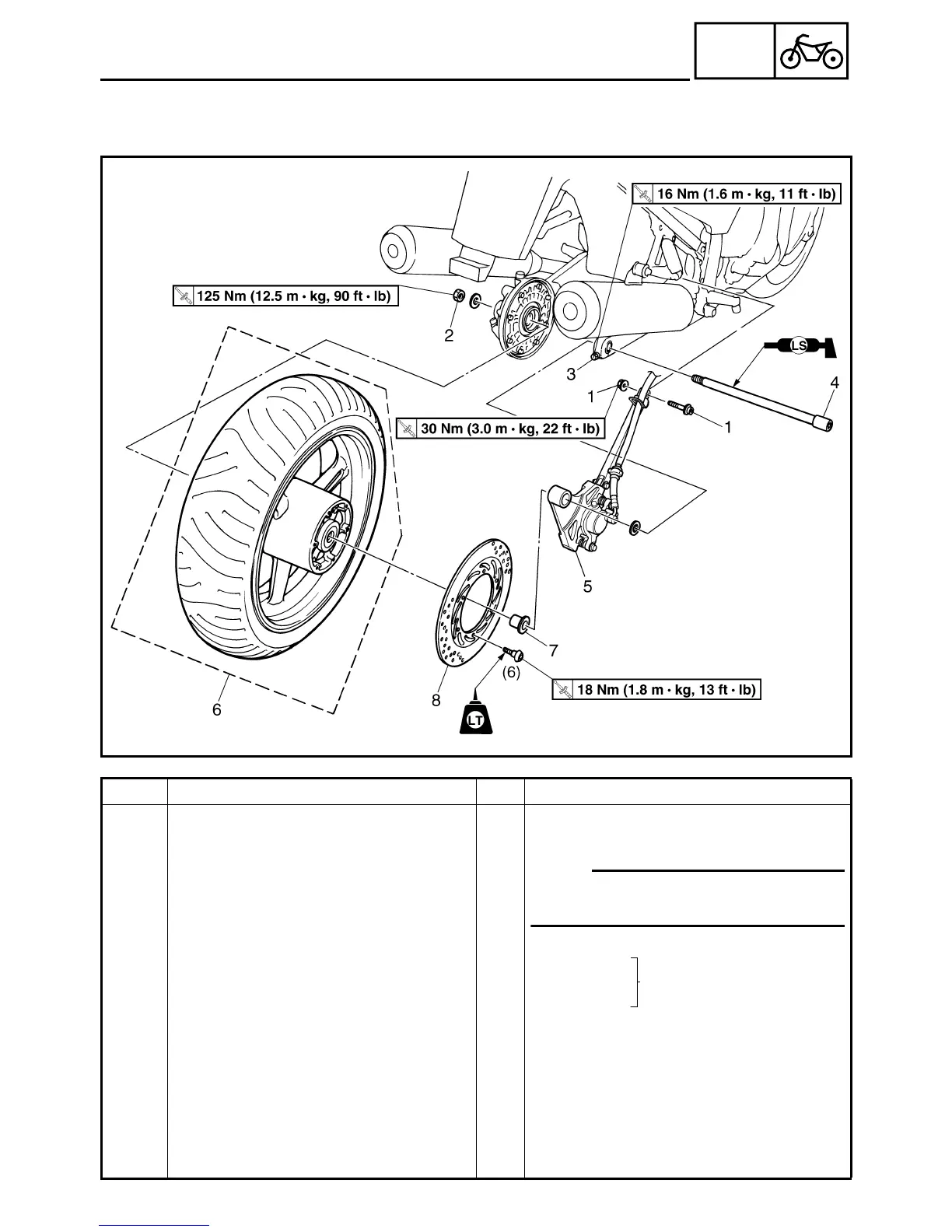

REAR WHEEL AND BRAKE DISC
EAS00551
REAR WHEEL AND BRAKE DISC
Order Job/Part Q’ty Remarks
Removing the rear wheel and brake
disc
Remove the parts in the order listed.
NOTE:
@
Place the motorcycle on a suitable stand
so that the rear wheel is elevated.
1 Brake torque rod nut/bolt 1/1
Refer to “INSTALLING
THE REAR WHEEL”.
2 Wheel axle nut 1
3 Wheel axle pinch bolt 1 Loosen.
4 Rear wheel axle 1
5 Rear brake caliper 1
6 Rear wheel 1
7 Collar 1
8 Brake disc 1
For installation, reverse the removal
procedure.
