4 - 57
CHAS
EAS00314

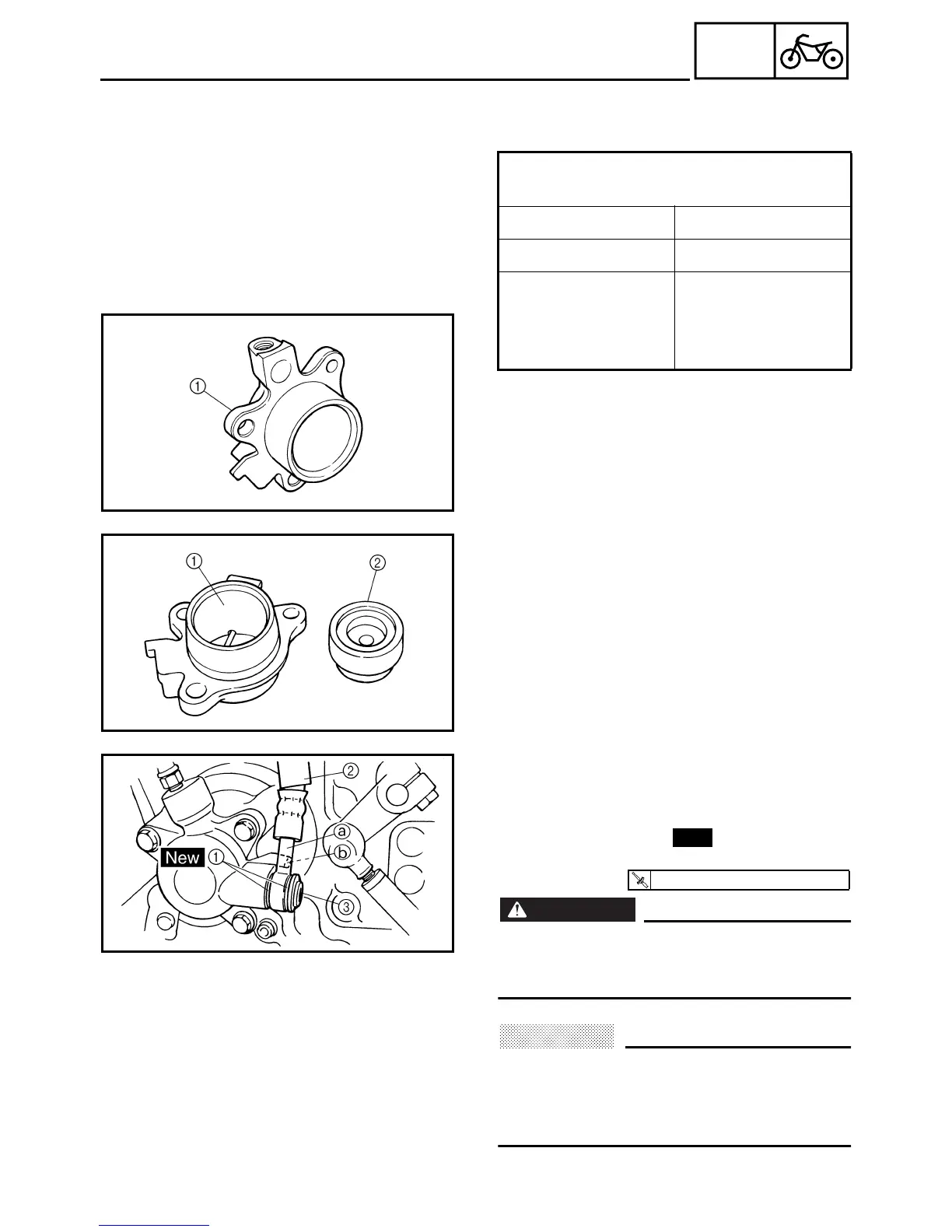

CHECKING THE CLUTCH RELEASE
CYLINDER
1. Check:
• clutch release cylinder body
1
Cracks/damage
→
Replace the clutch
release cylinder.
Recommended clutch component
replacement schedule
Piston seal Every two years
Clutch hose Every two years
Clutch fluid
Every two years
and whenever the
clutch is disassem-
bled
2. Check:
• clutch release cylinder
1
• clutch release cylinder piston
2
Rust/scratches/wear
→
Replace the clutch
release cylinder and clutch release cylinder
piston as a set.
EAS00315
ASSEMBLING AND INSTALLING THE
CLUTCH RELEASE CYLINDER
1. Install:
• copper washers
1
• clutch hose
2
• union bolt
3
WARNING
@
Proper clutch hose routing is essential to
insure safe motorcycle operation. Refer to
“CABLE ROUTING”.
CAUTION:
@
When installing the clutch hose onto the
clutch release cylinder, make sure the
clutch pipe
a
touches the projection
b
on
the clutch release cylinder.
New
T
R
.
.
30 Nm (3.0 m · kg, 22 ft · lb)
HYDRAULIC CLUTCH
