Yamaha FX10X - Special Tools; For Engine Service; For Tune up

1-4
GEN
INFO
SPECIAL TOOLS
SPECIAL TOOLS
Some special tools are necessary for a completely accurate tune-up and
assembly. Using the correct special tool will help prevent damage that can
be caused by the use of improper tools or improvised techniques.
NOTE:
• Be sure to use the correct part number when ordering the tool, since the
part number may differ according to country.
• For USA and Canada, use part number starting with “YB-”, “YM-”, “YU-”
or “YS-”.
• For others, use part number starting with “90890-”.

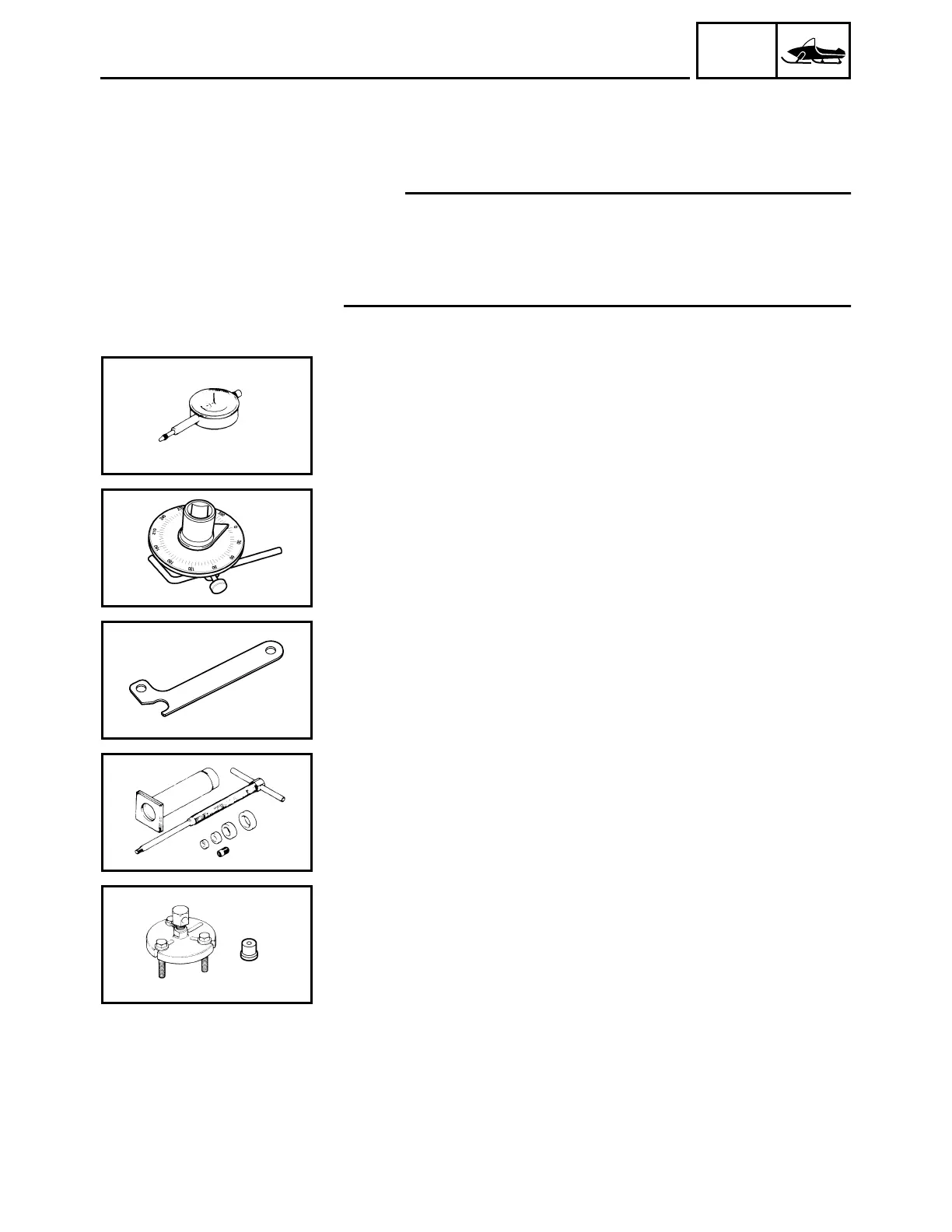

FOR TUNE UP
• Dial indicator gauge
P/N: YU-A8428
• Dial gauge
P/N: 90890-03097
This gauge is used for runout measurements.
• Angle gauge
Use goods on the market.
This tool is used to tighten to specified angles.
• Steering linkage alignment plate
P/N: YS-01531
90890-01531
Locks steering column and pivot arm in place while adjusting the steering
linkage for front-end alignment.
FOR ENGINE SERVICE
• Piston pin puller
P/N: YU-01304
• Piston pin puller set
P/N: 90890-01304
This tool is used to remove the piston pin.
• Heavy duty puller
P/N: YU-33270-B
• Flywheel puller
P/N: 90890-01362
• Crankshaft protector
P/N: YM-33282
• Flywheel puller attachment
P/N: 90890-04089
These tools are used to remove the magneto rotor.
