Yamaha FX10X - Headlight Beam Switch

8-24
– +
ELEC
LIGHTING SYSTEM
BULB(S)
NOTE:
Do not check any of the lights that use LEDs.

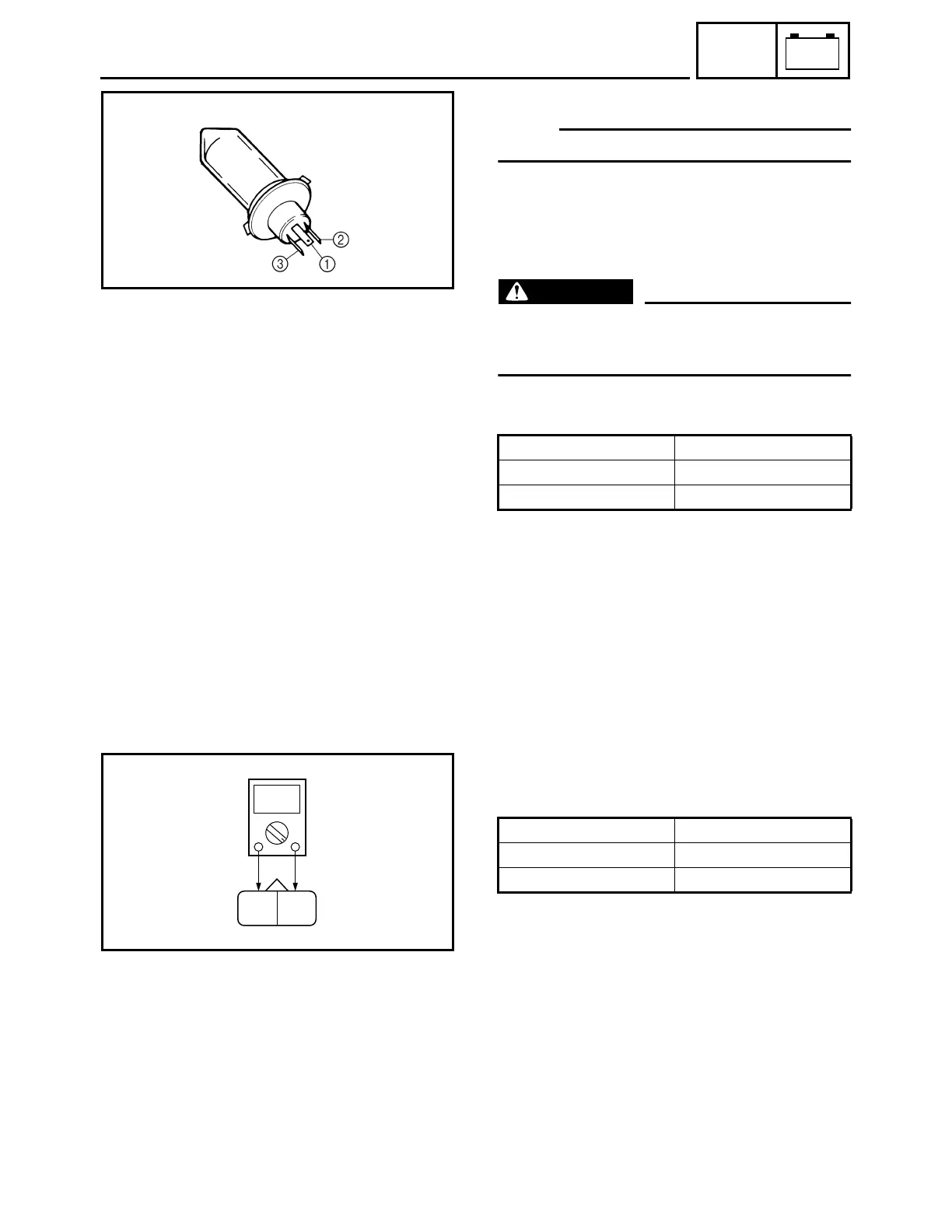

1.Remove:
• Headlight bulb
2.Connect:
• Pocket tester
(to the bulb terminals)
WARNING
Keep flammable products and your hands away
from the bulb while it is on; it will be hot. Do not
touch the bulb until it cools down.
3.Check:
• Bulb(s)
HEADLIGHT BEAM SWITCH
1.Disconnect:
• Headlight beam switch coupler
2.Connect:
• Pocket tester
(to the headlight beam switch coupler)
Terminal Continuity
1
–
3
Yes
2
–
3
Yes
3.Check:
• Headlight beam switch continuity
Faulty → Replace the left handlebar switch.
Switch position Continuity
HI Yes
LO No
LG
+–
Ω × 1
