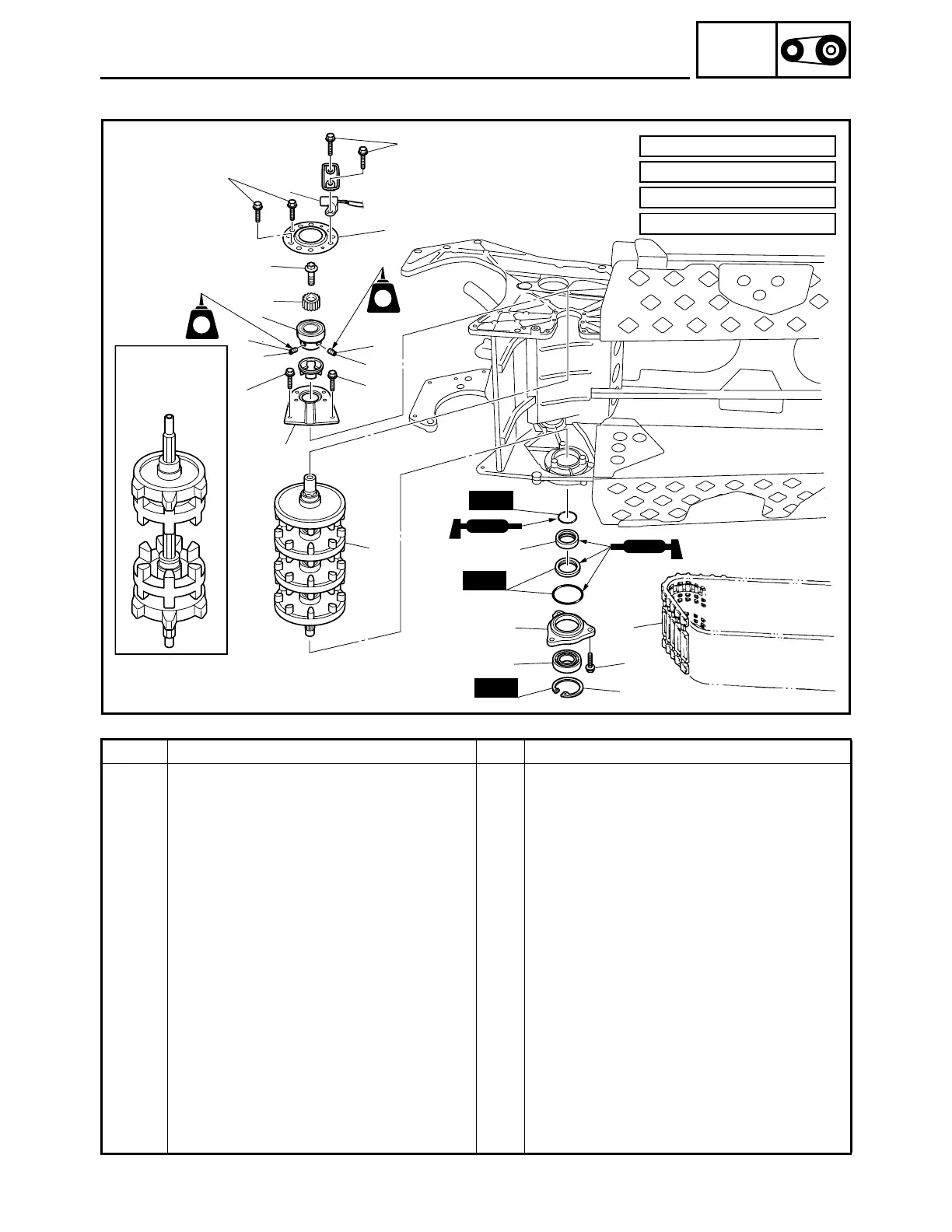

FRONT AXLE AND TRACK
FRONT AXLE AND TRACK
Order Job name/Part name
Q’ty Remarks
Front axle and track removal Remove the parts in the order listed below.
Drive chain Refer to “DRIVE CHAIN”.
Slide rail suspension Refer to “SLIDE RAIL SUSPENSION”.
Secondary sheave Refer to “SECONDARY SHEAVE”.
1 Speed sensor 1
2 Bearing housing 1
3 Gear unit 1
4 Set bolt 2
5Bearing 1
6 Bearing housing 1
7 Bearing housing 1
8 Circlip 1
9Bearing 1
10 Front axle assembly 1
11 Spacer 1
12 Track 1
For installation, reverse the removal proce-
dure.
1
2
3
5
6
11
10
4
4
7
9
8
12
Ë
É
É
Ê
Ê
É
(3)
New
New
New
È
È
LT
LT
FX10MT/
FX10MTR/
FX10MTRA
9 Nm (0.9 m
• kg, 6.5 ft • lb)
È:
40 Nm (4.0 m
• kg, 29 ft • lb)
Ë:
24 Nm (2.4 m
• kg, 17 ft • lb)
É:
30 Nm (3.0 m
• kg, 22 ft • lb)
Ê:
