Yamaha FX10X - Brake Caliper Assembly

4-38
POWR
TR
BRAKE
1.Inspect:
• Brake caliper pistons
Scratches/rust/wear → Replace the caliper
assembly.
• Brake caliper cylinder
Wear/scratches → Replace the caliper
assembly.
• Brake caliper body
Cracks/damage → Replace.
• Brake fluid delivery passage (caliper body)
Blow out with compressed air.
WARNING
Replace the piston seals and piston dust seals
whenever a caliper is disassembled.
BRAKE CALIPER ASSEMBLY
WARNING
• All internal parts should be cleaned only with
new brake fluid.
• Internal parts should be lubricated with brake
fluid when installed.
• Replace the piston seals and piston dust
seals whenever a caliper is disassembled.
Recommended brake fluid:
DOT 4

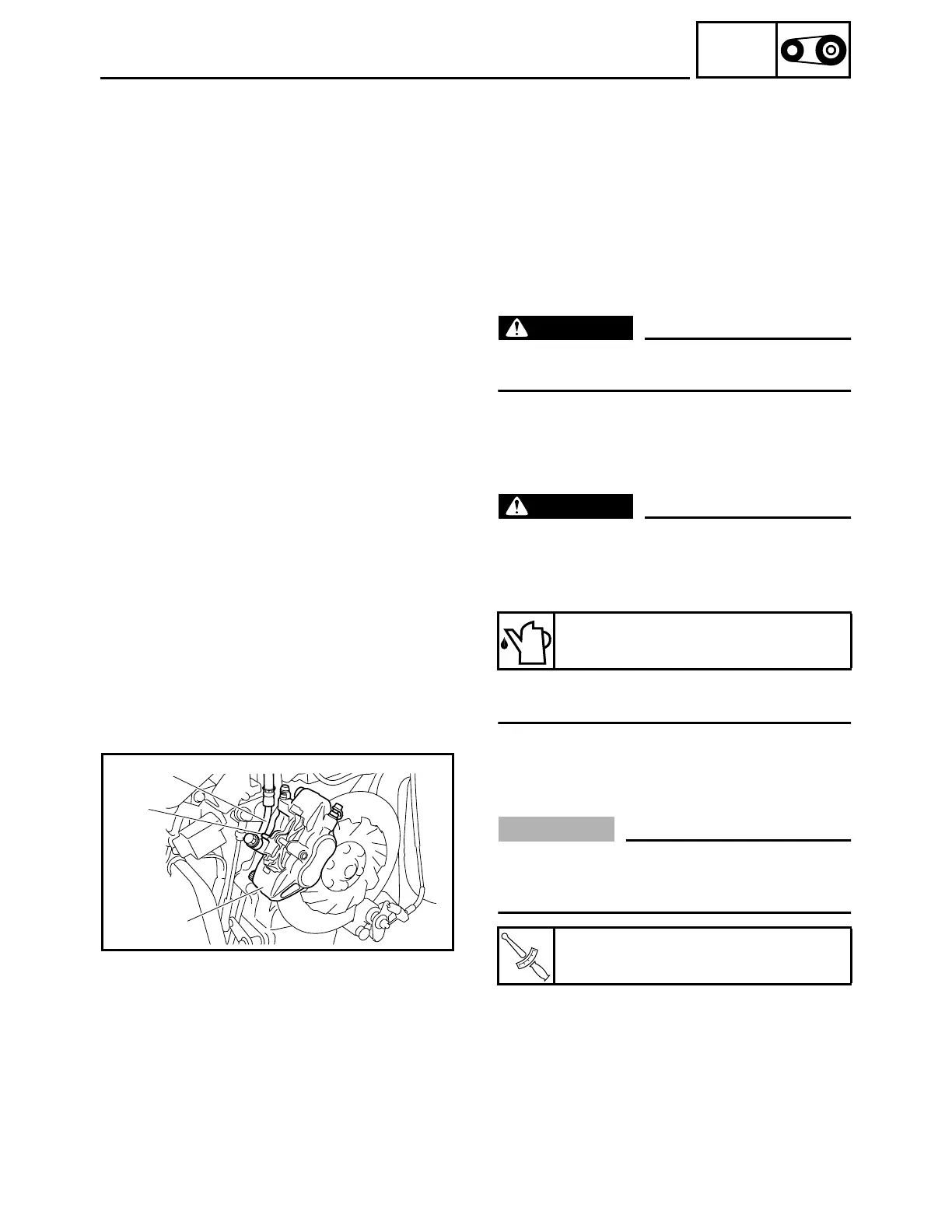

BRAKE CALIPER INSTALLATION
1.Install:
• Brake hose 1
CAUTION:
When installing the brake hose
1
onto the
brake caliper
2
, make sure that the brake pipe
touches the projection
a
on the brake caliper.
T
R
.
.
Brake hose union bolt:
30 Nm (3.0 m · kg, 22 ft · lb)
a
1
2
