Yamaha FX10X - Throttle Body

7-28
FI
THROTTLE BODY
THROTTLE BODY
Order Job name/Part name
Q’ty Remarks

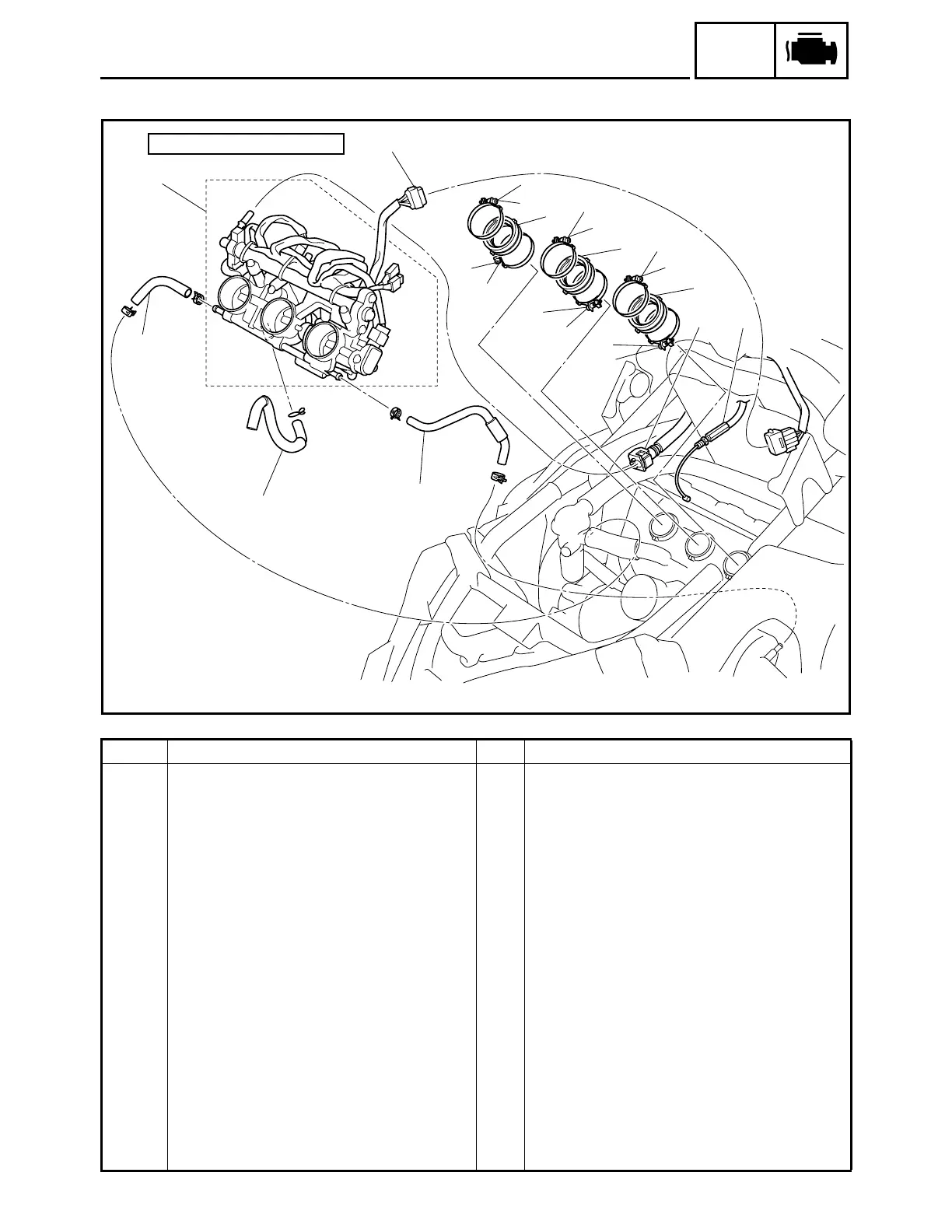

Throttle body removal Remove the parts in the order listed below.
Coolant Drain.
Refer to “COOLING SYSTEM” in CHAPTER
2.
Steering column Refer to “STEERING” in CHAPTER 3.
Radiator Refer to “RADIATOR” in CHAPTER 6.
Air filter case assembly Refer to “AIR FILTER CASE”.
1 Fuel injection system sub-wire harness
coupler
1 Disconnect.
2 Fuel hose 1 Disconnect.
3 Air vent hose 1
4 Throttle cable 1
5 Throttle body heater inlet hose 1
6 Throttle body heater outlet hose 1
7 Throttle body joint clamp screw 6 Loosen.
8 Throttle body assembly 1
9 Throttle body joint 3
For installation, reverse the removal proce-
dure.
1
2
4
5
6
3
8
9
9
9
È
È
È
È
È
È
3 Nm (0.3 m
• kg, 2.2 ft • lb)
È:
7
7
7
7
7
7
