Yamaha FX10X - Chapter 6; Water Pump

6-7
COOL
WATER PUMP
WATER PUMP
Order Job name/Part name
Q’ty Remarks

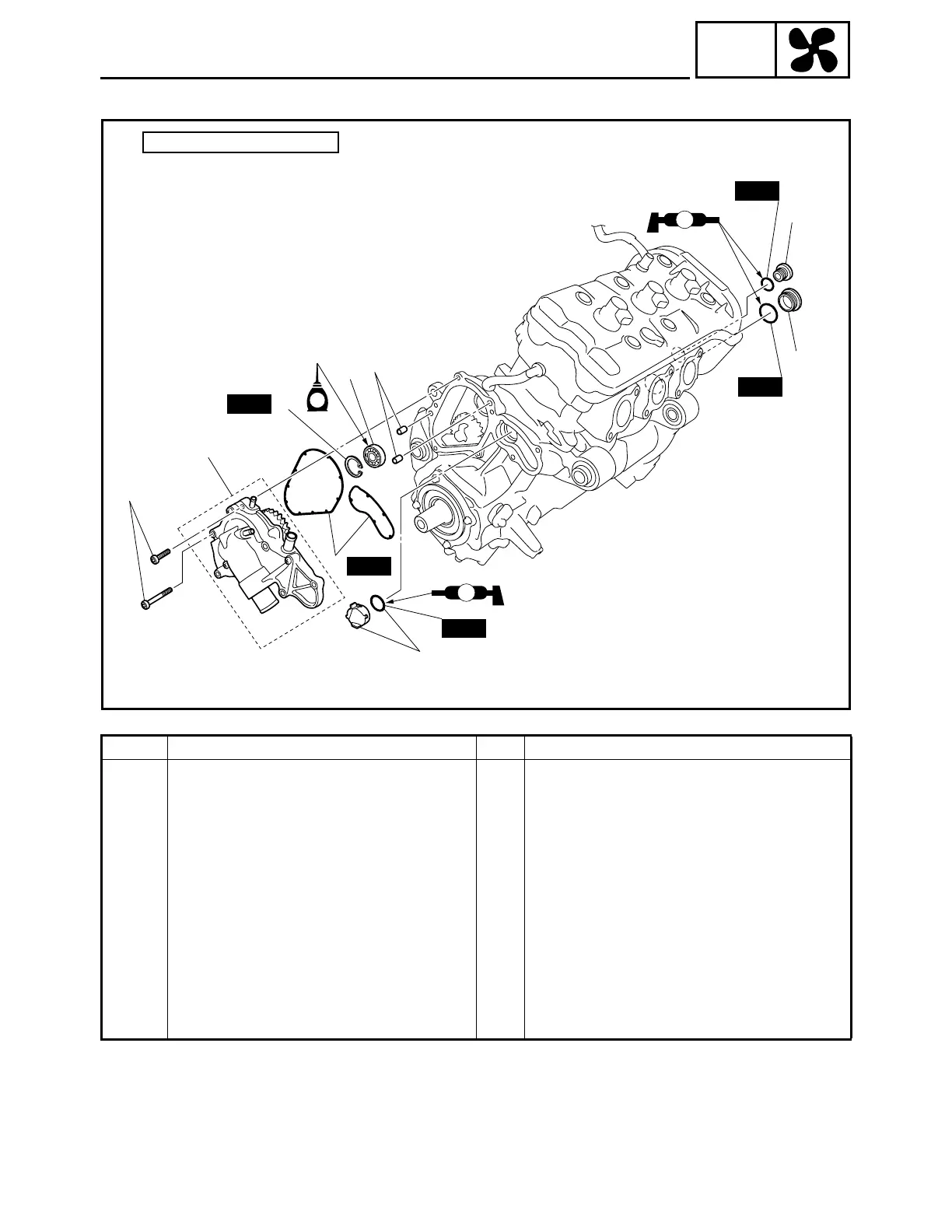

Water pump removal Remove the parts in the order listed below.
Engine assembly Refer to “ENGINE ASSEMBLY” in CHAPTER
5.
1 Timing mark accessing screw 1
2 Crankshaft end cover 1
3 Water pump assembly 1
4Gasket 2
5 Dowel pin 2
6 Plug/O-ring 1/1
7 Circlip 1
8Bearing 1
For installation, reverse the removal proce-
dure.
È
5
8
7
4
6
3
1
2
New
New
New
New
New
E
LS
LS
12 Nm (1.2 m
• kg, 8.7 ft • lb)
È:
(3)
(4)
