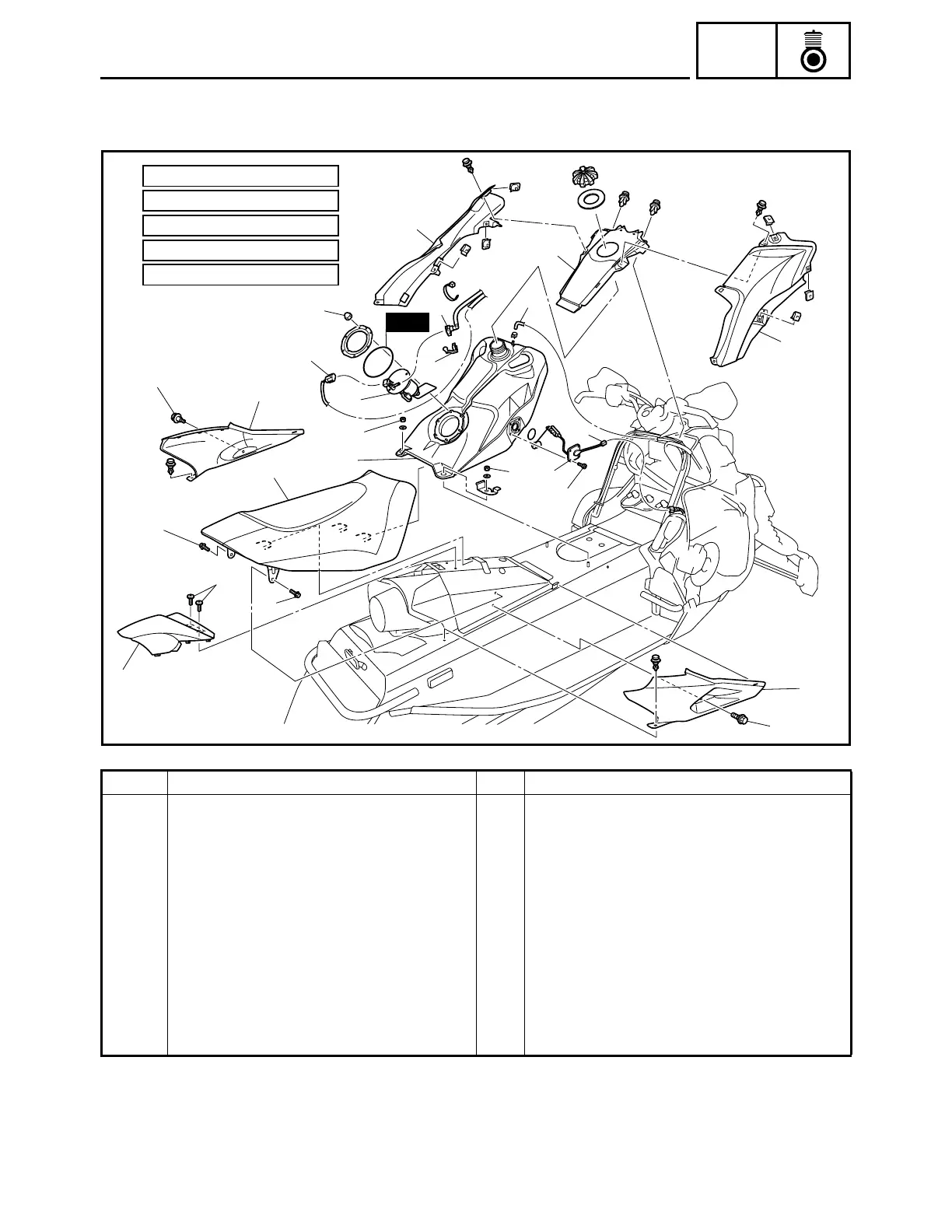

SEAT AND FUEL TANK
Order Job name/Part name
Q’ty Remarks
Seat and fuel tank removal
Remove the parts in the order listed below.
Side cover Refer to “COVERS” in CHAPTER 3.
1 Rear side cover (left and right) 2
2Seat 1
3 Rear upper cover 1
4 Fuel tank cover (left and right) 2
5 Fuel tank upper cover 1
6 Fuel pump coupler 1 Disconnect.
7 Fuel hose connector holder 1
8 Fuel hose 1 Disconnect.
9 Fuel sender coupler 1 Disconnect.
10 Fuel tank breather hose 1 Disconnect.
New
Ê
Ê
É
É
Ë
Ë
Ì
È
Ì
1
2
3
4
4
(6)
1
6
5
10
11
7
(4)
(3)
(3)
8
13
9
12
23 Nm (2.3 m
• kg, 17 ft • lb)
Ì:
4 Nm (0.4 m
• kg, 2.9 ft • lb)
7 Nm (0.7 m
• kg, 5.1 ft • lb)
È:
É:
8 Nm (0.8 m
• kg, 5.8 ft • lb)
10 Nm (1.0 m
• kg, 7.2 ft • lb)
Ê:
Ë:
