8-13
– +
ELEC
ELECTRICAL STARTING SYSTEM

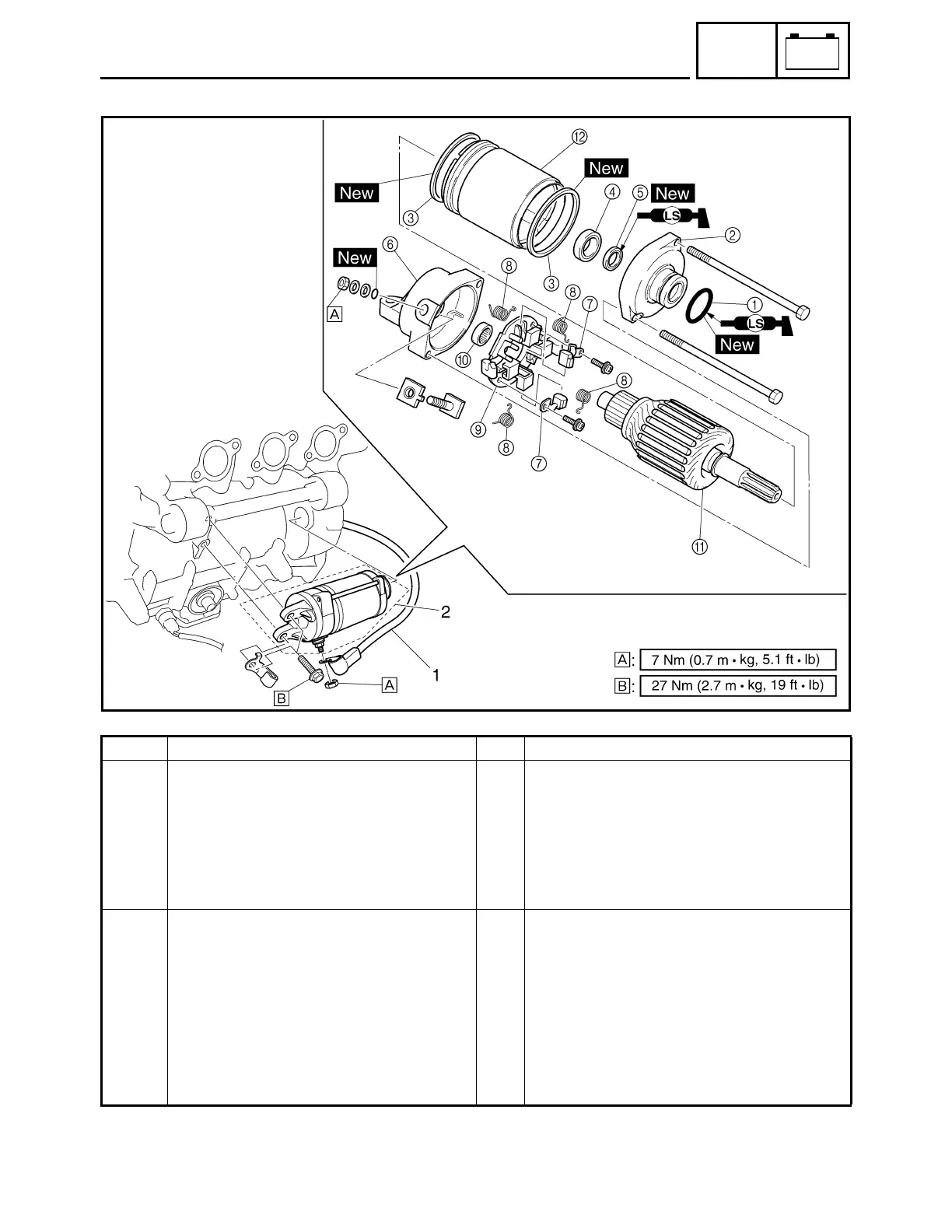

STARTER MOTOR
Order Job name/Part name
Q’ty Remarks
Starter motor removal Remove the parts in the order listed below.
Engine assembly Refer to “ENGINE ASSEMBLY” in CHAPTER
5.
1 Starter motor lead 1
2 Starter motor assembly 1
For installation, reverse the removal proce-
dure.
Starter motor disassembly Remove the parts in the order listed below.
1 O-ring 1
2 Front bracket 1
3 Gasket 2
4 Bearing 1
5 Oil seal 1
6 Rear bracket 1
7 Brush 2
8 Brush spring 4
To Next Page
