Yamaha FX10X - Exhaust System Inspection

2-26
INSP
ADJ
EXHAUST SYSTEM INSPECTION
EXHAUST SYSTEM INSPECTION
1.Remove:
• Fuel tank
Refer to “SEAT AND FUEL TANK” in CHAP-
TER 5.
2.Inspect:

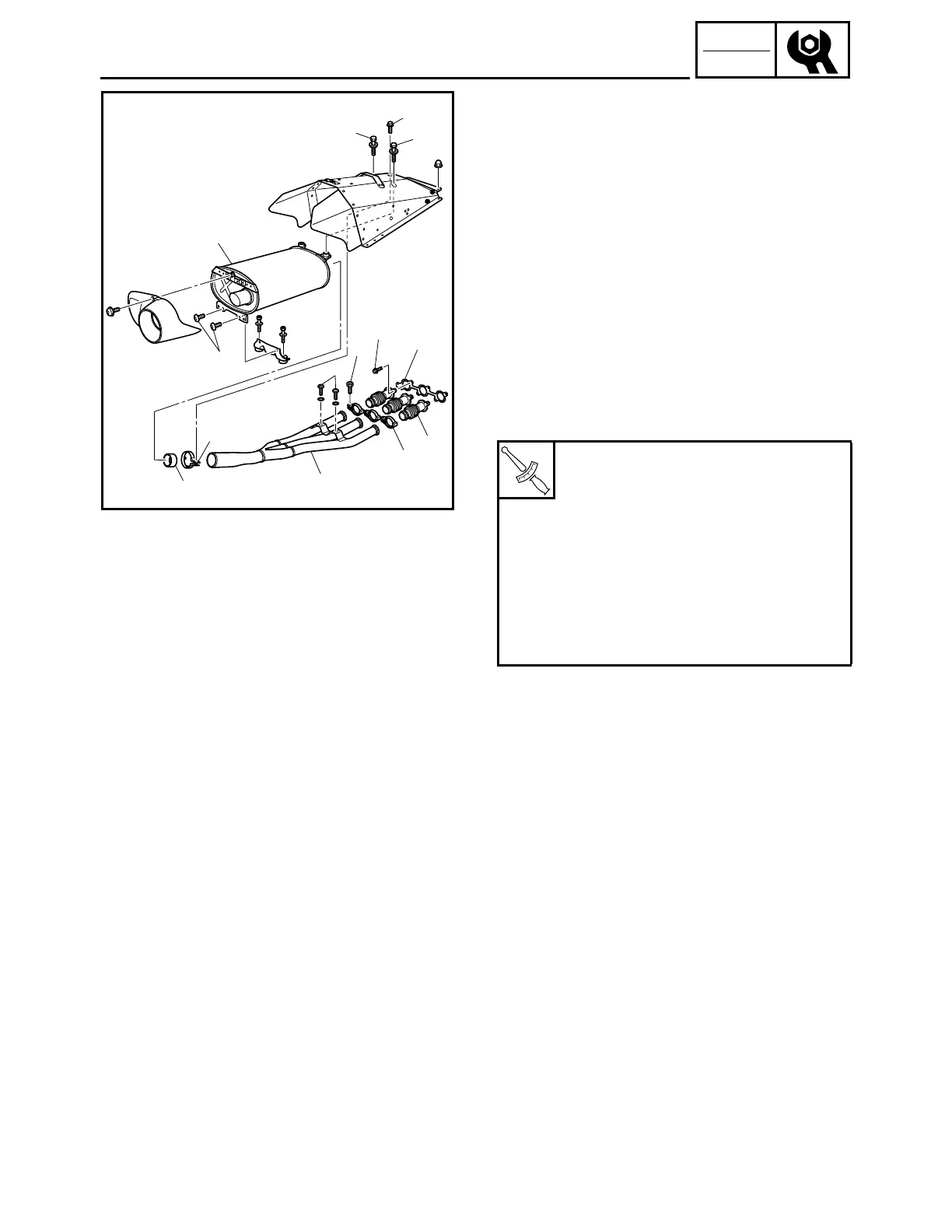

• Exhaust pipe joints
1
• Exhaust pipe 2
• Muffler 3
• Exhaust pipe bands 4
• Muffler band 5
Cracks/damage → Replace.
• Exhaust pipe joint gasket 6
• Muffler gasket 7
Exhaust gas leaks → Replace.
3.Inspect:
• Tightening torque
4.Install:
• Fuel tank
Refer to “SEAT AND FUEL TANK” in CHAP-
TER 5.
T
R
.
.
Exhaust pipe joint bolt
8
:
25 Nm (2.5 m · kg, 18 ft · lb)
Exhaust pipe band bolt
9
:
9 Nm (0.9 m · kg, 6.5 ft · lb)
Muffler bolt (rear side)
0
:
23 Nm (2.3 m · kg, 17 ft · lb)
Muffler bolt (front side)
A
:
23 Nm (2.3 m · kg, 17 ft · lb)
Muffler band bolt
B
:
20 Nm (2.0 m · kg, 14 ft · lb)
Exhaust pipe bolt
C
:
23 Nm (2.3 m · kg, 17 ft · lb)
A
8
9
B
A
5
2
C
6
7
3
0
1
(6)
(3)
4
