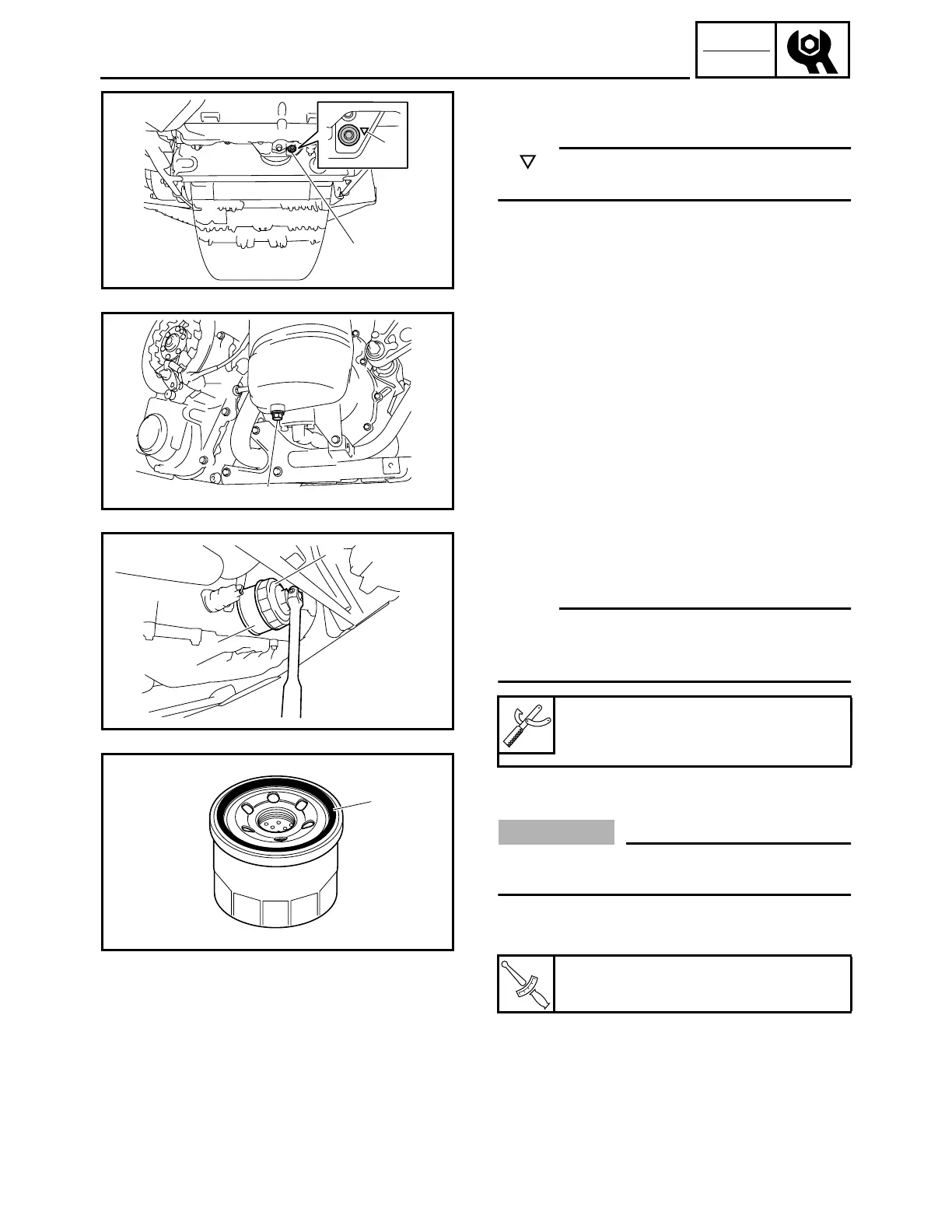

ENGINE OIL REPLACEMENT
9.Remove:
• Oil pan engine oil drain bolt 1
NOTE:
A “” mark a is stamped in the oil pan near the oil
pan drain bolt.
a
1
10.Remove:
• Oil tank engine oil drain bolt 1
11.Drain:
• Engine oil
(completely from the oil pan and oil tank)
12.If the oil filter cartridge is also to be replaced,
perform the following procedure.
1
Replacement steps:
• Remove the oil filter cartridge 1 with an oil filter
wrench
2.
NOTE:
Make sure that the O-ring is removed together with
the oil filter cartridge. If the O-ring remains attached
to the crankcase, oil leakage may occur.
• Apply a thin coat of engine oil onto the O-ring 3
of the new oil filter cartridge.
CAUTION:
Make sure that the O-ring
3
is positioned cor-
rectly in the groove of the oil filter cartridge.
• Tighten the new oil filter cartridge to specifica-
tion with an oil filter wrench.
Oil filter wrench:
90890-01469
YM-01469
T
R
.
.
Oil filter cartridge:
17 Nm (1.7 m · kg, 12 ft · lb)
