ELECTRICAL COMPONENTS
EAS20089
ELECTRICAL COMPONENTS
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1

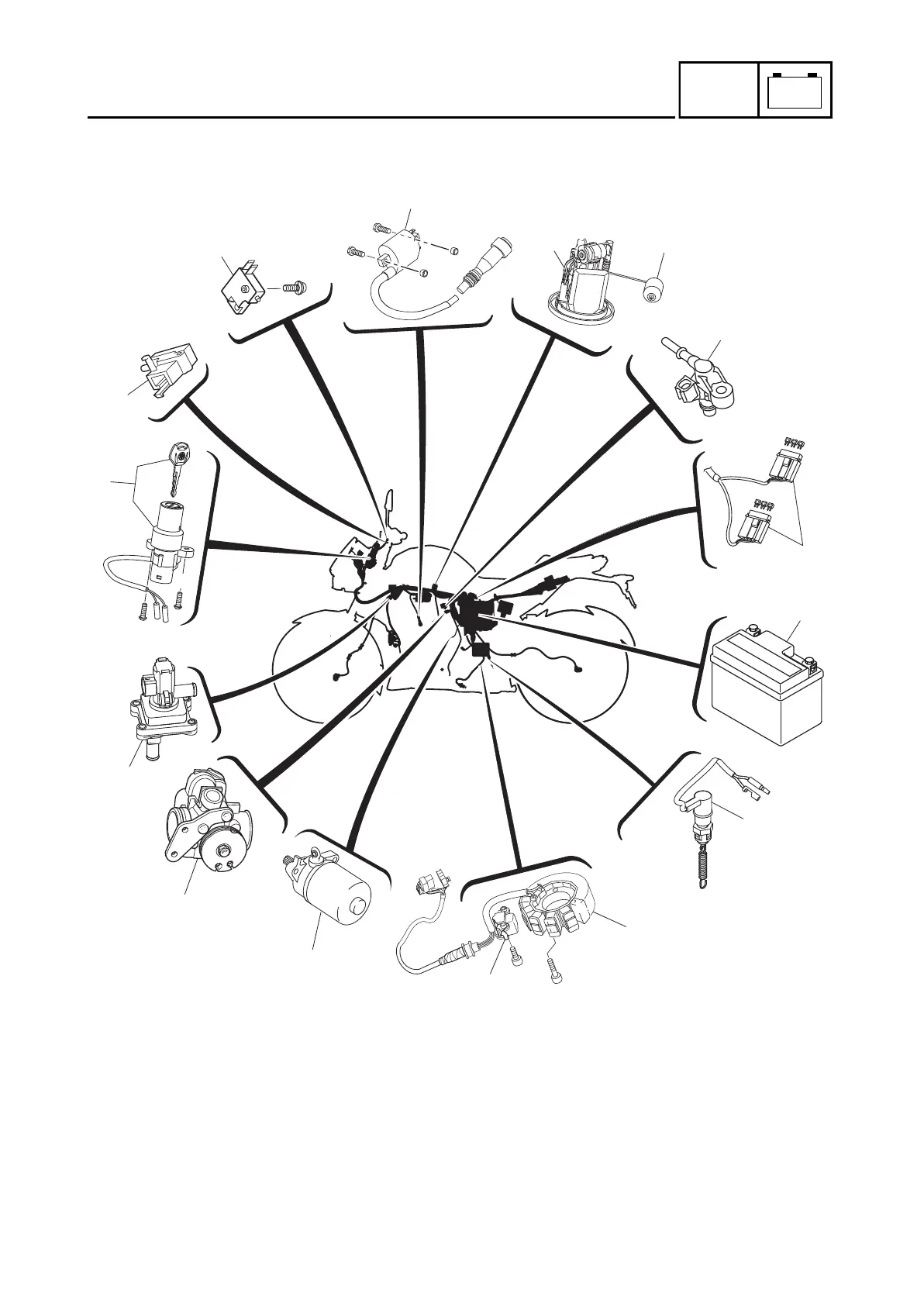

1. Main switch steering lock
2. Clutch switch
3. Front brake light switch
4. Ignition coil
5. Fuel sender
6. Fuel pump
7. Fuel injector
8. Fuse box
9. Battery
10.Rear brake light switch
11.AC magneto
12.Crankshaft position sensor
13.Starter motor
14.Throttle body sensor assembly
15.Air cut off valve
