Yamaha FZ 25 2021 - Handlebar Switches Identification

1-18
GEN
INFO
FEATURES
EAU1234R

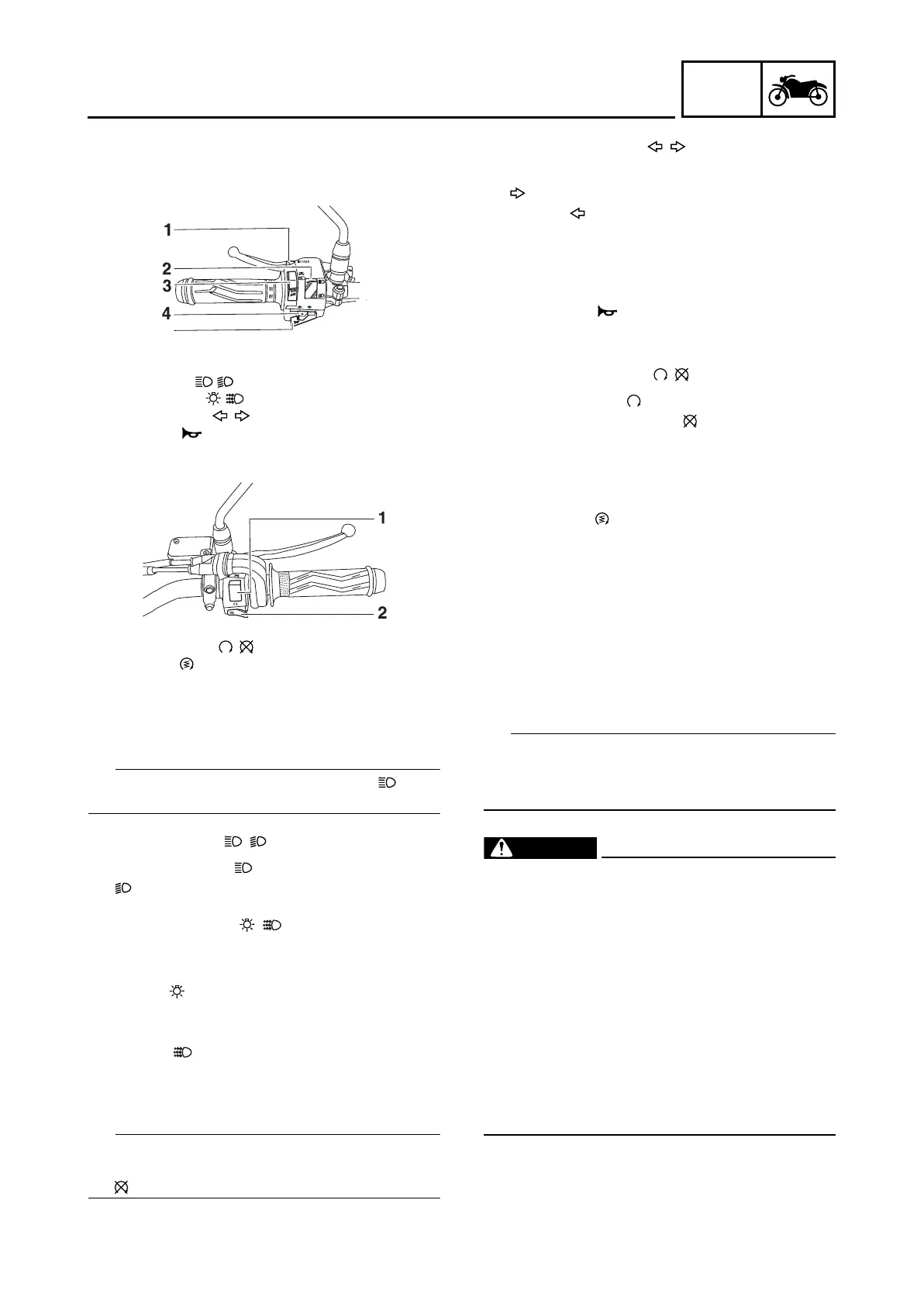

HANDLEBAR SWITCHES
Left
Right
EAU12362
Pass switch “PASS”
Press this switch to flash the headlight.
TIP
When the dimmer switch is set to “ ”, the
passing switch has no effect.
EAU12402
Dimmer switch “ / ”
Set this switch to “ ” for the high beam and
to “ ” for the low beam.
EAUE4381
Headlight switch “ / ”
This model is equipped with a headlight and a
daytime running li
ght (DRL).
Switch to “ ” to turn on the headlight.
When the headlight is turned on, the DRL is
di
mmed to auxil
iary mode.
Switch to “ ” to turn off the headlight and
DRL will come on to help maintain daylight vis-
ibility.
TIP
The lights will come on when the engine is
started and remain on until the key is set
to “ ”.
EAU12461
Turn signal switch “ / ”
To signal a right-hand turn, push this switch
to “ ”. To signal a left-hand turn, push this
switch to “ ”. When released, the switch
returns to the center position. To cancel the
turn signal li
ghts, push the switch in after it has
returned to the center position.
EAU12501
Horn switch “ ”
Press this switch to sound the horn.
EAU12664
Engine stop switch “ / ”
Set this switch to “ ” (run) before starting the
engine. Set this switch to “ ” (stop) to stop the
engine in case of an emergency, such as in
the event of an overturn
or if the throttle is
stuck.
EAU12713
Start switch “ ”
Push this switch to crank the engine with
the starter.
EAU15306
SIDESTAND
The sidestand is located on the left side of the
frame. Raise the sid
estand or lower it with your
foot while holding the vehicle upright.
TIP
The built-in sidestand switch is part of the igni-
tion circuit cut-off system, which cuts the
ignition in certain situations.
WARNING
EWA10242
The vehicle must not be ridden with the
sidestand down, or if the sidestand cannot
be properly moved up (or does not stay
up), otherwise the sidestand could contact
the ground and distract the operator,
resulting in a possible loss of control.
Yamaha’s ignition circuit cut-off system
has been designed to assist the operator in
fulfilling the responsibility of raising the
sidestand before starting off. Therefore,
check this system regularly and have a
Yamaha dealer repair it if it does not func-
tion properly.
FEATURES
1. Pass switch “PASS”
2. Dimmer switch “ / ”
3. Headlight switch “ / ”
4. Turn signal switch “ / ”
5. Horn switch “ ”
1. Engine stop switch “ / ”
2. Start switch “ ”
5
