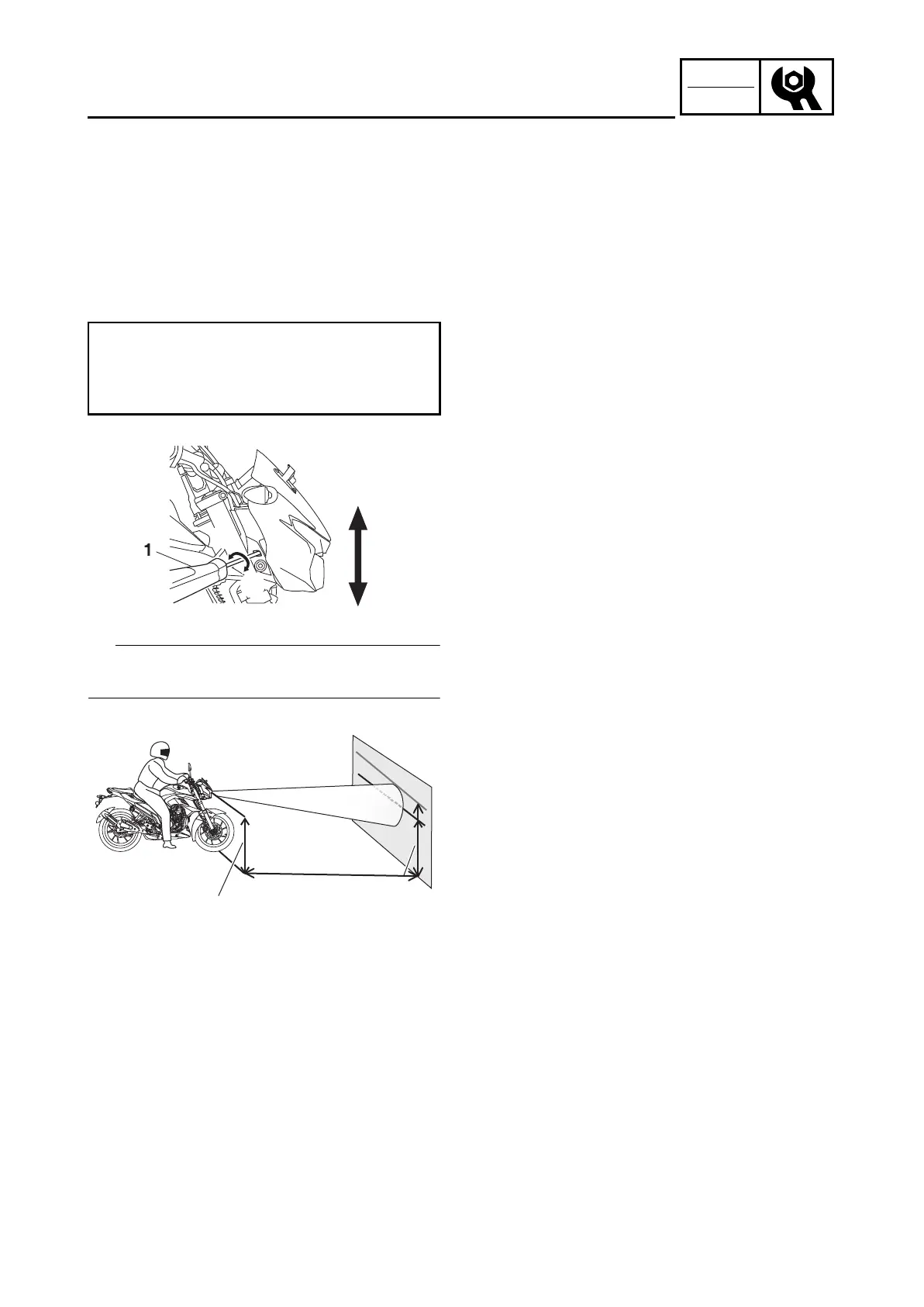

ADJUSTING THE HEADLIGHT BEAM
The following procedure applies to the adjust-
ment of the headlight beam.
Adjust the headlight beam by rotating the
headli
ght beam adjusting screw with the help
of philip screwdriver “1” in direction “a” or “b”
from right side of headlight.
TIP
o Valve cleara nce adjustment should be made on a cold eng ine, at room tem perature.
● Height at low beam line “a” : 67.6 cm
●
Height at low beam line “b” : 47.6 cm
Direction “a”
Headlight beam is raised.
Direction “b”
Headlight beam is lowered.
(a)
(b)
At Low Beam: 67.6 cm height
10 meter
75 kg
Single rider
Weight
a
b
