Yamaha FZ 25 2021 - Rear Wheel Service

4-11
CHAS
REAR WHEEL
EAS20029
REAR WHEEL

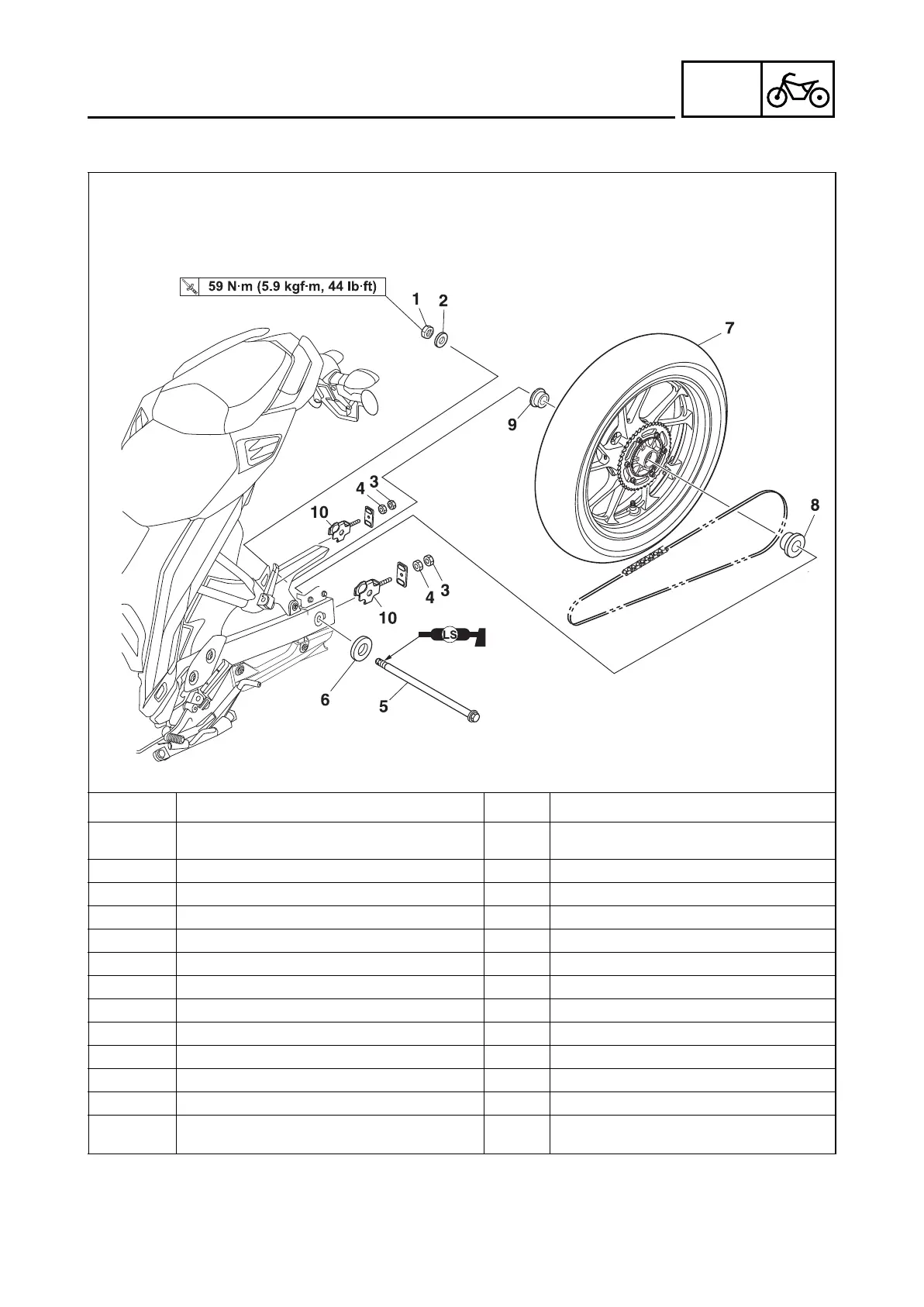

Removing the rear wheel
Order Job/Parts to remove Q’ty Remarks
Mud protector
Refer to “GENERAL CHASSIS” in base ser-
vice manual B97-F8197-E0 on page 4-1.
Rear wheel speed sensor
1 Axle nut 1
2Washer 1
3 Drive chain adjusting locknut 2 Loosen.
4 Drive chain adjusting nut 2 Loosen.
5 Rear wheel axle 1
6Washer 1
7 Rear wheel 1
8 Collar sprocket axle 1
9 Collar wheel 1
10 Drive chain puller 2
For installation, reverse the removal proce-
dure.
