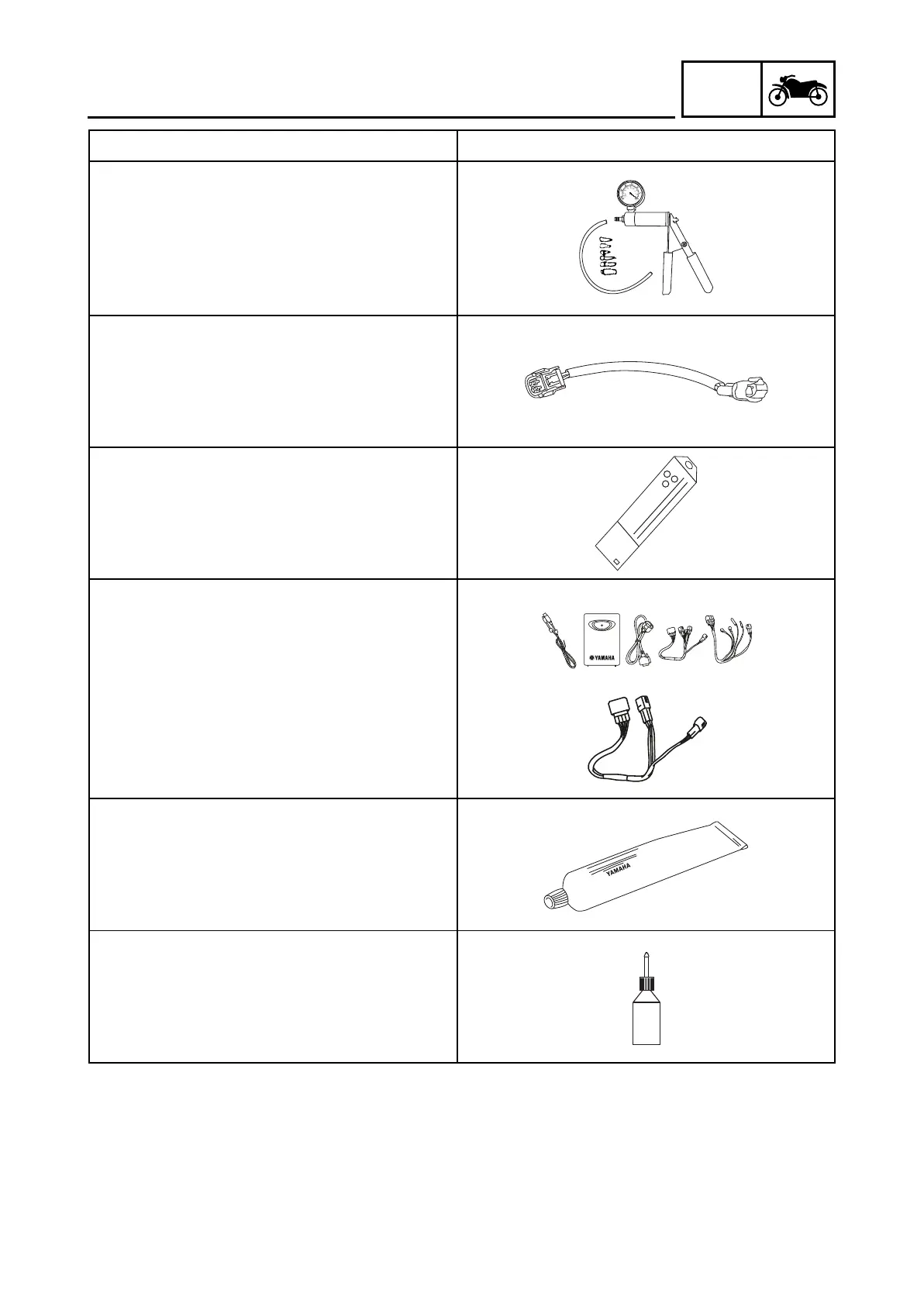

SPECIAL TOOLS
Vacuum/pressure pump gauge set
INS-015
(90890-03094)
This instrument is used to offer the vacuum to
air induction system for checking.
Injector Coupler
INS-
017
90890-03210
This tool is used to connect injector to injector
cleaner.
Yamaha diagnostic tool
INS-
018
(90890-03267)
This tool is used to diagnose electrical fault in
advance fuel injection system.
Yamaha diagnostic tool (Ver.3)
INS-
019
(90890-03264)
This tool is used to diagnose electrical fault in
advance fuel injection system.
Sub harness 3
(90890-03266)
This tool is used to connect FI YDT coupler to
adapter interface (BS-VI models).
Yamaha bond No.1215B
TB-121
5B
(90890-85505)
This bond is used to seal two mating surfaces
(e.g. crankcase mating surfaces).
Loctite
Thre
e bond 1322
Tool name / Tool no. Illustration
