CABLE ROUTING

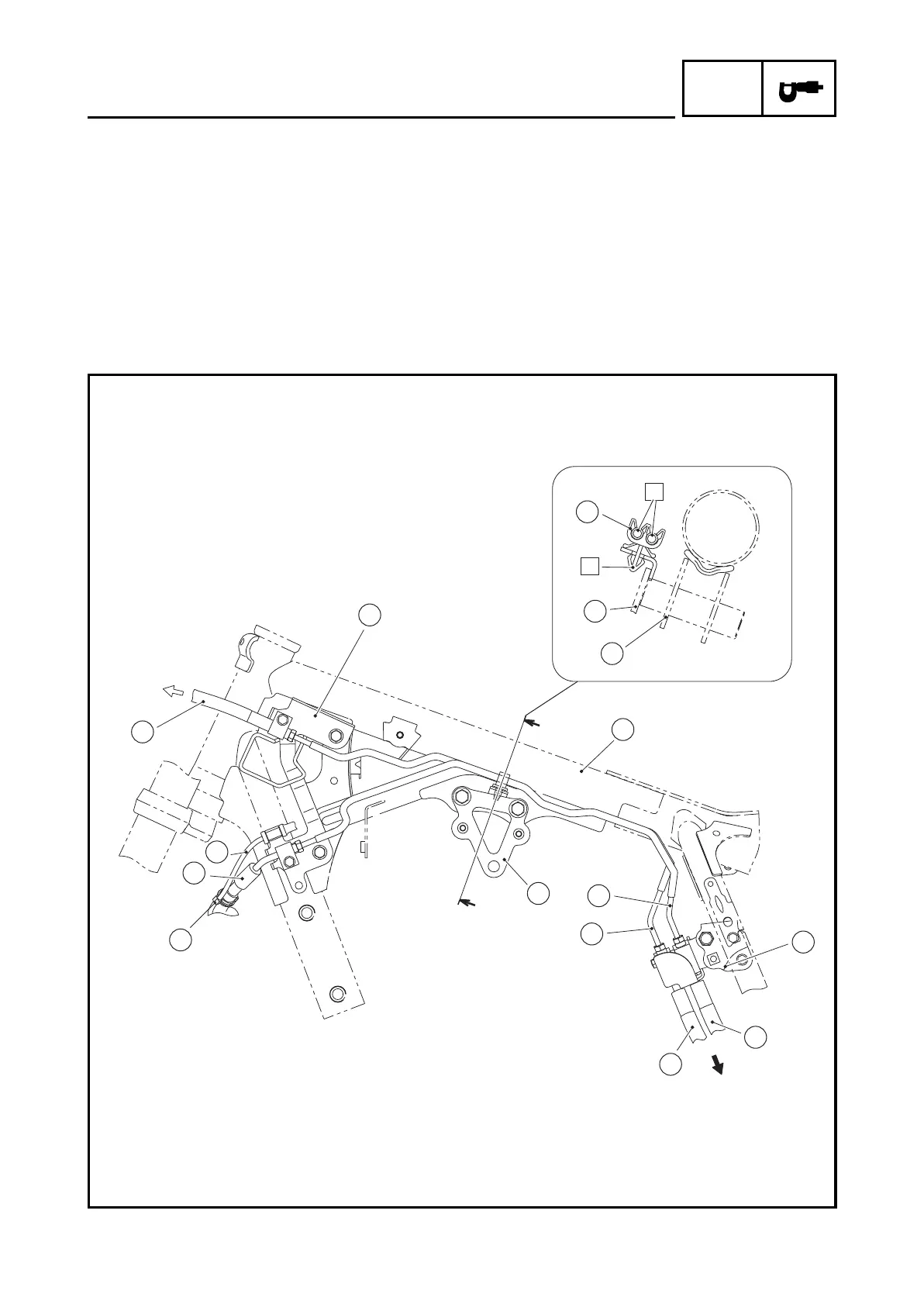

CABLE ROUTING - ABS front brake (Left view)
1 Front brake hose (ABS hydraulic unit to front
brake master cylinder)
2 F
ront brake hose bracket
3 Fr
ame
4 Eng
ine stay
5 Br
ake hose bracket
6 F
ront brake hose (ABS hydraulic unit to front
brake caliper)
7 Cl
amp
8 F
ront wheel speed sensor lead
È Clamp shall be inserted in the hole of engine
st
ay.
É
Both front brake hoses should properly set to
clamp.
